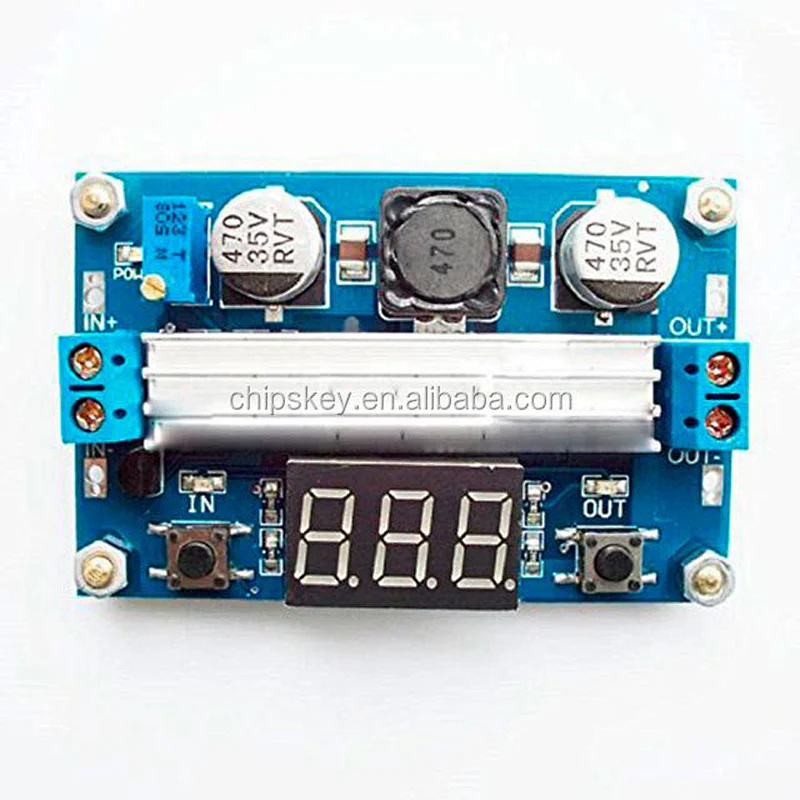

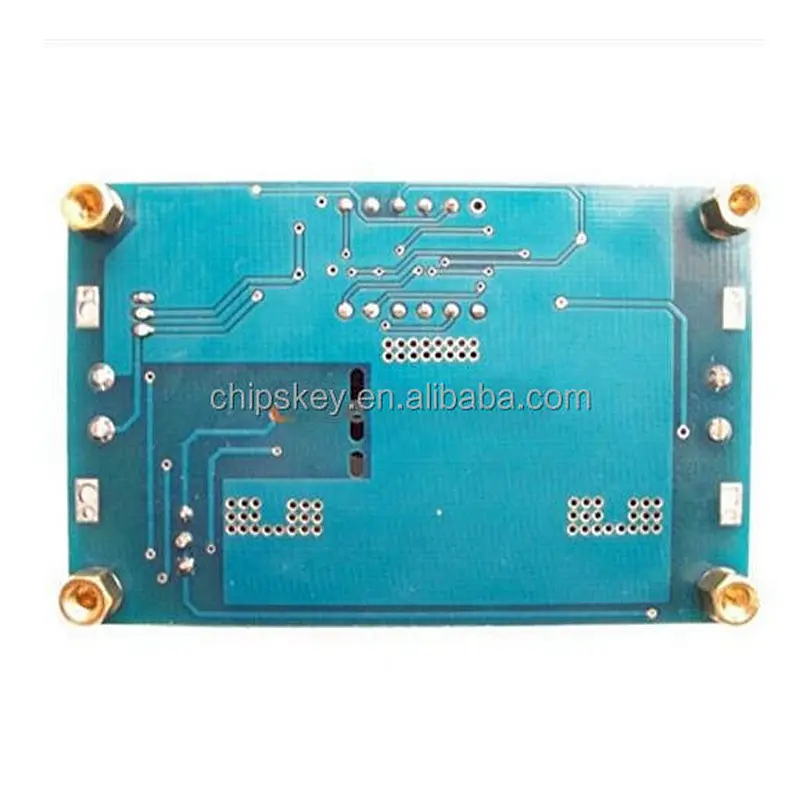

LTC1871 100W 3-35V 12V to 3.5-35V Boost Step-up Module LED Voltmeter+Heat Sink

• Model Number:28288
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• Color:blue
• Weight:0.0
• SKU:28288

LTC1871 100W 3-35V 12V to 3.5-35V Boost Step-up Module LED Voltmeter+Heat Sink

Performance parameters:

1, the input voltage: 3 ~ 35V DC (Note: the input voltage is less than 4V, onboard voltage meter failure)

2, the input current: 9A (max)

3, the output voltage: 3.5 ~ 35V DC (this board is the boost plate, the output voltage to> = input voltage)

4, the output current: 6A (max)

5, the output power: 75W, (when the input and output voltage is greater than 20V can reach 128W)

6, conversion efficiency: 96.7% (highest)

7, the output ripple: 24mV (TYP)

8, onboard voltage meter range: 4 ~ 40V, error + -0.1V

9, short circuit protection: Yes (limit current 14A). Warm Tip: In the access to high-power load, due to just start the impact current is very limited to self-locking protection, it is recommended to boot, and then access the load.

10, input reverse polarity protection: no (if necessary, enter the string into the high current diode).

11, length x width x height = 67 * 43 * 12MM (excluding copper pillars)

Third, the scope of application:

1, DIY a power supply, the input can be 5V, the output can be 5-35V adjustable.

2, for your electronic equipment power supply, you can set the output value according to your system voltage. Such as 3.7V lithium battery 5V power supply, 7.4V or 12VL 19 to the notebook power supply.

3, as a car power supply for your laptop, PDA or a variety of digital products.
