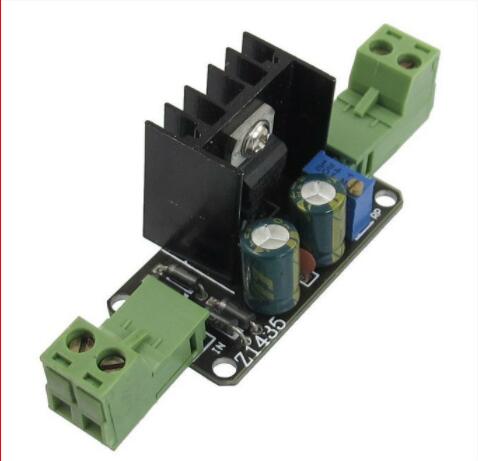

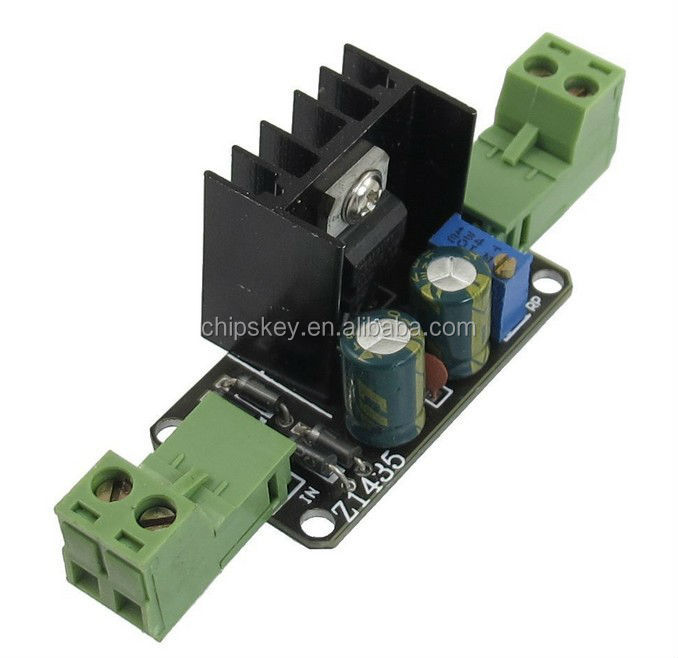

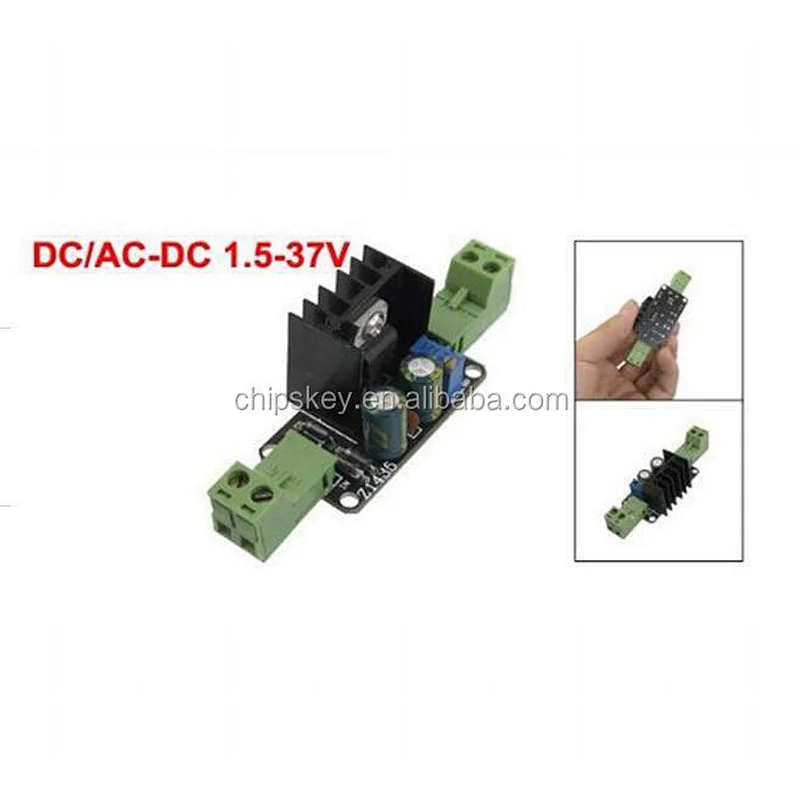

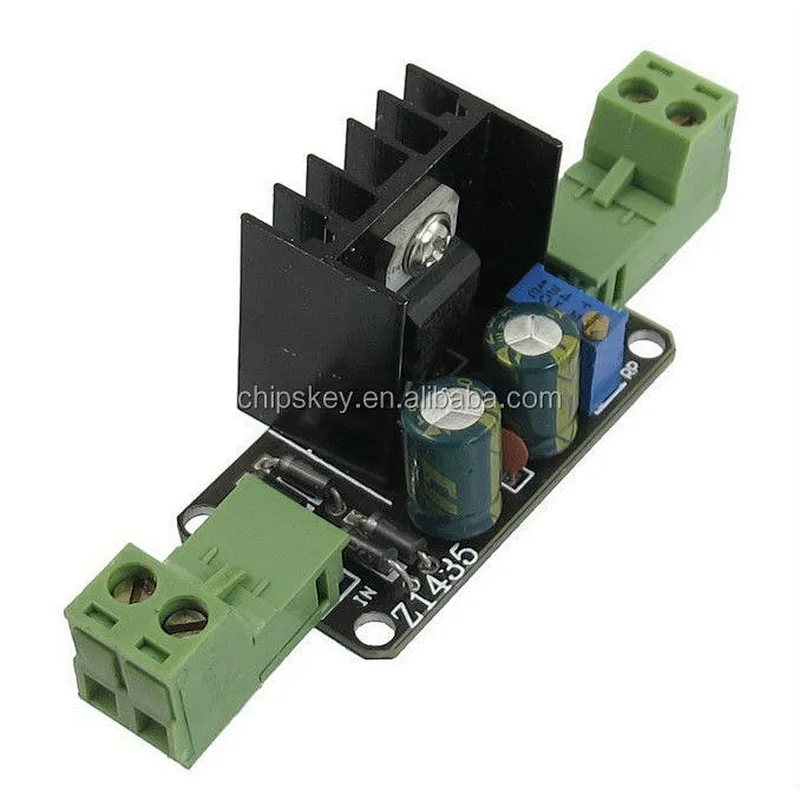

LM317 voltage adjustable module; voltage adjustable module 1.5V ~ 37V can be adjusted

• Model Number:2087
• Type:Other
• Place of Origin:China
• Part number:2087
• Brand:Chipskey
• Category:Module

LM317 voltage adjustable module; voltage adjustable module 1.5V ~ 37V can be adjusted

A, size: 77mmX28mmX30mm
B, the main chip: LM317
C, operating voltage: 3V ~ 37V
D, the maximum operating current of 1A
E, features:
1, can be accessed by the AC voltage of 3V ~ 37V
2, which can be accessed DC 3V ~ 37V voltage
3, can be connected directly to the output end of the AC adapter
4, the output voltage can be adjusted [Vout <(1.25 ~ Vin)]
5, there are four mounting holes, can be fixed to the hole diameter of 3mm
6, the fins can be replaced
