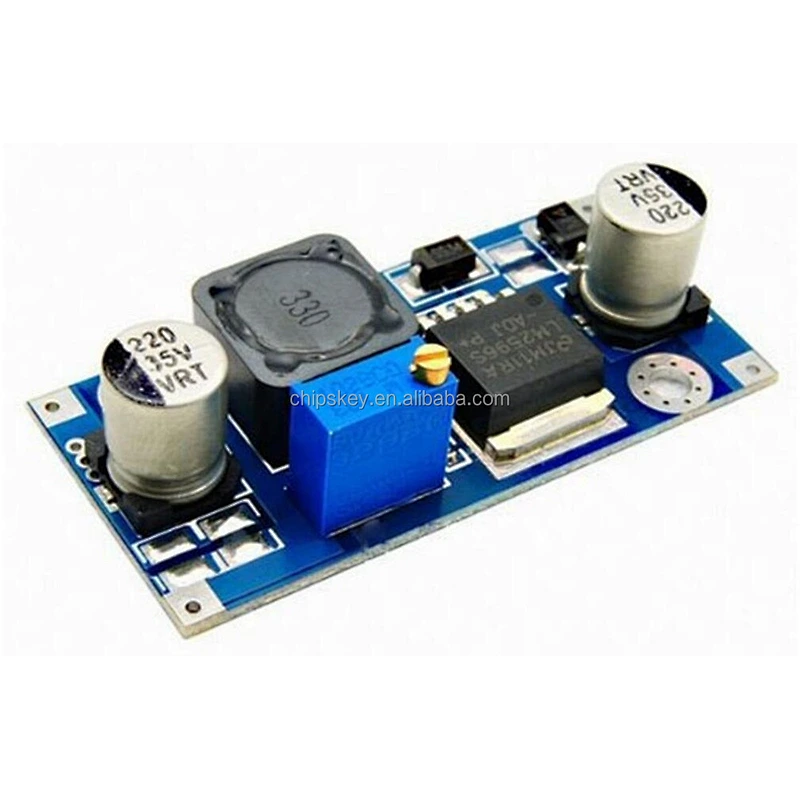

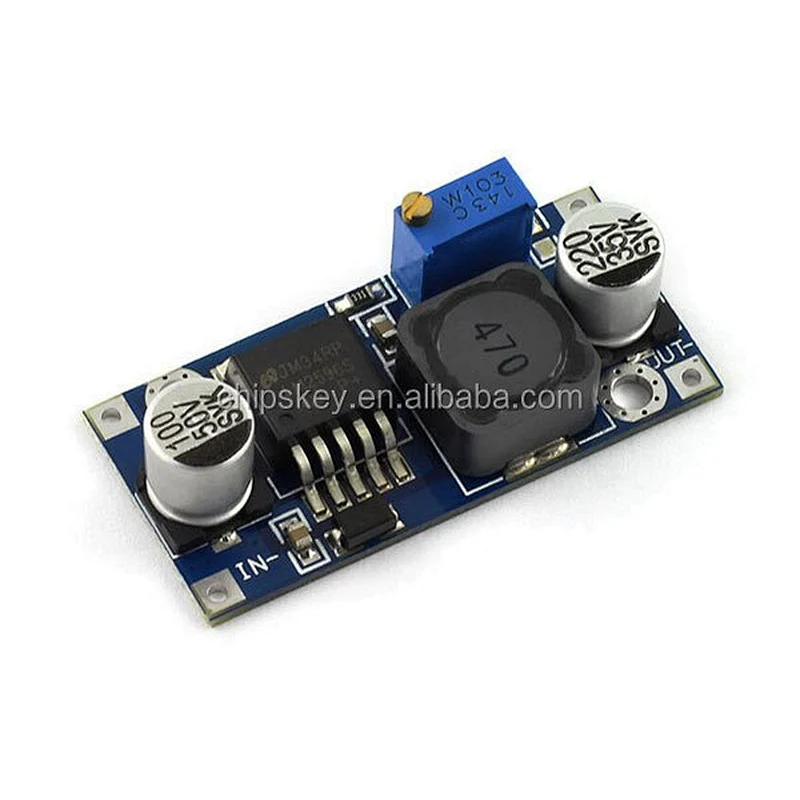

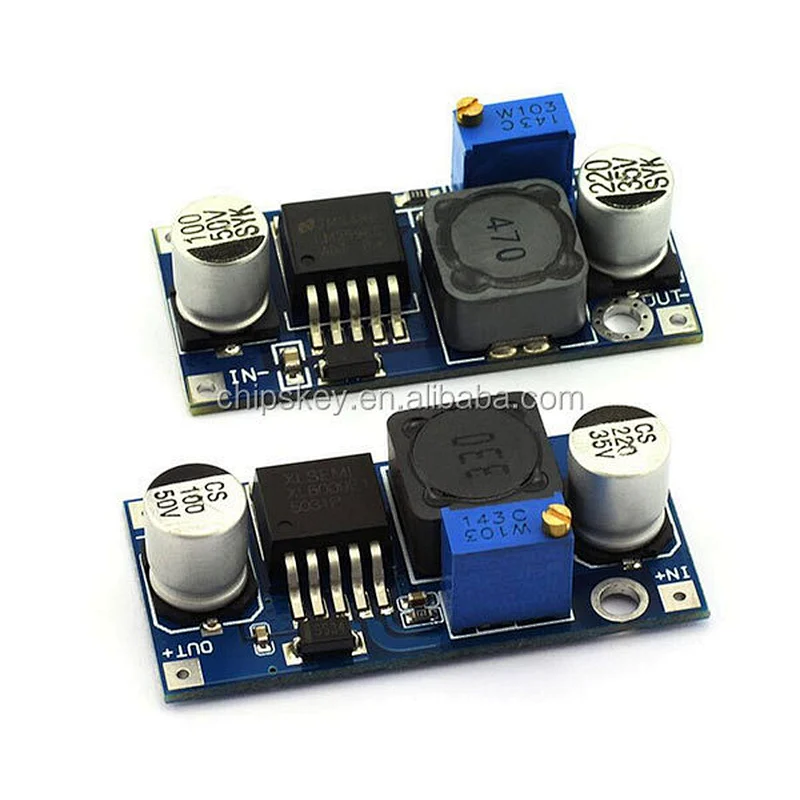

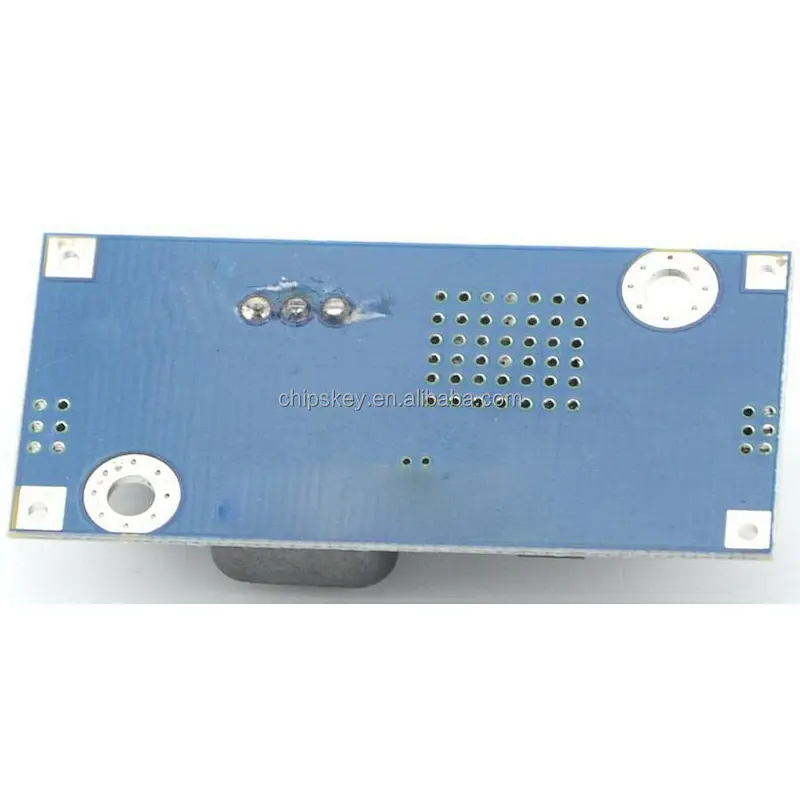

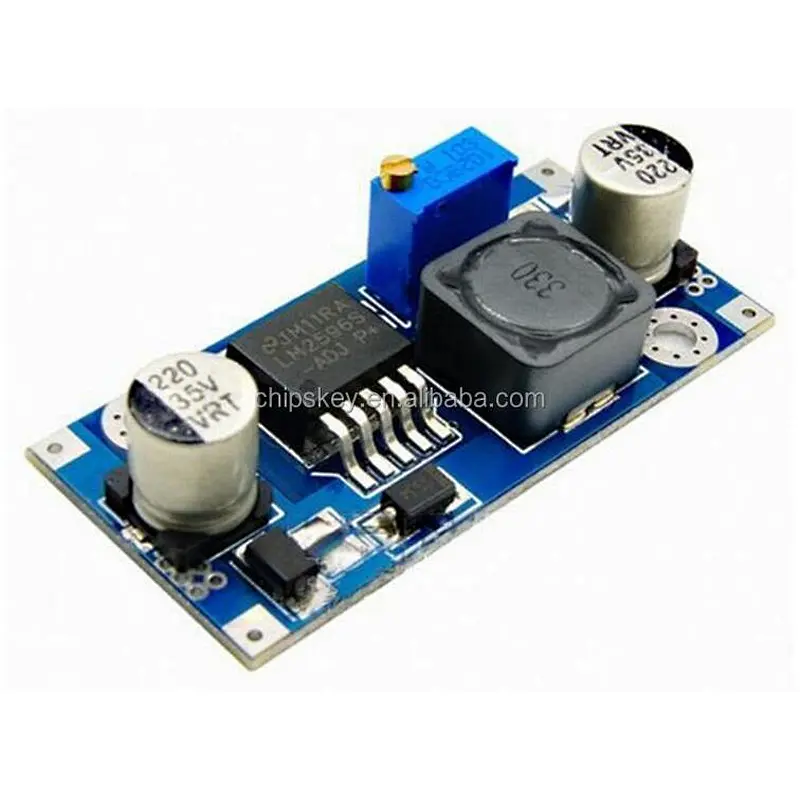

LM2596S; small DC-DC adjustable power supply; a step-down module; the positioning hole; indicating lamp

• Model Number:1073
• Type:Power Management Development Boards and Kits, Drive IC
• Place of Origin:China, US
• Brand:Chipskey
• Part number:1073
• Category:Electronic Module
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Packaging:Reel Tray Tube

LM2596S; small DC-DC adjustable power supply; a step-down module; the positioning hole; indicating lamp

Product description

Input Voltage: 3V ~ 40V

The Output Voltage: 1.5V ~ 35V

Output Current: 3A( Max)

Conversion Efficiency: 92%( Highest )

Output Ripple: <30mV

Switching Frequency: 150KHz

Working Temperature: -45℃ ~ +85℃

Size: 43 * 21 * 14mm/1.69 * 0.83 * 0.55in ( Length*Width*Height )
Module properties: non-isolated step-down module

Warm notice: IN-( negative input ), IN + ( positive input ), OUT-( negative output ), OUT + ( positive output )
Make sure you pick the correct port, or it may cause damage to the module.
And this is a step-down module, the input voltage must higher than the output voltage
