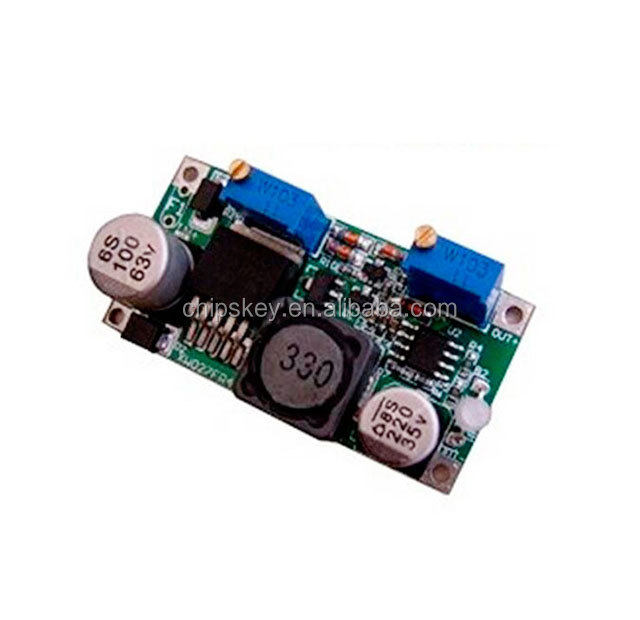

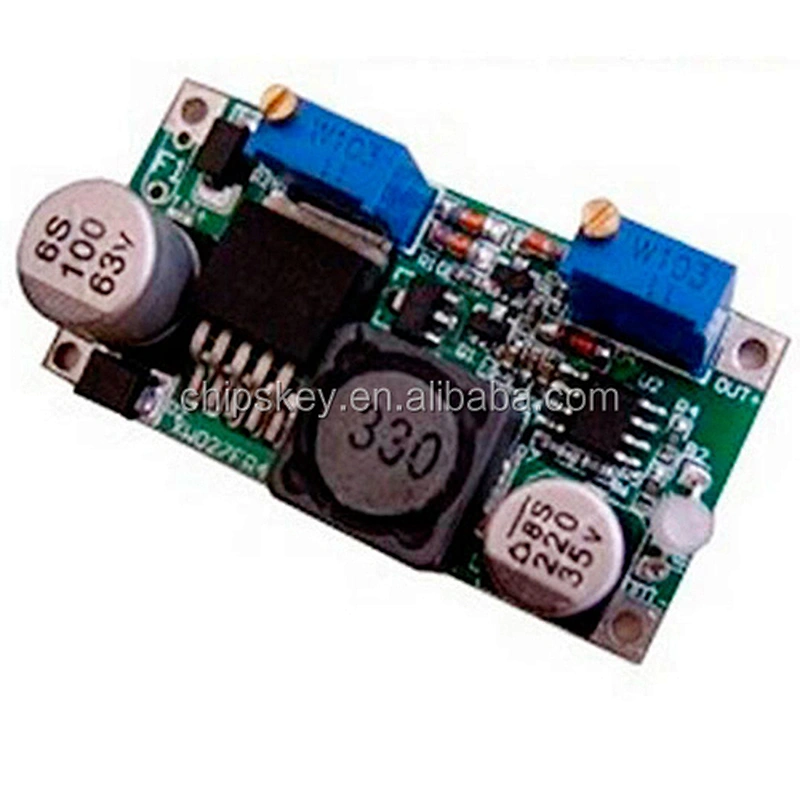

LM2596HVS-AD Power Supply Step-Down Module

- The regulated power supply, only connect the input port of the module to the car cigarette lighter for power supply, it can adjust potentiometer, the output voltage can be 4.5V~45V, allows your adjustment (because it is step-down module, the output voltage is 1.5V or above lower than that of input)
- Suitable for mobile phone, MP3, MP4, PSP charging and many other equipment supply
- Input mode: IN+ input plus, IN- input minus
- Output mode: OUT+ output plus, OUT- output minus
- Adjust way: first right after the input power supply (4.5~45V) and using a multimeter to monitoring output voltage and adjustable potentiometer (usually on time turn booster, inverse time turn decompression), output voltage (3~35 V)
- Continuous adjustable
- Min. voltage: 1.5V
- Input power: 2A, 12V to 5V 3A (max.), 15W
- Conversion efficiency: the highest 92% (the higher output voltage, the higher efficiency)
- Static power: only about 6mA
- Connection mode: Welding
- Working temperature: Technical grade (-40'C~85'C), load regulation: +/- 1%, voltage regulation: +/- 0.5%
- Packing list:
- 1 x Step-down module
