- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Model Number:13d128
- SKU:13D128
- Stock:In Stock ,Can Ship out Immedicate

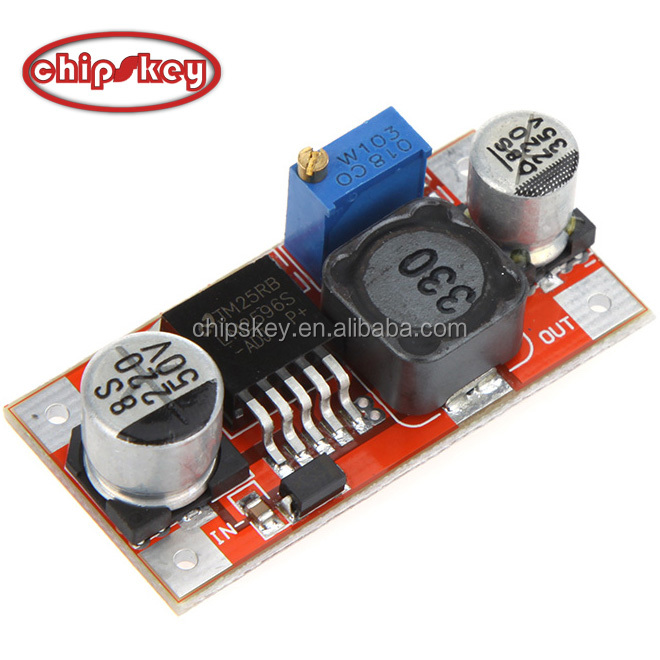

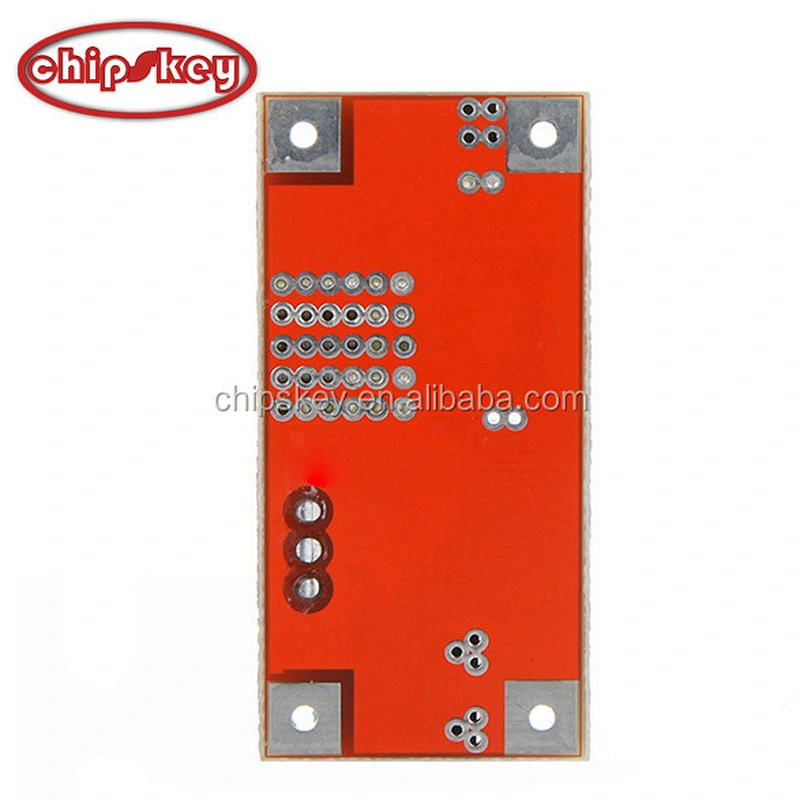

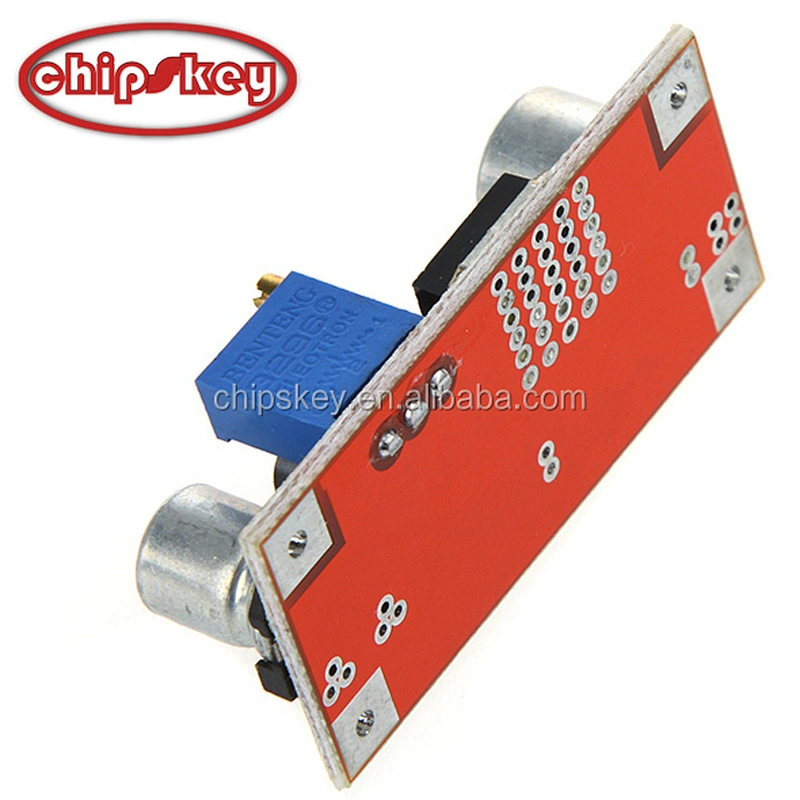

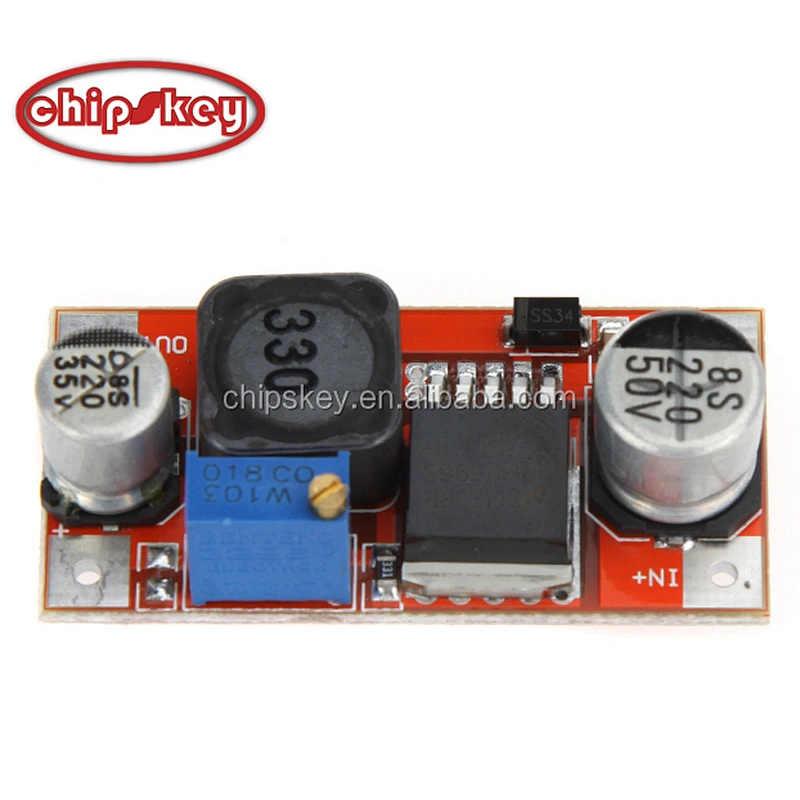

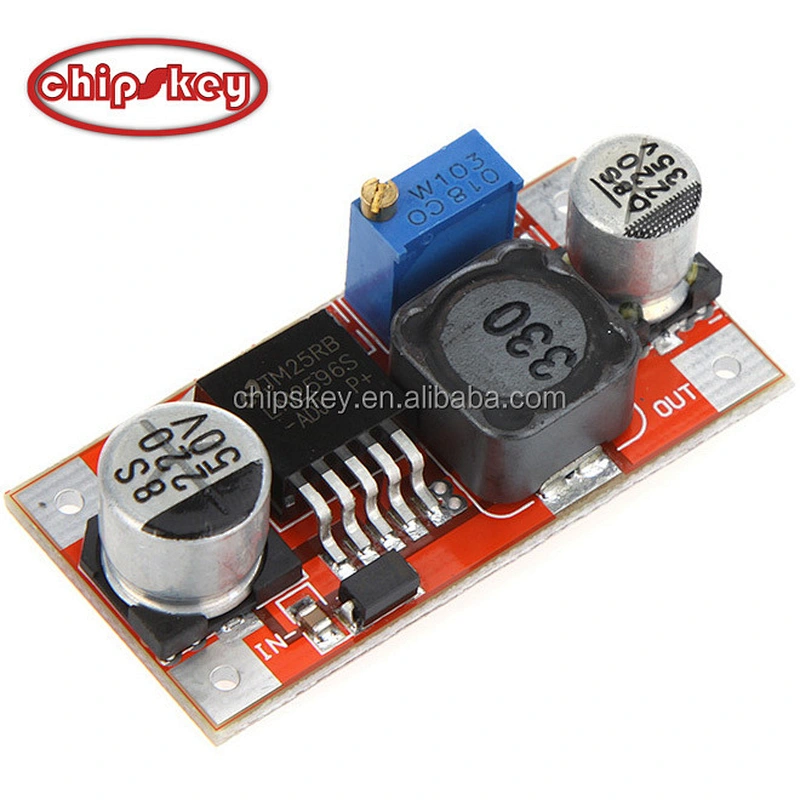

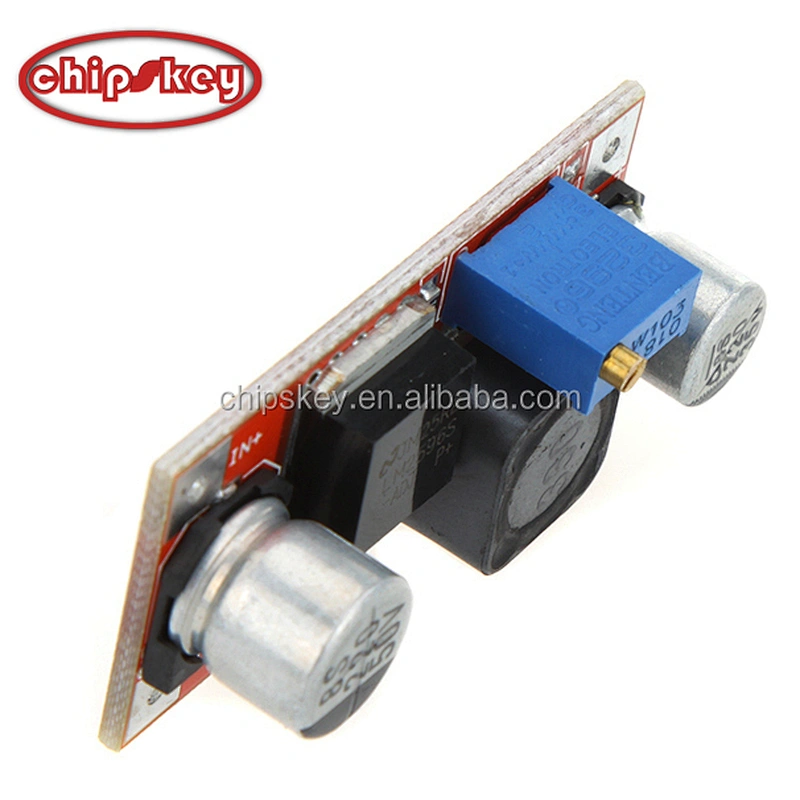

LM2596HV Power Supply Step-Down Module Input 60V
Specifications:
1.Module Properties: non-isolated step-down module (buck)
2.Rectifier: Non-synchronous rectification
3.Input voltage: 4.5-60 V,
4.Output voltage: (3-35 V) continuous adjustable (Suggest no-load debugging)
5.Output current: rated current 2A;3A(MAX) (need to plug heat sink), if the output power is higher than 15 W, advise to add the heat sink
6.Conversion efficiency:highest 92% (higher output voltage,higher efficiency)
7.Static power consumption:about 6mA
8.The most low-voltage difference: 1.5 V, because of it is buck module,to ensure stable output, please keep minimum 1.5 V differential pressure.
9.Load regulation:±1%
10.Voltage regulation:±0.5%
11.Dynamic response speed:5%
12.Short circuit protection: limit current,overheating protection but recovery automatically
13.Output ripple: enter 12 V, output 5 V 3 A 15 mV (MAX)
Input 24 V, output 12 V 3 A 40 mV (MAX)
Application:
1.Adjustable Output Car Power
2.Boost Charger
3.Power for your electronic equipment
4.Solar battery charger for electric vehicles
5.DIY Power Supply
