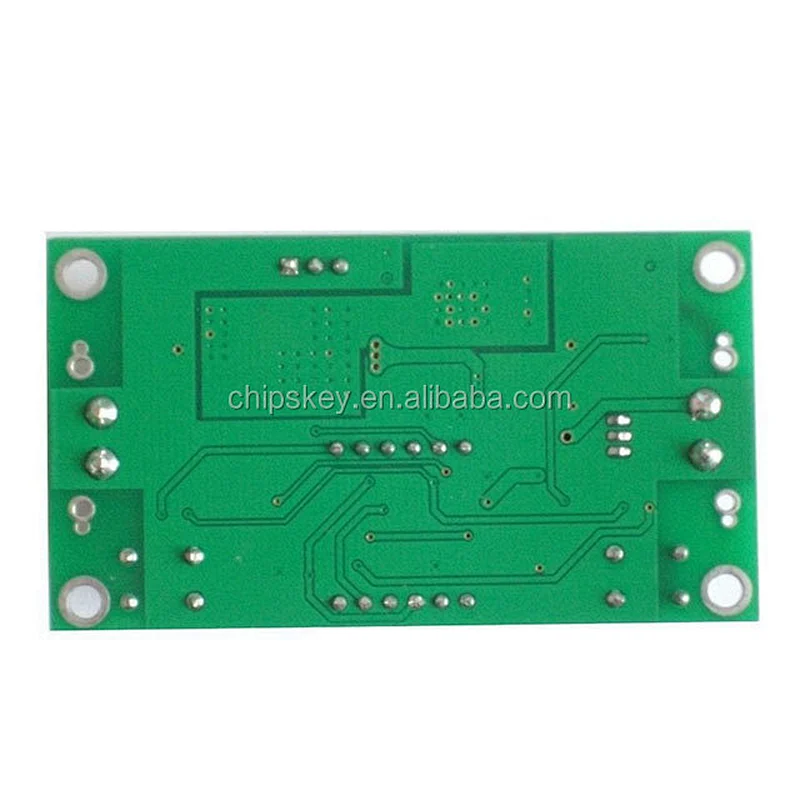

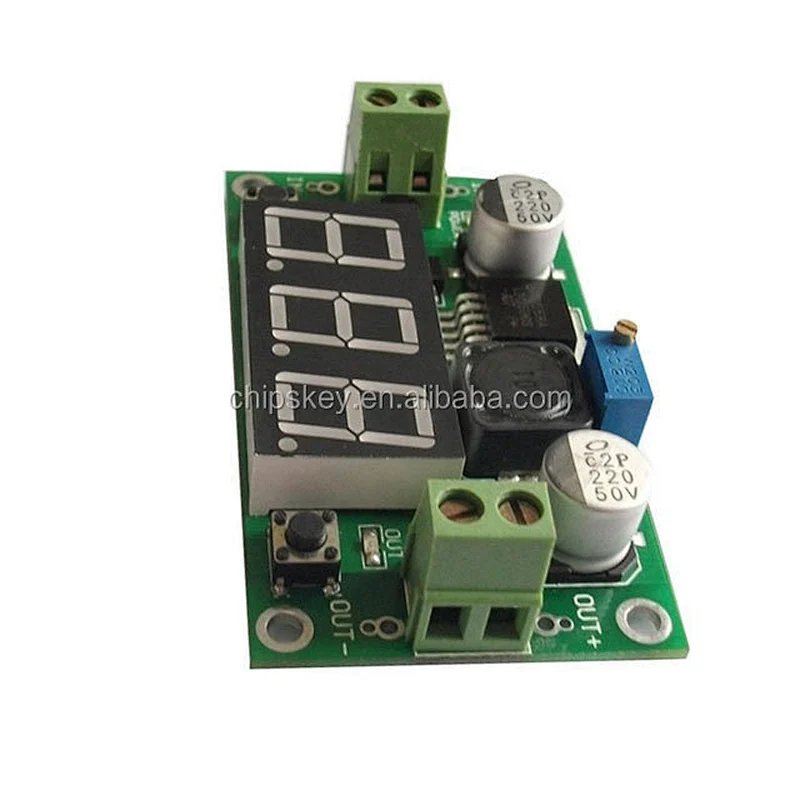

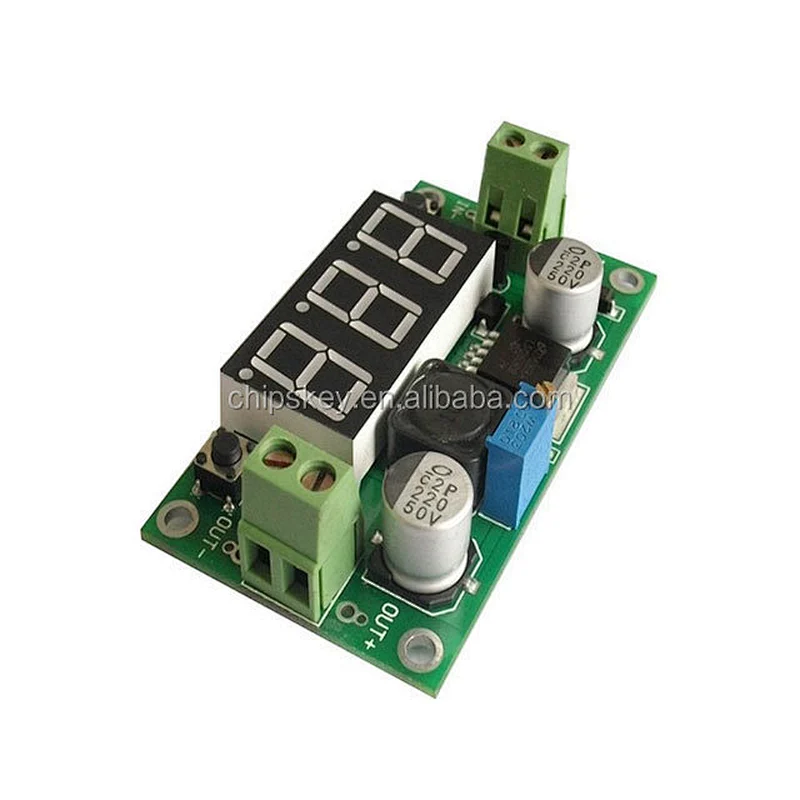

LM2596 Step-Down Voltage Regulator Module Board With LED Display

• Model Number:19J079
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• SKU:19J079
• Stock:In Stock ,Can Ship out Immedicate

LM2596 Step-Down Voltage Regulator Module Board With LED Display

Get free copper base and four fixed screws

    With power indicator light

    With a voltage meter display, using advanced microprocessor voltmeter error ± 0.05V, range 0 ~ 40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is 4V above)

    Touch the button to switch on the right measuring input or output voltage, and has a light show which is being measured voltages, and save the settings, and then turn off even

    Voltmeter can be turned off when not needed, touch the left button can be easily achieved

    Band terminals, no iron can also be easy to use, and retention wire terminal points

    Input voltage 4.0 ~ 40V (input voltage must be higher than the output voltage of 1.5v or more.)

    Adjustable output voltage range of 1.25V ~ 37V continuously adjustable (1.5V input voltage must be higher than the output voltage)

    The maximum output current up to 3A, normal and stable working current 2A

    Using internal oscillation frequency 150KHz, belongs to the second generation of switching voltage regulator, power consumption and high efficiency.

    Overheating protection and short circuit protection
