L9110S DC Stepper L9110 Two Motor Driver H-Bridge 2.5-12v 800mA TTL/CMOS

• Model Number:6024
• Type:Other
• Place of Origin:China
• Part number:6024
• Brand:chipskey
• Category:Module

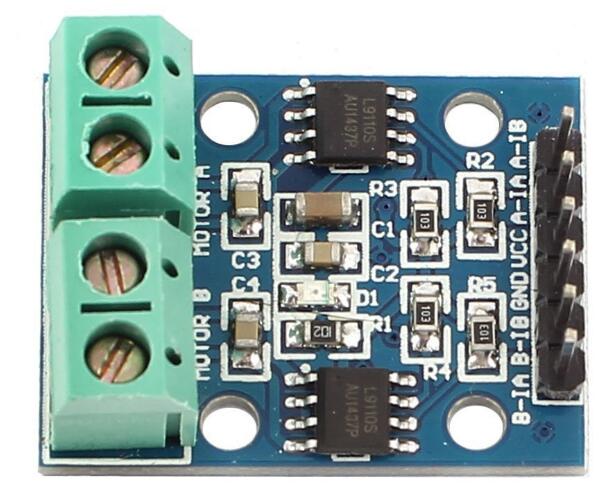

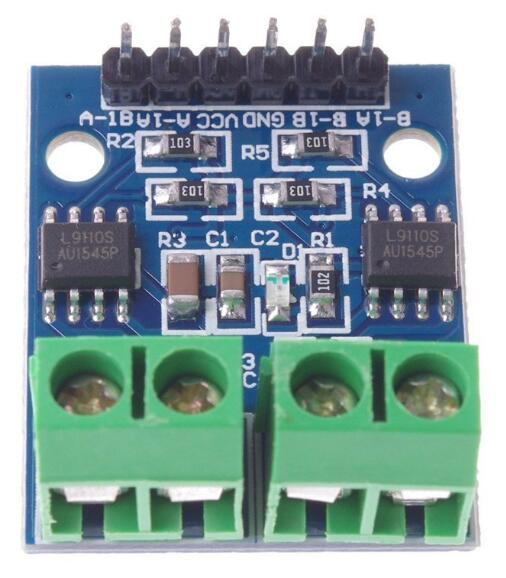

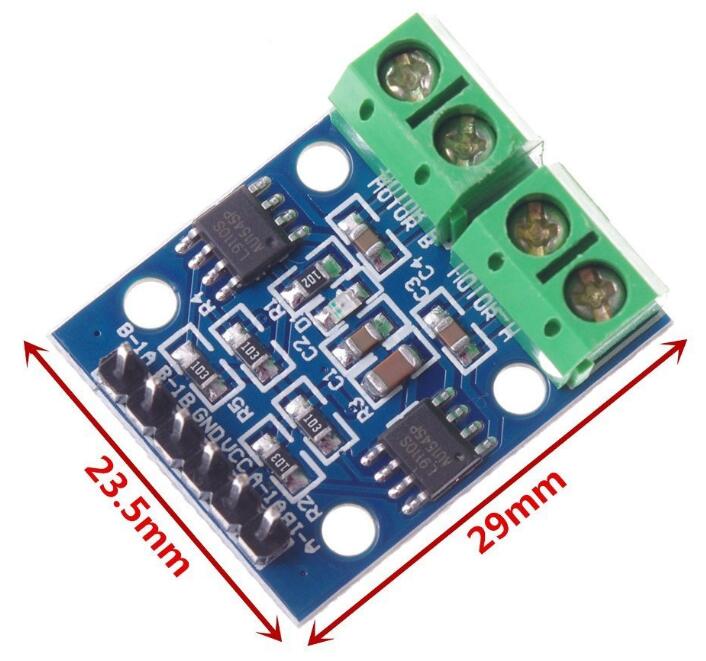

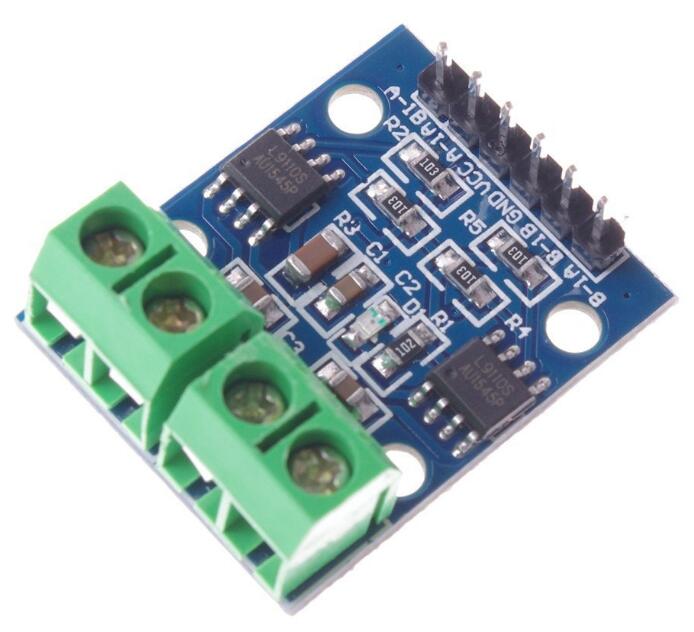

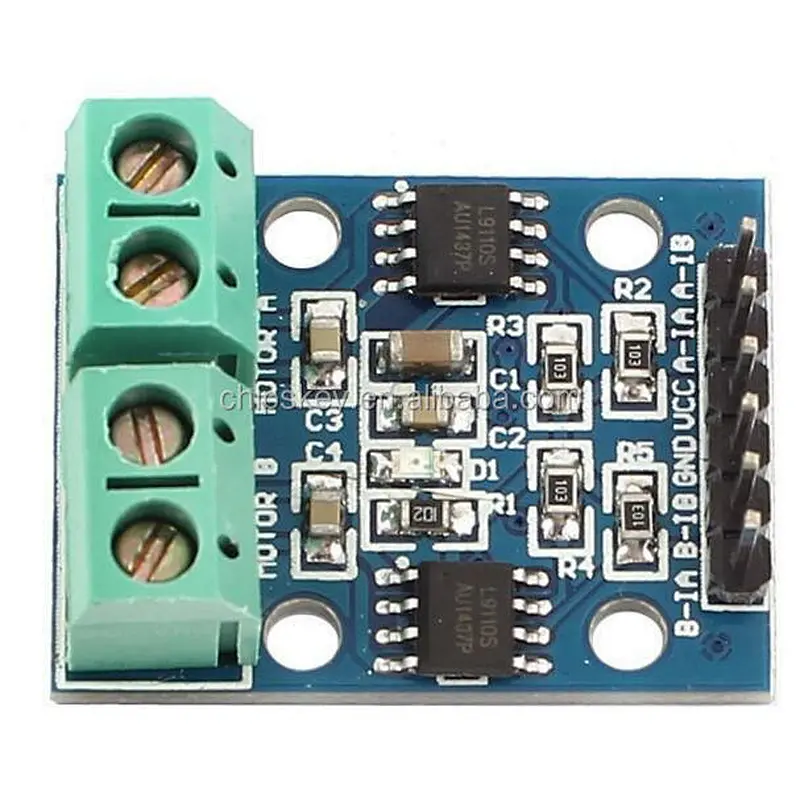

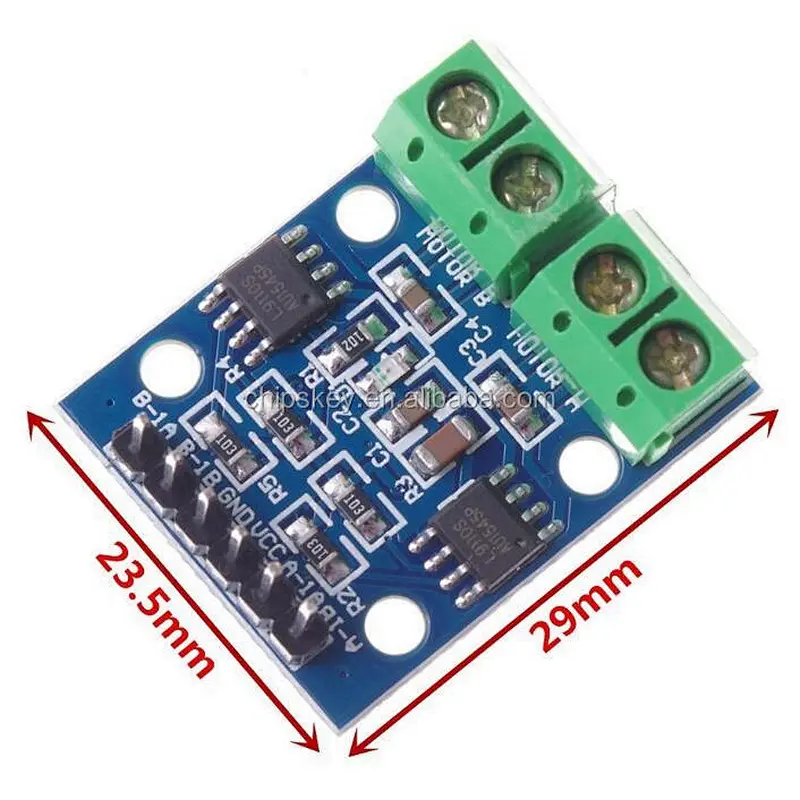

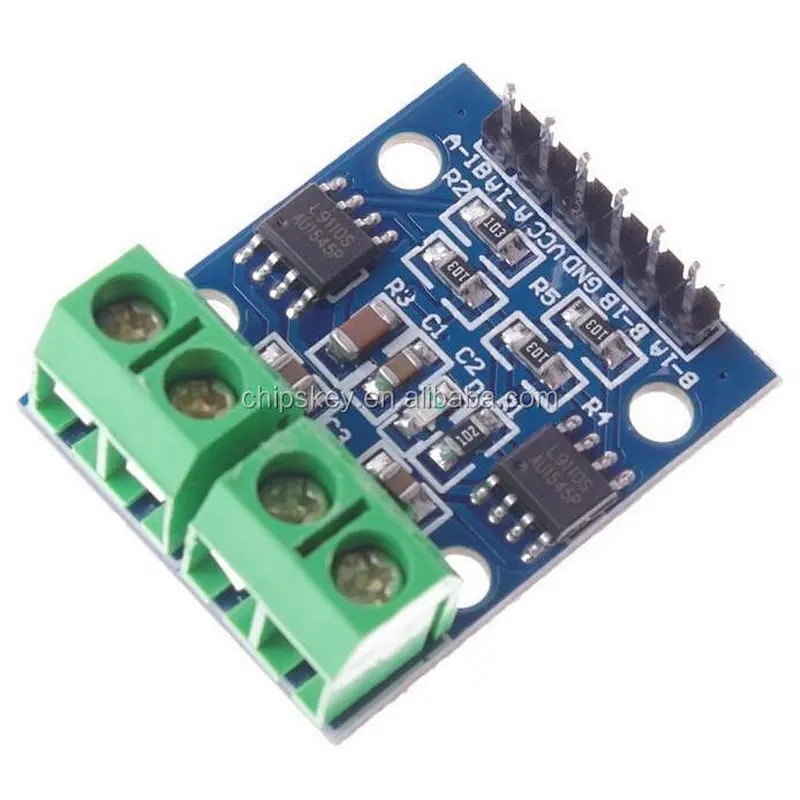

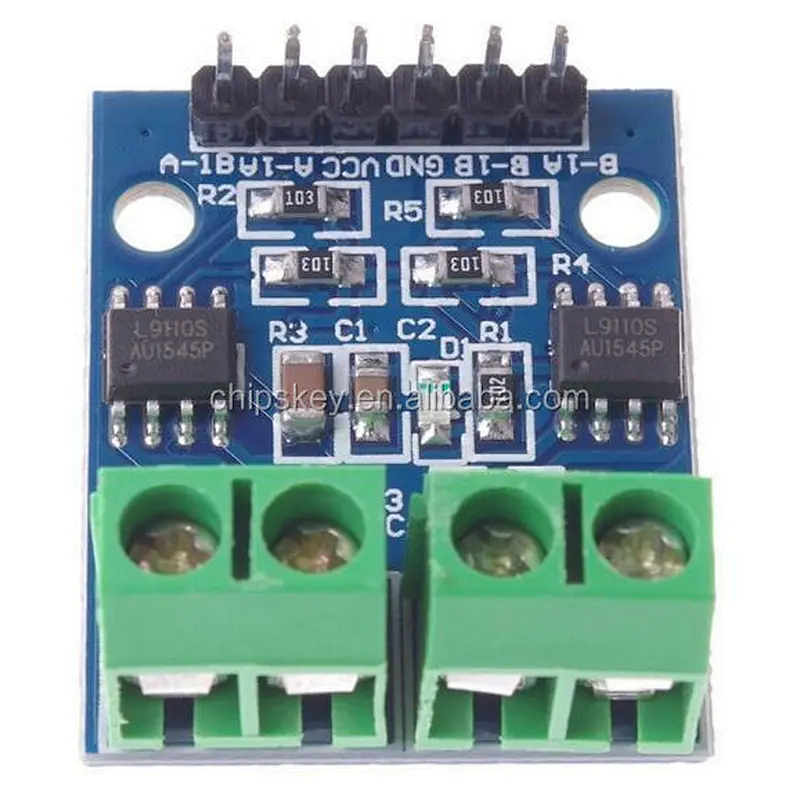

L9110S DC motor / stepper motor driver board, motor driver board, H bridge motor driver

"Features:
1. Low static current work;
2. Wide range of power supply: 2.5V to 12V.
3. Each channel has a continuous output current 800 ma ability;
4. The lower saturation voltage;
5. TTL/CMOS compatible output level, can be connected directly to the CPU
6. Output with clamping diodes, apply to the perceptual load;
7. Control and drive integration with IC;
8. Have the pin high voltage protection function;
9. Working temperature: 0 degree to 80 degree
10. Module can drive two DC motor or one 4-wire-2-phase stepper motors
11. Onboard two L9110S motor drive control chips
"
