Isolated Switching Power Supply Module DC 9V 500m

Model NO.: 9065
Minimum order quantity: 1 piece

Quantity:

Product Description

Model Number:9065
Type:Power Management Development Boards and Kits
Place of Origin:China, CN
Category:Module
Lead Free Status:Lead free / RoHS Compliant
Condition:Brand New With Original Manufacturer
Maximum Operating Temperature:-40C ~ 125C
Warranty:360days
Operating Temperature:-40C ~ 125C
Dissipation Power:1W-6W
Application:Watch
Supply Voltage:1.5V-6V

Product Description

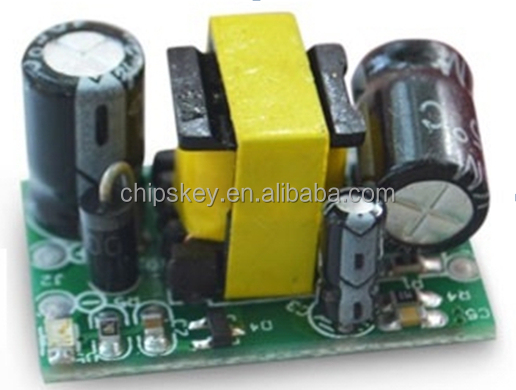

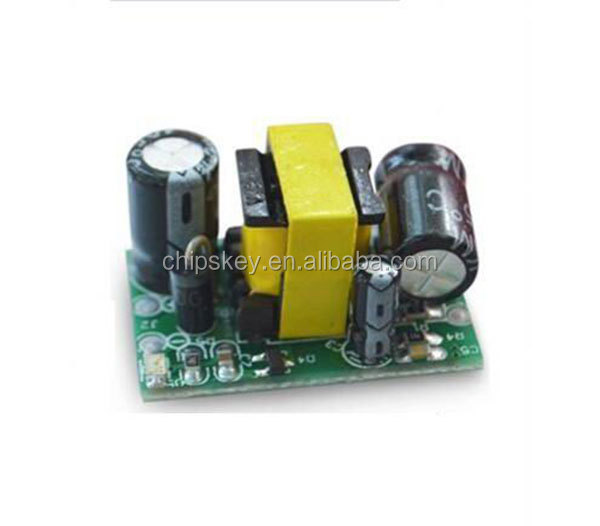

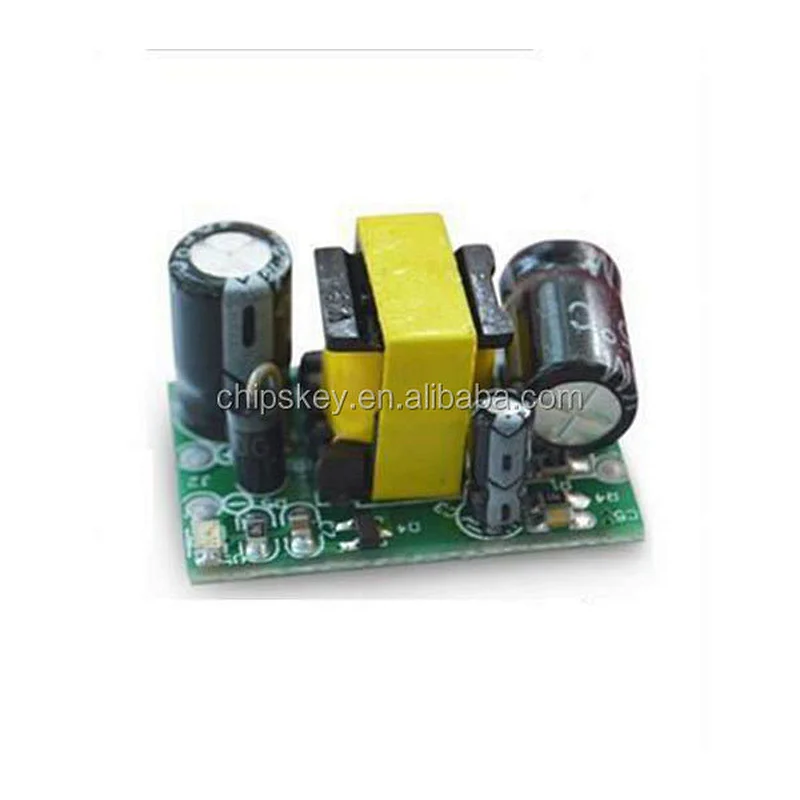

Isolated Switching Power Supply Module DC 9V 500mA

Features and parameters introduced

The power supply is isolated industrial power modules, with a temperature protection, overcurrent and short circuit full protection, high voltage isolation, AC85 ~ 265V wide voltage input, 431 DC9V output voltage accuracy, compact, stable performance, cost-effective

Input voltage AC 85 ~ 265v 50/60HZ

Output voltage DC9V (± 0.1V)

Output current 500mA

Power 5W

Project	Unit	Min	Typical values	Max	Test Conditions
Operating Temperature	°C	-20		60
Relative Humidity	%RH	40		90	No cooling

2 Technical requirements
2.1 Input Characteristics

Project	Unit	Min	Typical values	Max	Test Conditions
Input Voltage Range	V ac	85	110/220	265	Under full load condition
Input Current	A	0.0273(AC110V) 0.014(AC220V)			Under full load condition
Input surge current	A	20			Under full load condition

2.2 Output characteristics
2.2.1 Output regulation characteristics

output voltage	Minimum current	Maximum current	Peak current	output voltage range	Ripple
+12V	0A	500mA	550mA	8.80~9.1V	110mV

2.2.2 Other output characteristics

Project	Unit	Min	Typical values	Max	Test Conditions
Output Power	W	0	4	5	DC output power
Output efficiency	%		80		Rated load
Overshoot switch	%			10
Output rise time	mS			100

2.3 Protection

Project	Unit	Yes / No	Min	Typical values	Max	Recovery characteristics
Power output over Rate Protection		Yes				Lock, after re-starting recovery
Short circuit protection		Yes				Automatic recovery after the fault is removed
Temperature protection		Yes				Lock, after re-starting recovery
Overcurrent		Yes				Lock, after re-starting recovery
