- Model Number:30008
- Type:Sensor Development Boards and Kits
- Place of Origin:China
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Starter KIT 1602 LCD Servo Motor Dot Matrix, Breadboard and modules
- SKU:30008
- Prand:chipskey

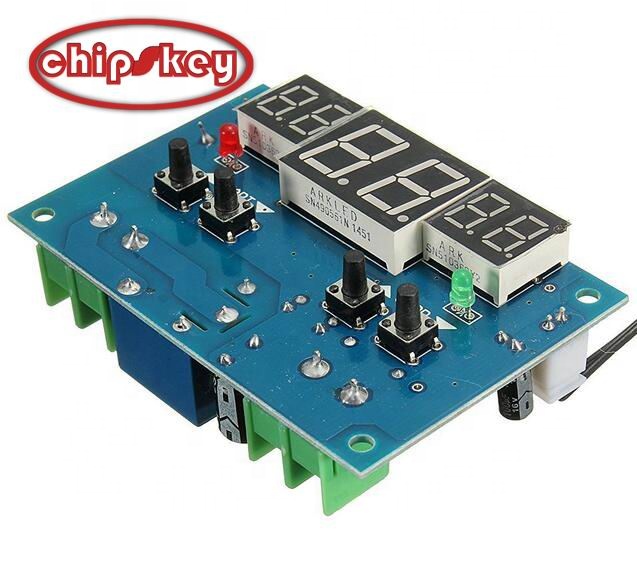

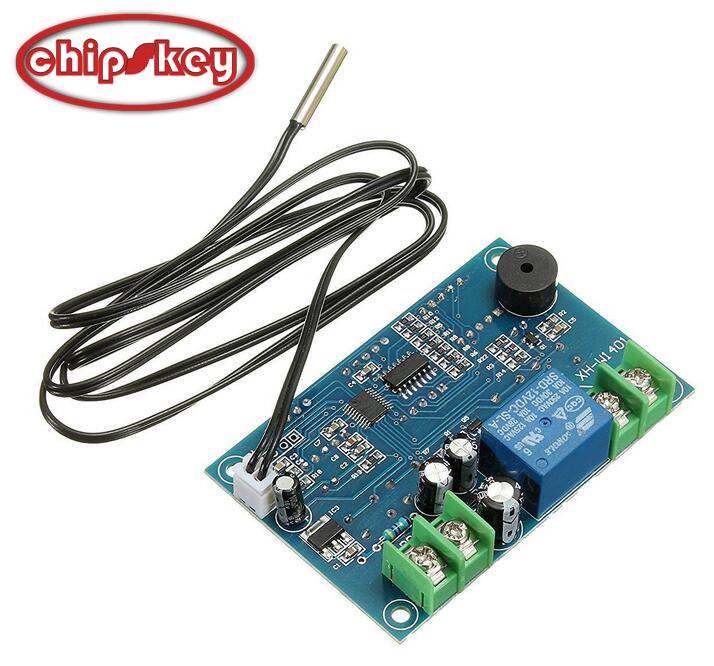

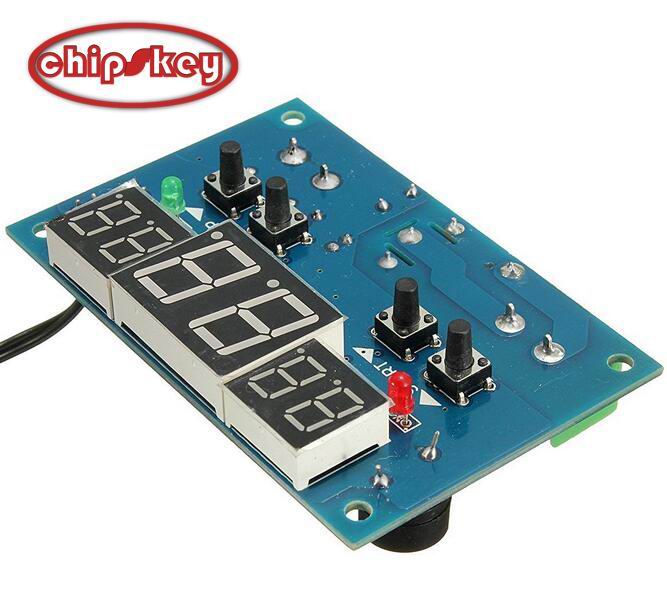

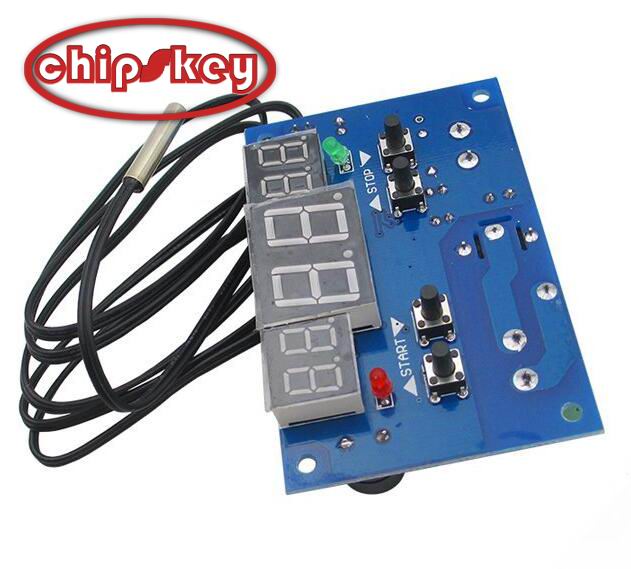

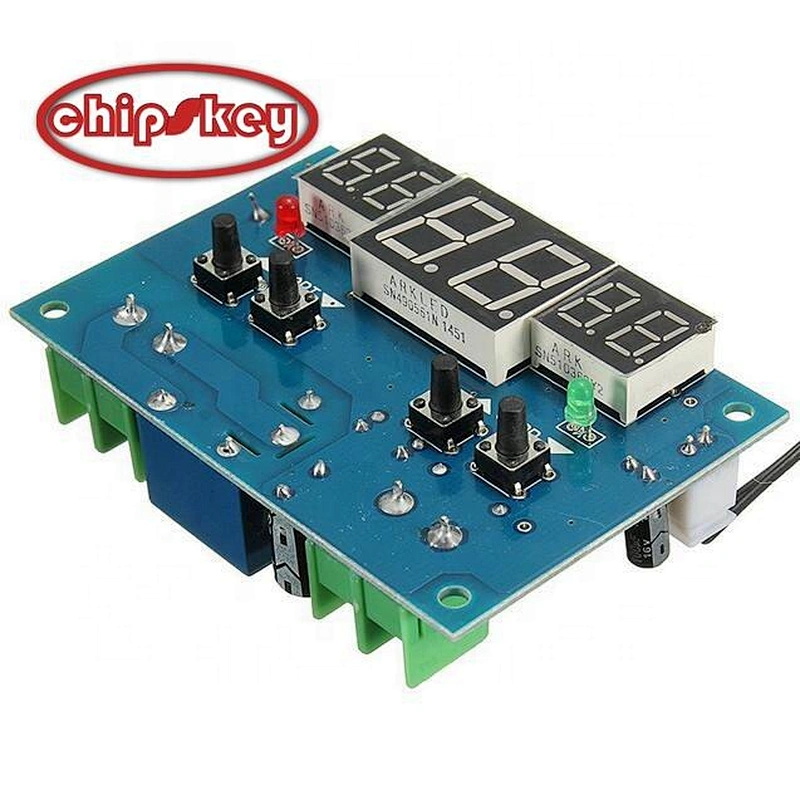

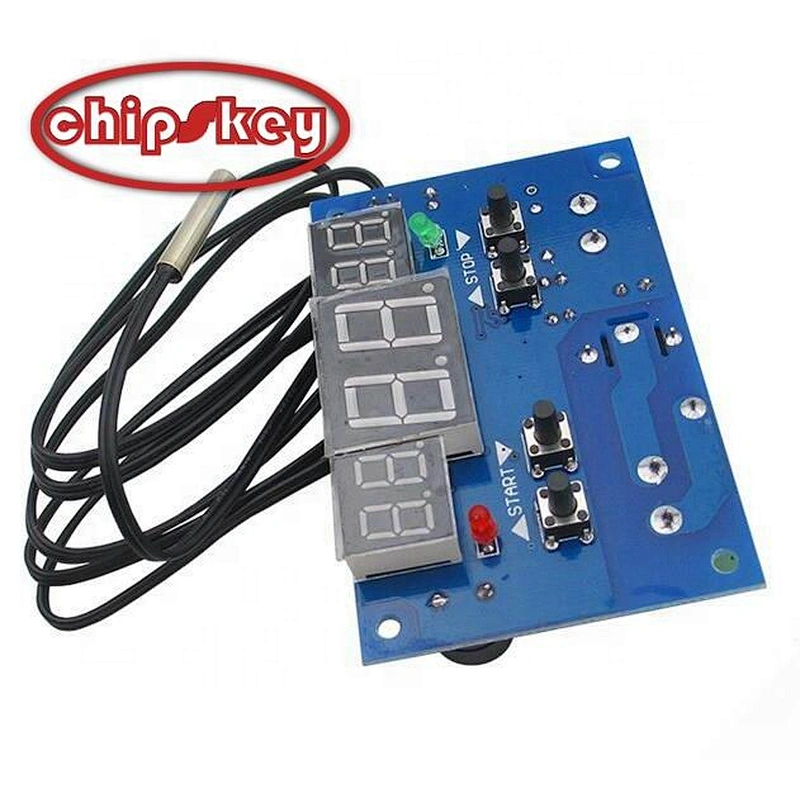

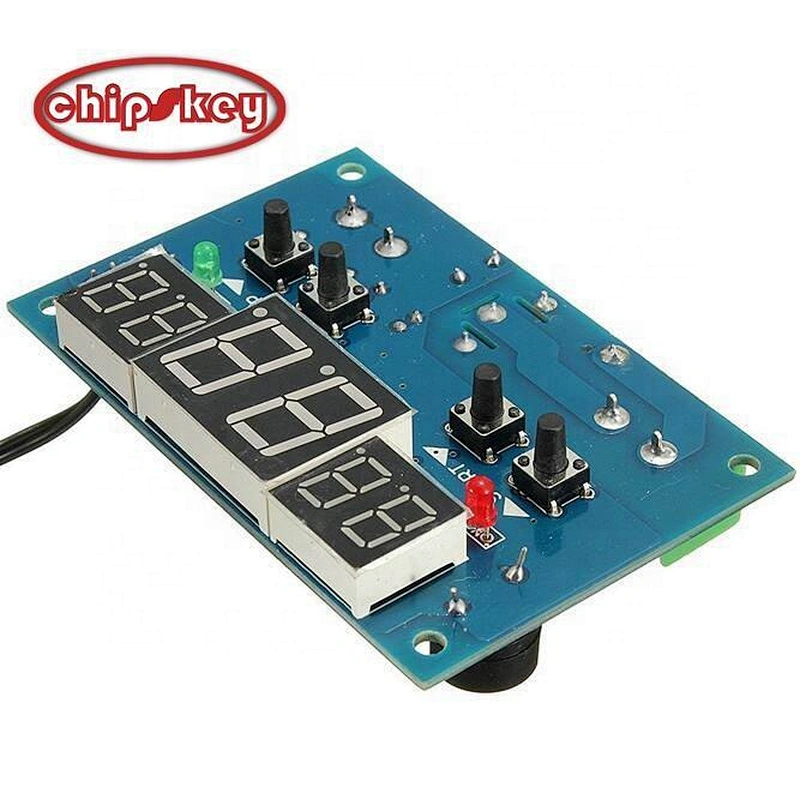

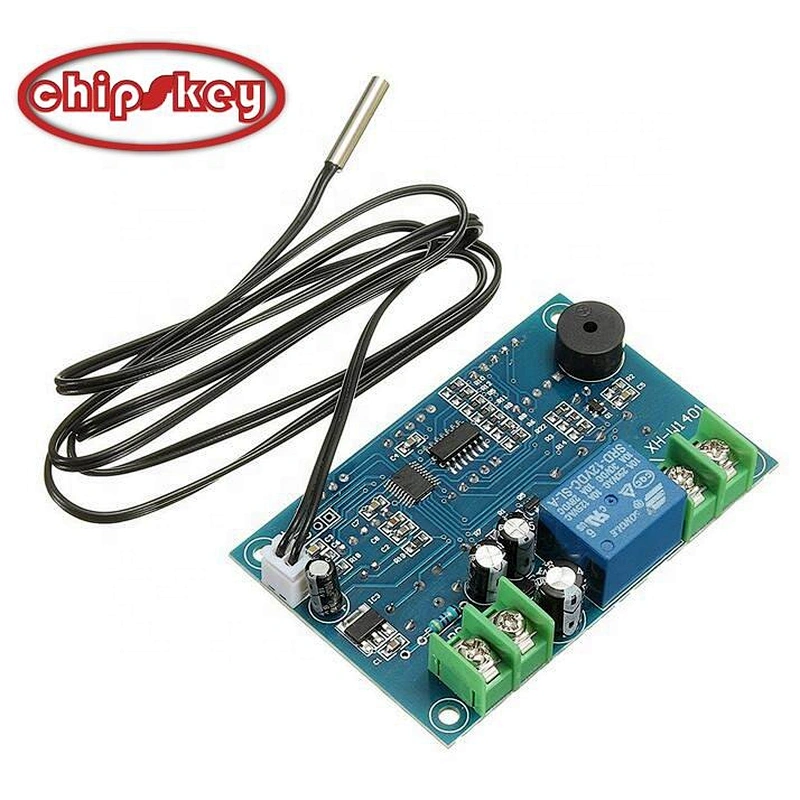

Intelligent digital temperature controller thermostat XH-W1401
Description:
Temperature range: -9-99 centigrade
Accuracy: 1 centigrade
Control accuracy: 1 centigrade
Setting Range: -9-99 centigrade
Refresh rate: 0.5S
Input Power: DC12V
Output: relay output, capacity 220V 10A / 12V 10A
Length of probe: 20mm
Length of wire: 100mm
Environmental requirements: -10-60 centigrade
Humidity: 20% -85%
Size: 78x51mm
temperature sensor: NTC(3950-10k 1%)
Applicable to Various spatial temperature control,Water temperature control,Incubators, etc
Lights, digital tube, key state description
Red start Indicator:START (red) indicator light, which means that the relay is closed, the device begins to work
Green stop light:Stop (green) light is on, which means that the relay is disconnected, the device stops working
Digital Tube
Middle red LED display for the current detection temperature, the left green digital display tube as set start temperature, the right side of the green digital display for the set stop temperature.
