- Model Number:26131
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:26131
- Brand:chipskey
"Product Features
Charging voltage 12.6V to 13V, quiescent current is less than 50uA, low power consumption
A variety of protection features, including overcharge protection, over discharge protection, short circuit protection and over current protection
For 11.1V lithium battery pack
Can be used to avoid explosion, fire and damage to your battery pack for safe use
Helps to extend battery life
product description

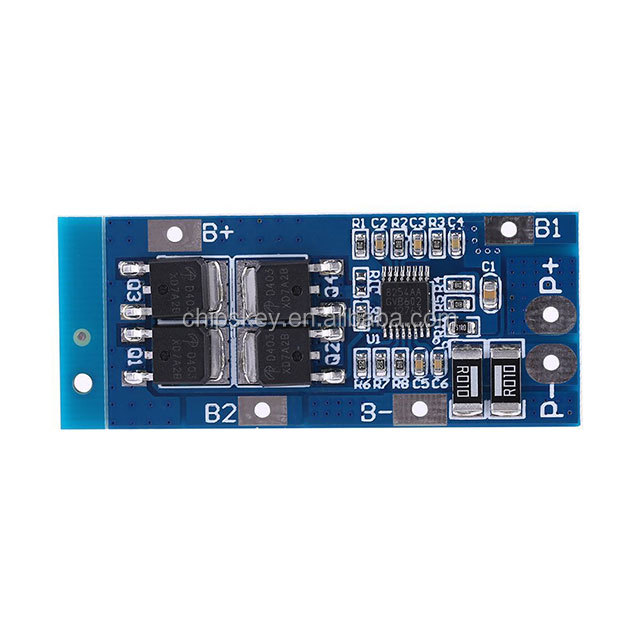

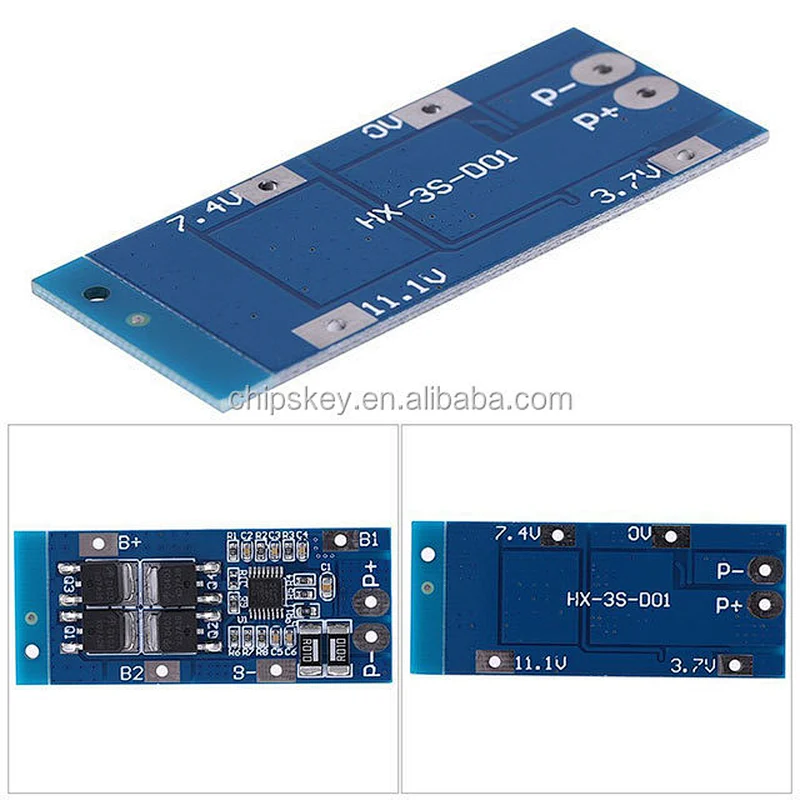

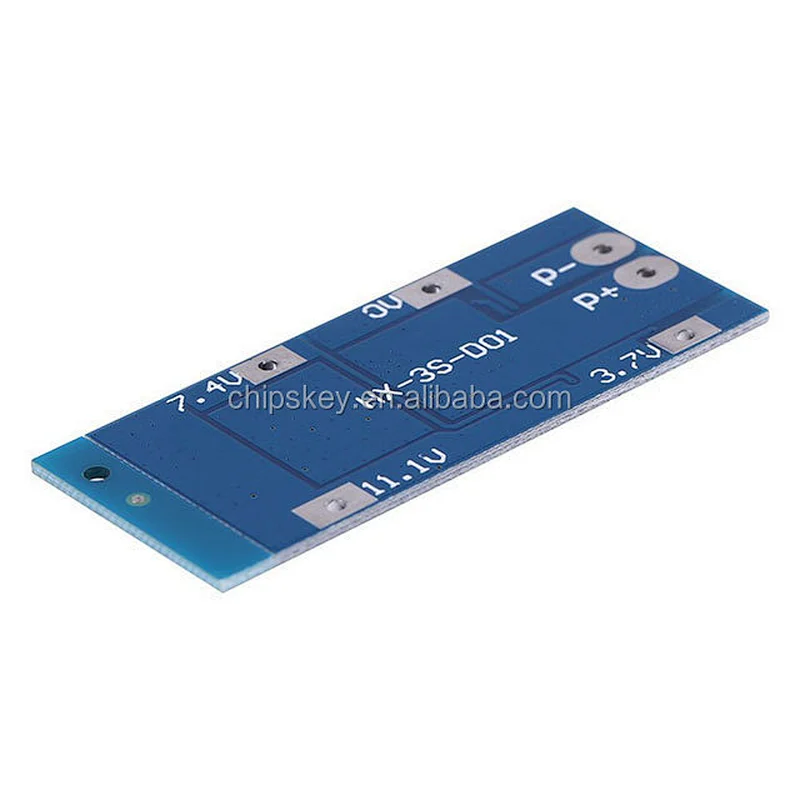

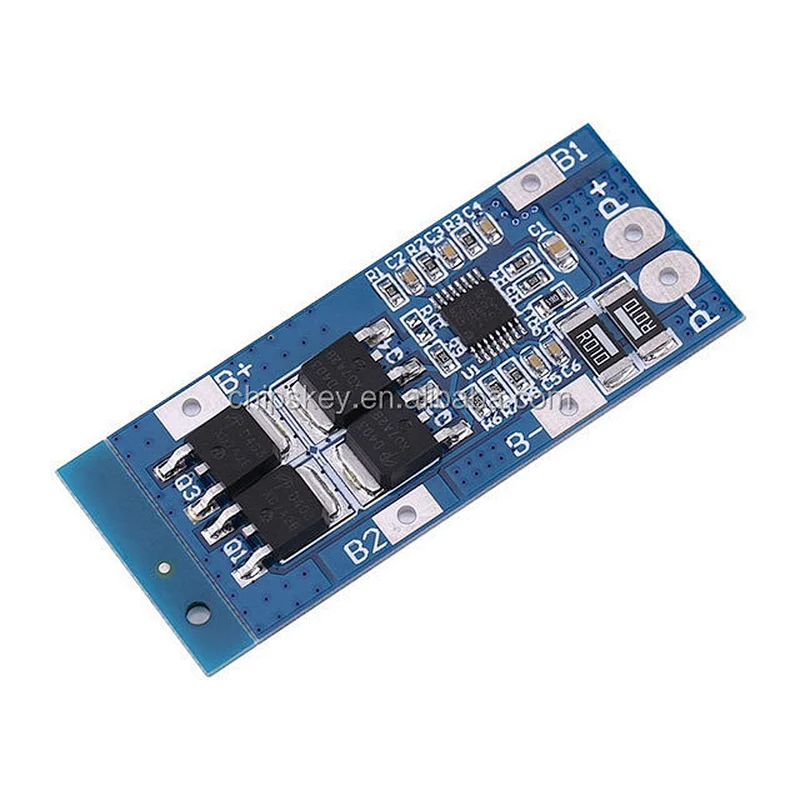

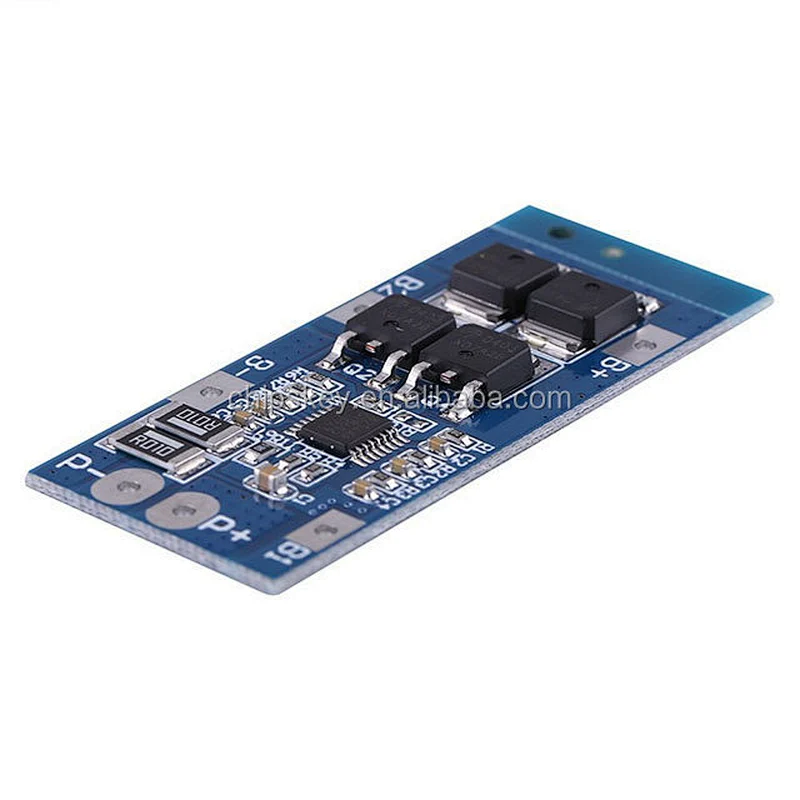

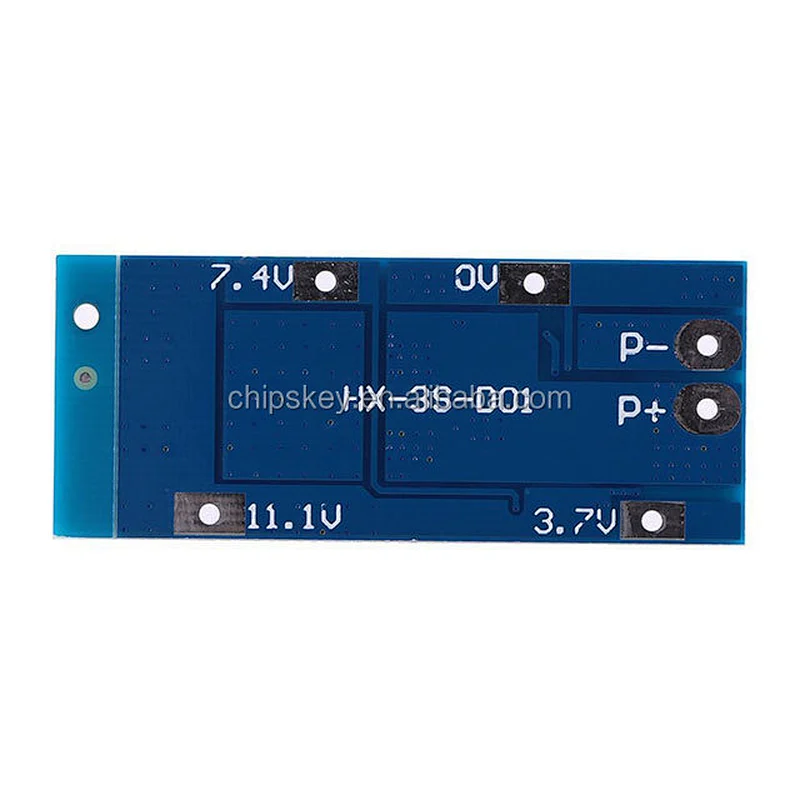

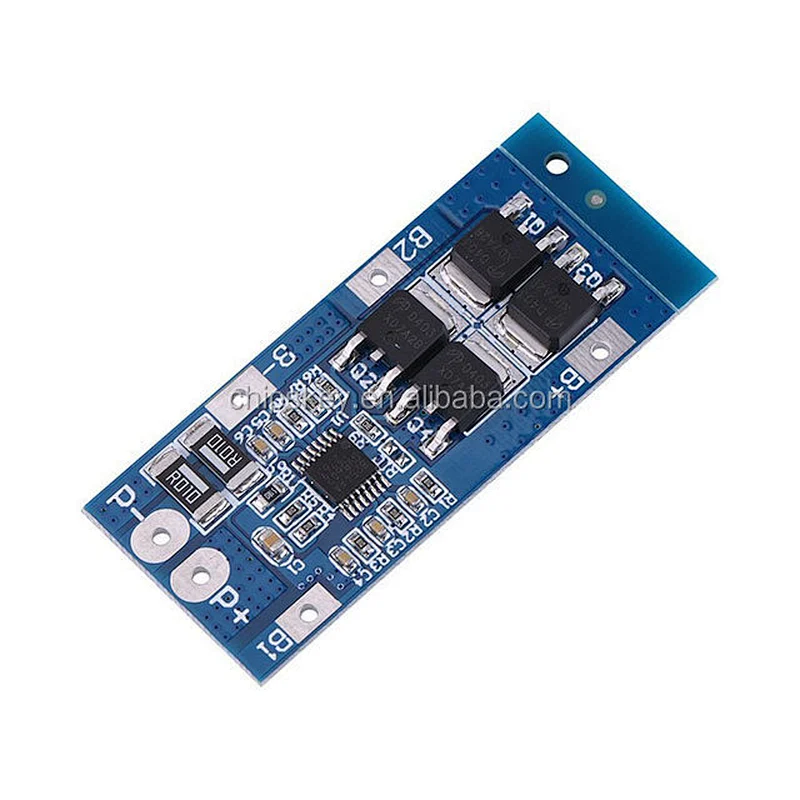

This product is 12.6V to 13V charge voltage, quiescent current is less than 50uA PCB. Protection circuit board is the core of the battery pack, because it can prevent the battery pack from exploding, fire and damage. It also protects the battery pack from over-charging, over-discharging, over-current and short-circuiting. With this PCB, you can certainly extend battery life.
Specifications:

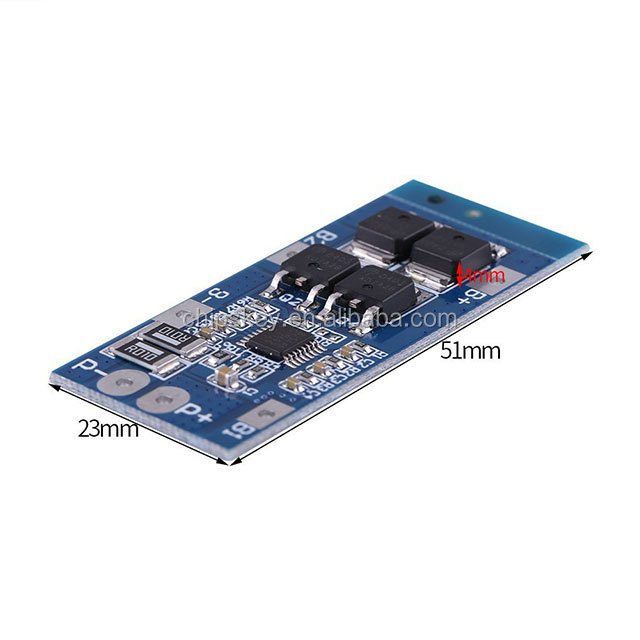

Size: 51 × 23 × 4mm / 2.01 × 0.91 × 0.16 inch
Over-voltage range: 4.25-4.35v ± 0.05v
Over discharge voltage range: 2.3-3.0v ± 0.05v
Maximum operating current: 15A
Maximum transient current: 15-20A
Quiescent current: <50uA
Resistance:<150mΩ
Charging voltage: 12.6v - 13V
Operating temperature: -40 ~ +50 ℃
Storage conditions: -40 ~ +80 ℃
Effective life:>30000h
Short-circuit protection: Yes, delayed self-recovery"
