- Model Number:14E015
- Type:integrated circuit
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- KSU:14E015
- Size:58.8*13.8*26.7
- Weight:14G
- Stock:In Stock ,Can Ship out Immedicate
Specification:
Low power.
Small volume.
With temperature compensation.
Single-chip calibration linear output.
High reliability.
Easy to use.
Inexpensive.
Products Features :
Supply voltage (Vin): DC5V ±5%.
Current Consumption: 2mA (MAX 5mA).
Operating temperature range: 0 to 60°C.
Humidity range: 95% RH (non condensing).
Humidity measuring range: 20 to 95% RH.
Storage temperature range: 0 to 60°C.
Storage humidity range: 95% RH (non condensing).
Humidity measurement accuracy: ±5% RH (condition: at25°C).
The standard humidity output voltage: (conditions: at25°C, Vin = 5.0V).
The temperature detection characteristics: ±5% R (25°C) = 10KW ±5%.
Temperature dependencies (11) (Reference): ±5% RH (Vin = 5.00V DC ,40-80% RH,25°C as the reference range of,0-50°C).
Voltage dependence (12) (Reference): ±5% RH (at25°C 40 - 80% RHDC5V benchmark,4.75-5.25 V range).

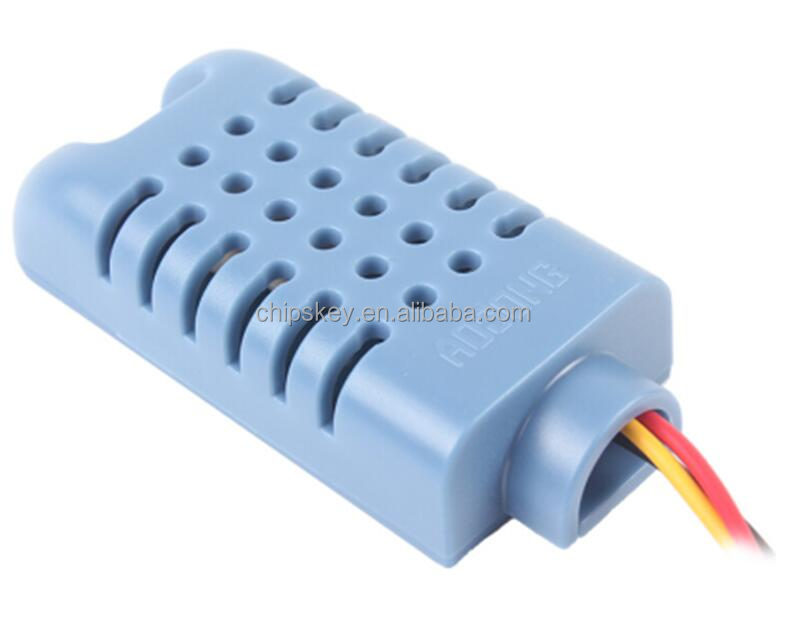

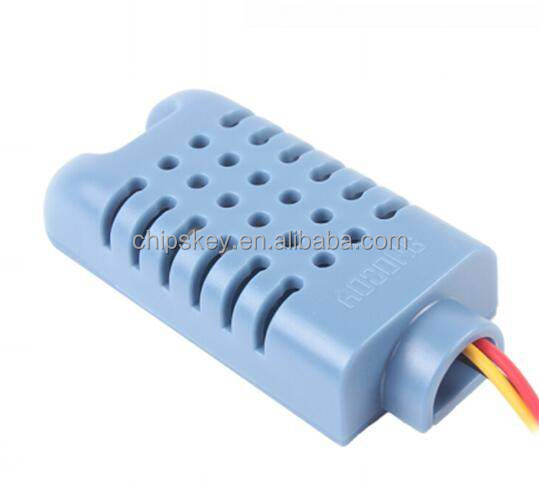

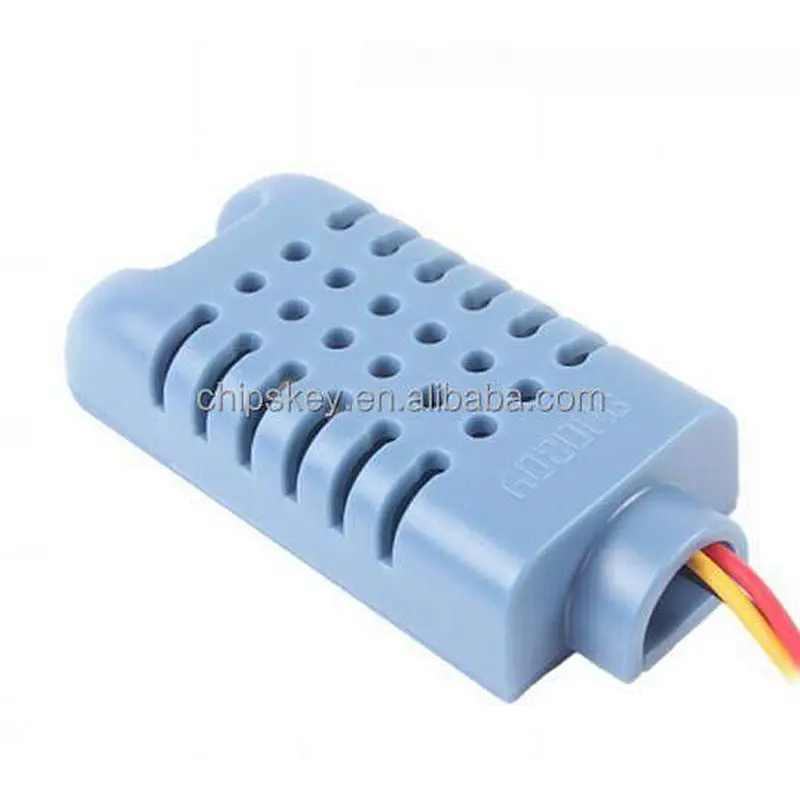

Package Inclued: 1pcs Resistive temperature and humidity sensors
