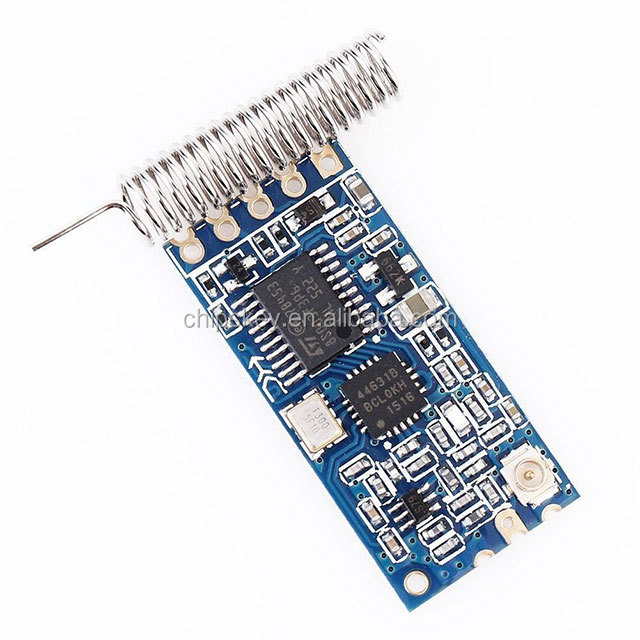

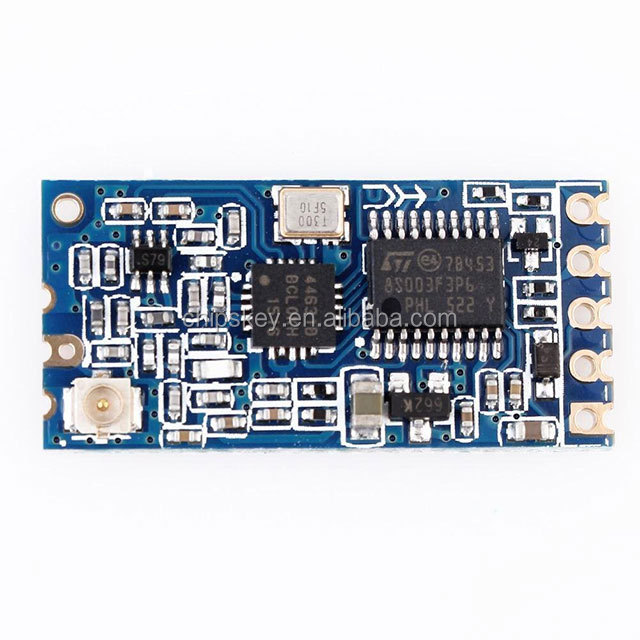

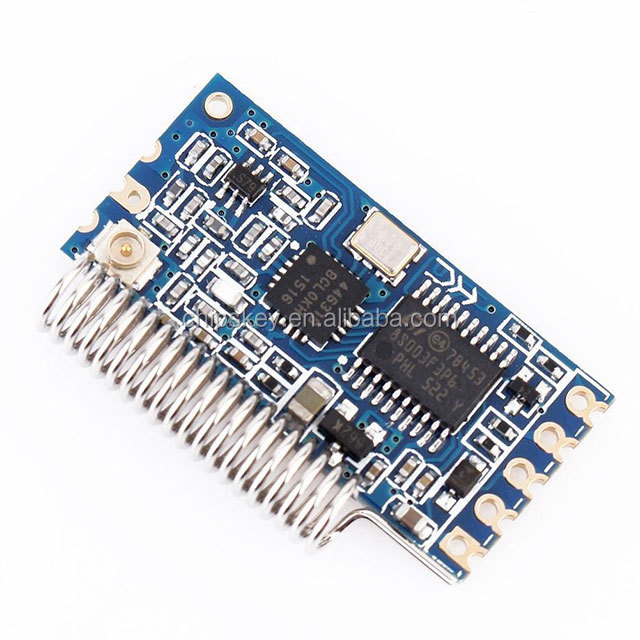

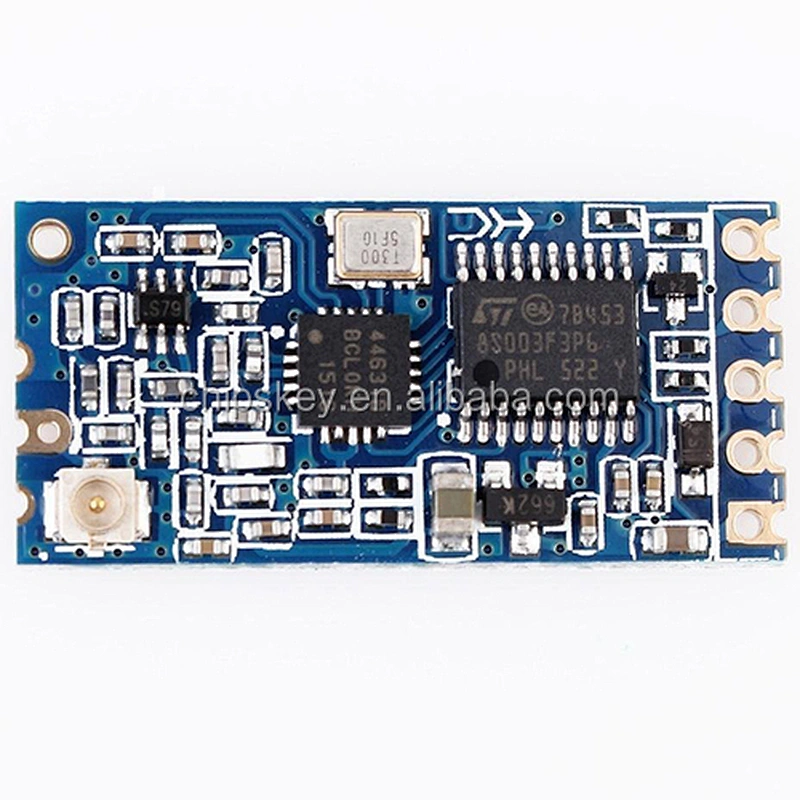

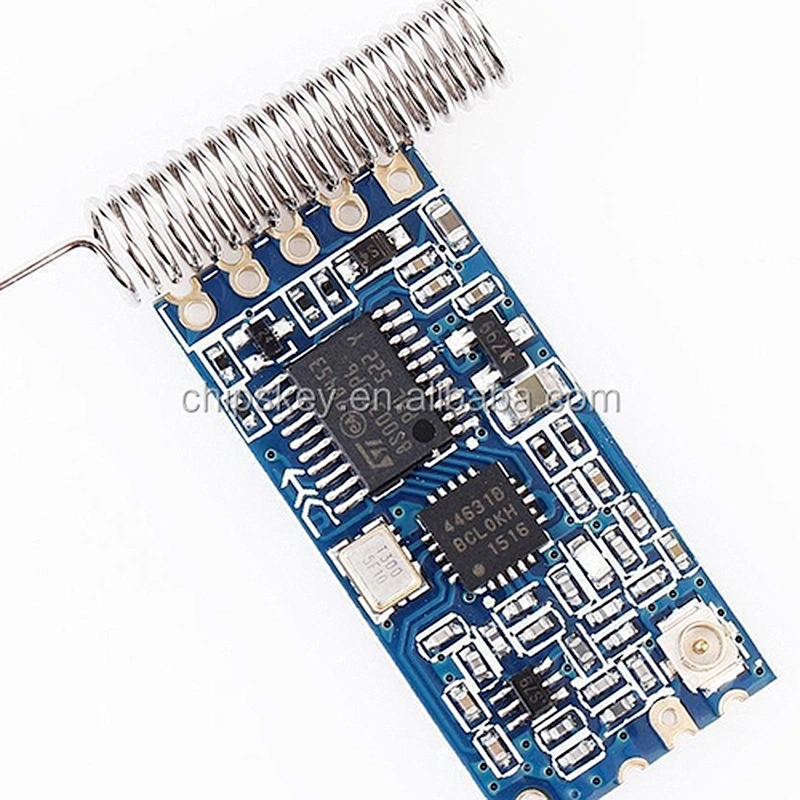

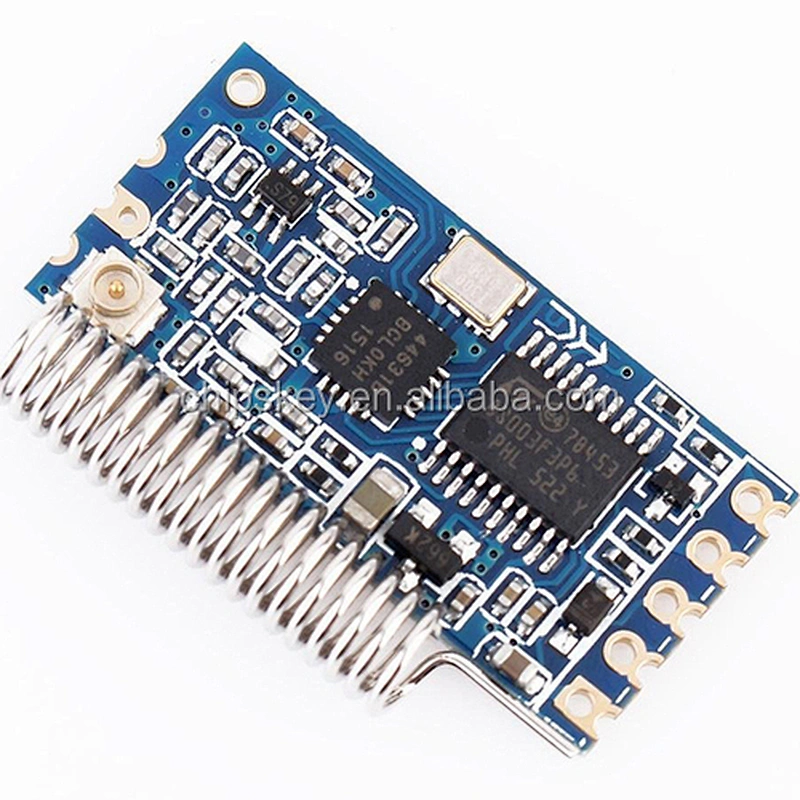

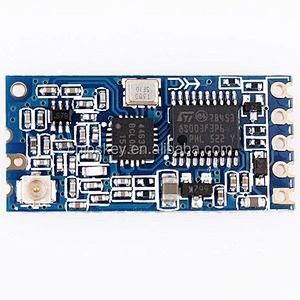

HC-12 SI4463 Wireless DIY RS232 Module 433 Communication distance 1000Meter

• Model Number:13D009
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• SKU:13D009
• Stock:In Stock ,Can Ship out Immedicate

HC-12 SI4463 Wireless DIY RS232 Module 433 Communication distance 1000Meter

The power supply voltage of 3.2 V to 5.5 V.(if the modules to work long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V when a 1 n4007 diode string avoid module built-in"fever)(open)
Module size: 27.8mm*14.4mm*4mm.
The default communication distance of about 600 m (communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).
Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum of 100 mw fired power (can be set)
The default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M)
