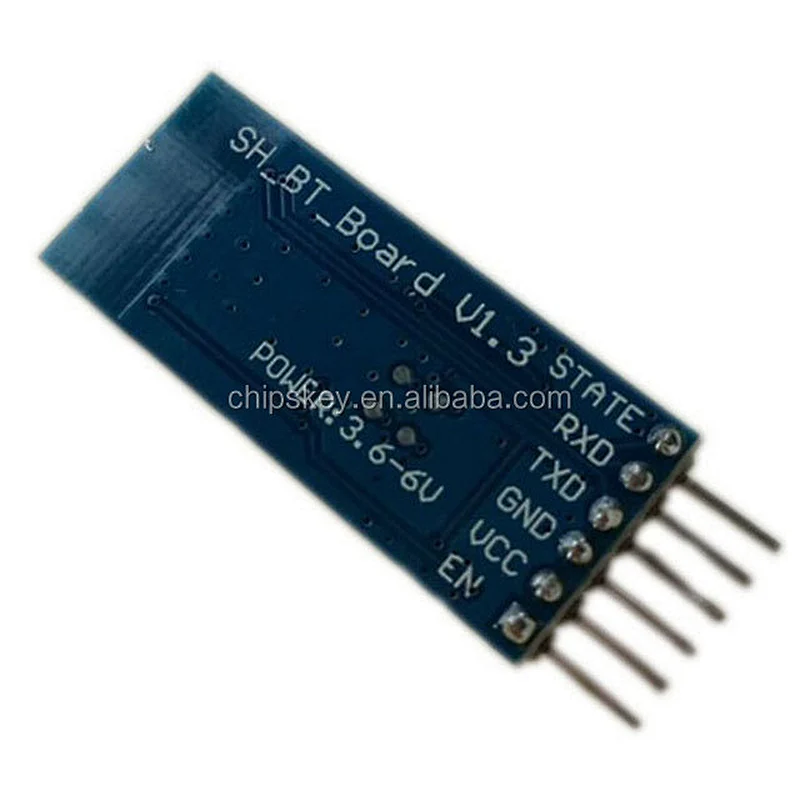

HC-08 DIP 4 pins Wireless module

• Model Number:26029
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• Part number:26029
• Brand:chipskey

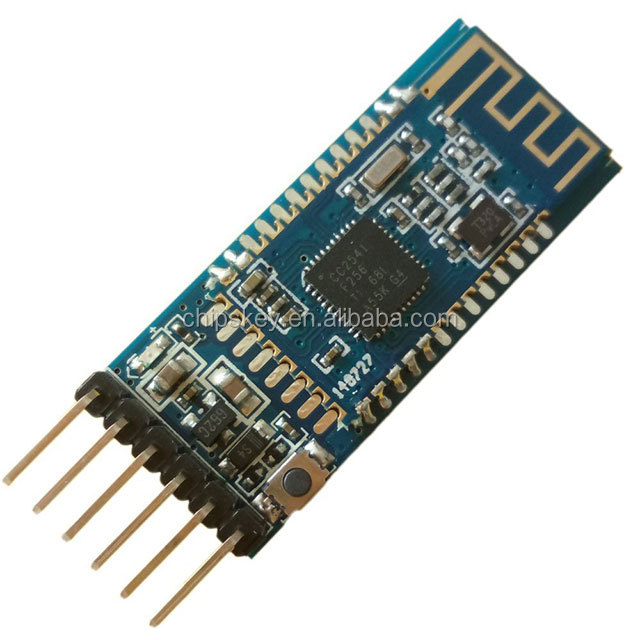

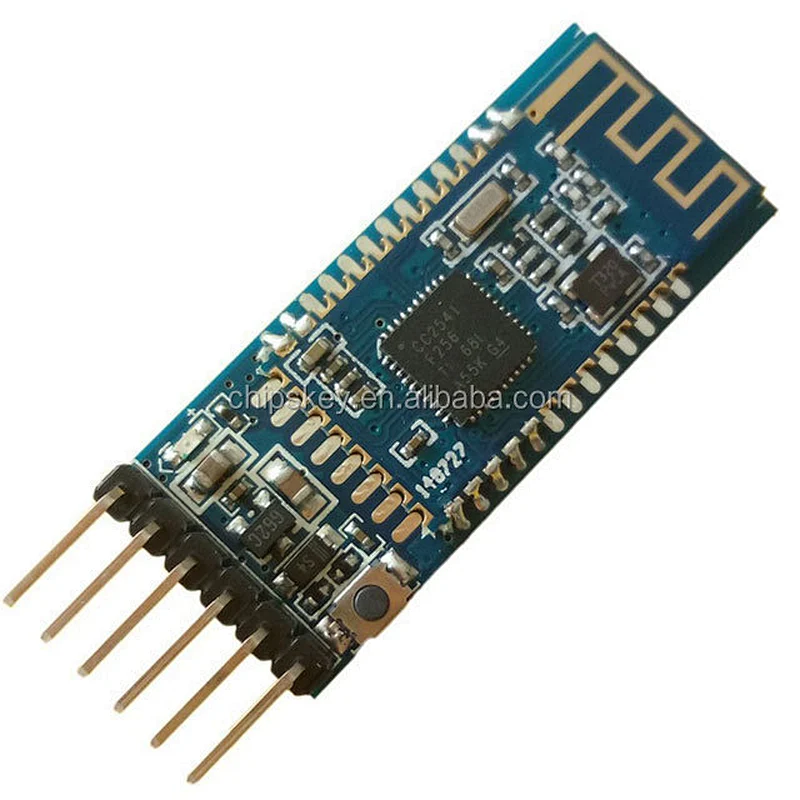

 HC-08 DIP 4 pins Wireless module

Product Description


HC-08 Serial coMmunication moduleIt is a new generation.Be based onSpecification V4.0 BLE protocolData transfer module. Radio frequency bandISM 2.4GHz, the modulation method isGFSK. Module maximum transmit power is4DBm, receiving sensitivity-93DBm,Under open environment andIphone4sCan realize80Meter ultra long distance communication.
The module adopts stamp hole package, which can be used for welding.26.9mm*13mm*2.2mm, it is very convenient for customers to embed the application system.

ModularUseTITheCC2540Chip, configurationByte 256KSpace, supportATThe instruction, the user may need to change the role of (master and slave mode) and serial baud rate, equipment name and other parameters, the use of flexible.
TXDSerial port,TTL 3.3VLevel.
RXDSerial port receive,TTL 3.3VLevel.
CTSSerial flow control, not supported.
RTSSerial flow control, not supported.
DCThe simulation clock, burning feet.
DDBurning feet: simulation, data.
RSTModule reset pin, not less than5msReset the low level.
VCCModule power supply pin, DC3.3VPower supply current is not less than100mA. Operating voltage range: 2.0V~3.6V.
GNDModule public.
LEDModule indicator light output pin,
