- Model Number:10A032
- Place of Origin:Guangdong, China, CN
- Brand Name:Chipskey
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

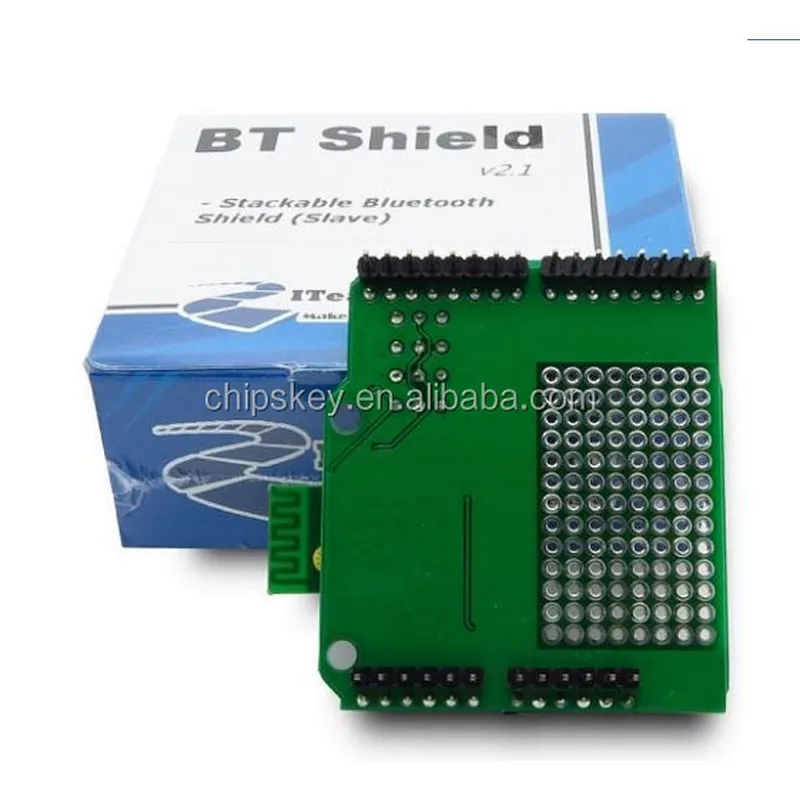

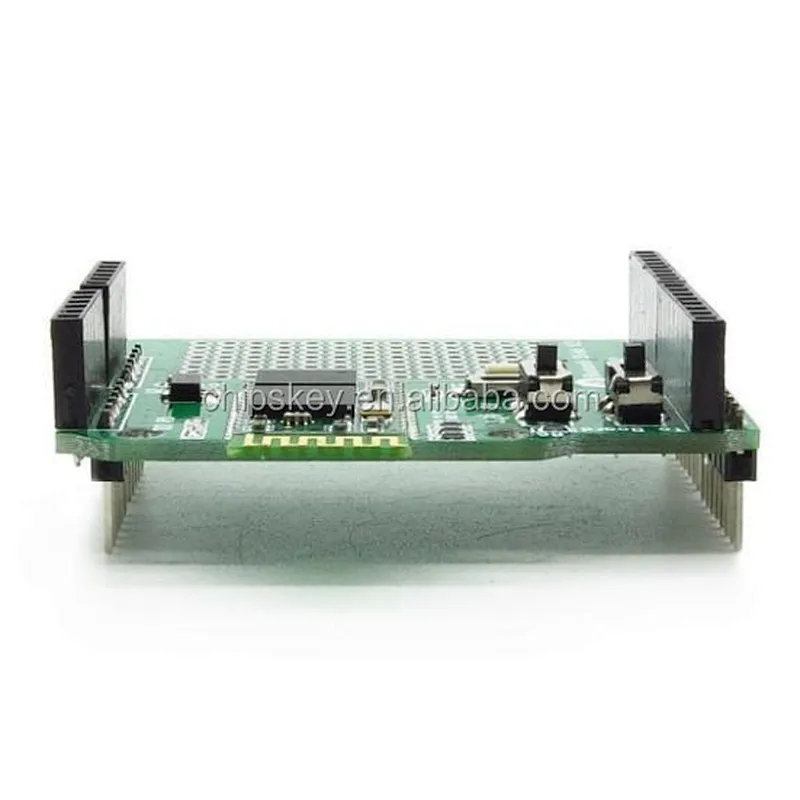

HC-06 Salver Shield

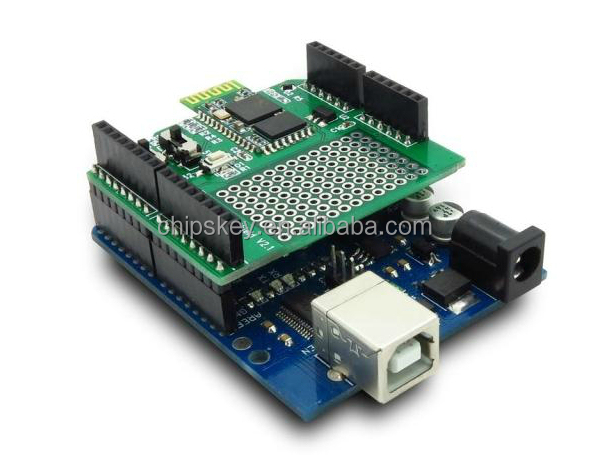

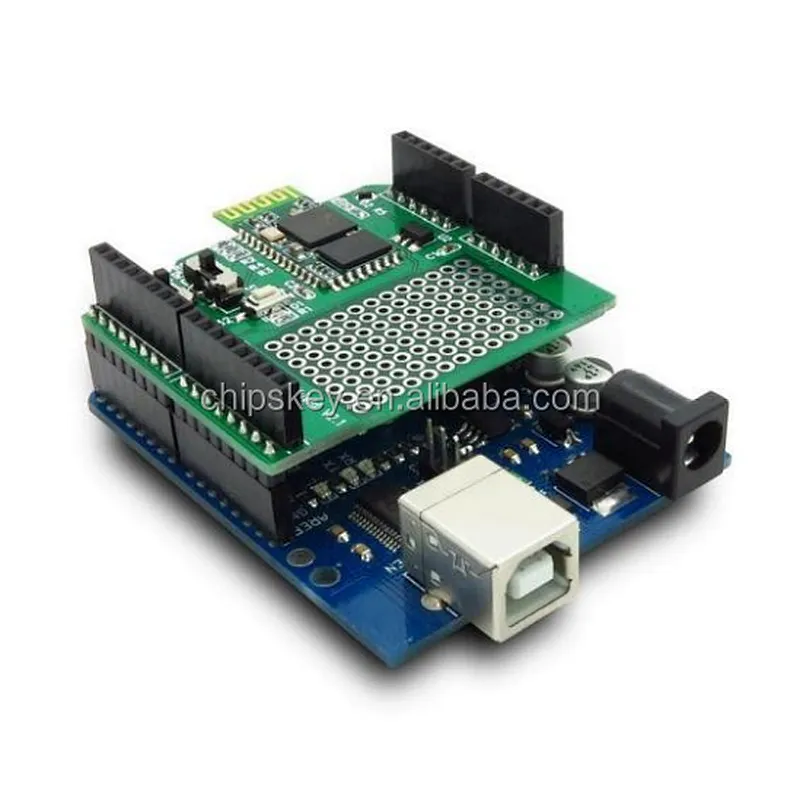

The expansion board plugs directly into the main control panel, you can extend Ar-duino communication capabilities. The expansion board using the hardware serial ports, stackable with other not to use the serial port expansion board used together - such as Ethernet expansion board, SD expansion board

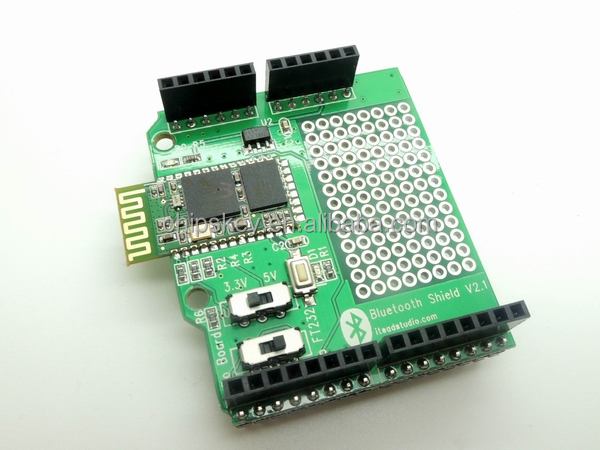

Expansion board provides two switches. One is to select a compatible level - 5V or 3.3V. General expansion board Ar-duino Ar-duino's 5V direct support level, but did not take into account other Ar-duino compatible development boards may use to 3.3V level, such as the Leaf Maple still based STM32 PIC-based chipKIT.
When the Ar-duino expansion board inserted in the time, you can choose another dial switch port is connected to the Ar-duino, accepting ATMega328 control, or directly through the FT232RL is connected to the computer - this time using Arduno IDE or other serial communications assistant with
