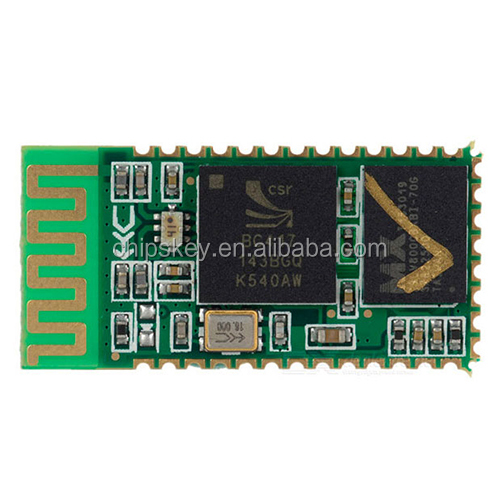

HC - 05 module adapter serial module

• Model Number:4010
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• Part number:4010
• Brand:chipskey
• Category:Module

HC-05

Product description
Module HC-05

Specifications:

protocol: Specification v2.0+EDR
USB protocol: USB v1.1/2.0
Frequency: 2.4GHz ISM band
Modulation: GFSK(Gaussian Frequency Shift Keying)
Transmit power: ≤4dBm, Class 2
Sensitivity: ≤-84dBm at 0.1% BER
Rate: Asynchronous: 2.1Mbps(Max) / 160 kbps
Synchronous: 1Mbps/1Mbps
Security features: Authentication and encryption
Support profiles: serial port (master & slave)
Power Supply: +3.3VDC 50mA
Working temperature: –25 ~ +75 Centigrade

Applications:

Mouse, keyboard, joystick
Computers and peripherals
GPS Receiver
Instrument
