- Model Number:15f049
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- SKU:15F049
- Size:20.5 cm x 12.0 cm x 3.5 cm
- Weight:384G

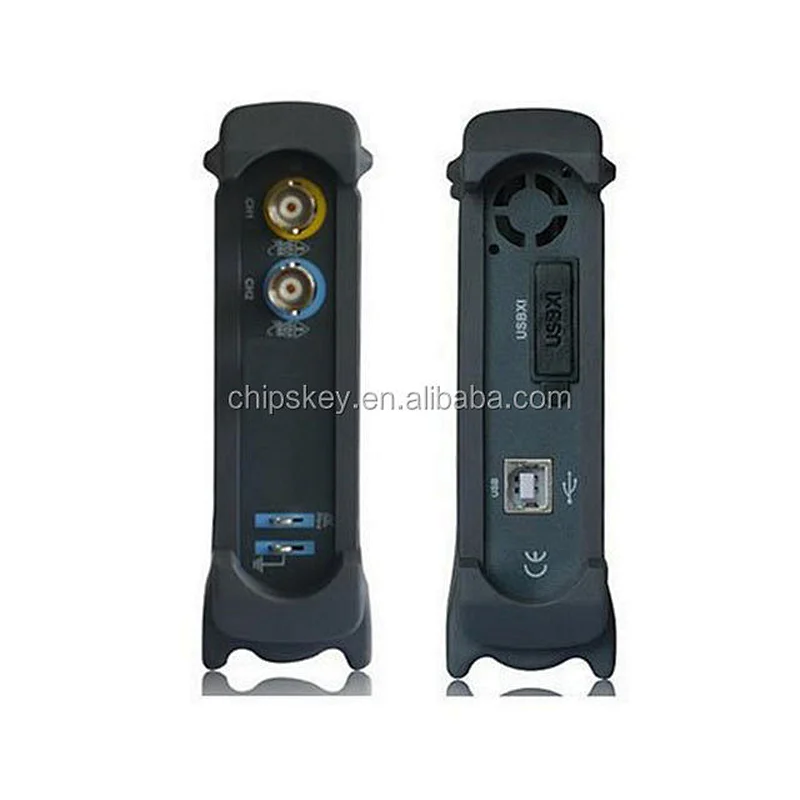

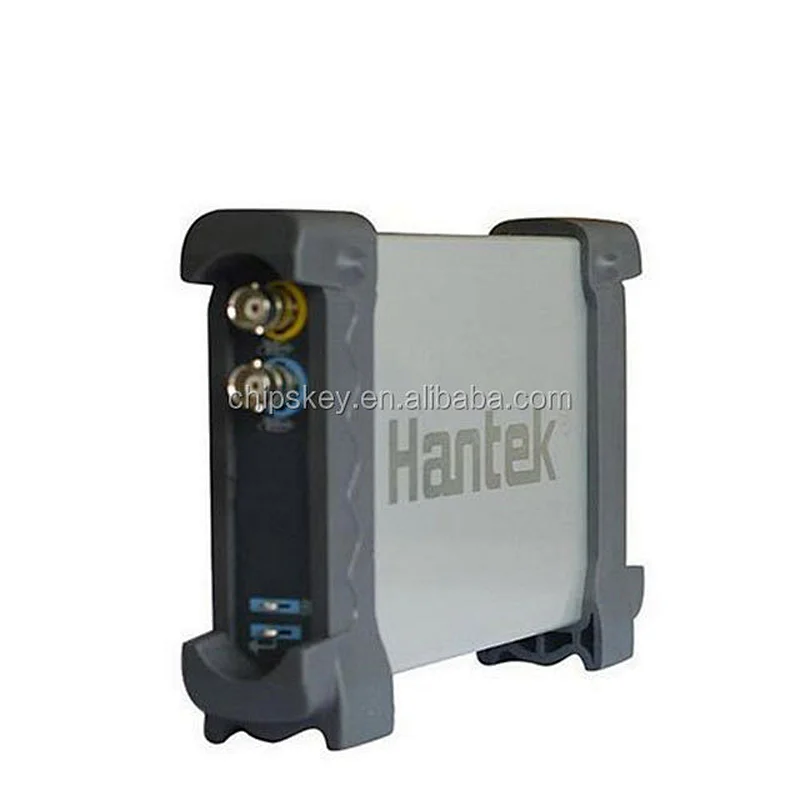

Hantek 6022BE PC-based USB 2CH Digital Oscilloscope 20MHz Bandwidth 48M Sa/s 1M
- Model: 6022BE
- Quantity: 1
- Color: Grey + Black
- Material: Plastic
- Analog bandwidth: 20MHz
- Max sample rate: 48MS/s
- Vertical sensitivity: +/-3%
- Vertical position: Adjustable
- Input impedance: 1M ohm, 25pF
- Channel: 2-CH
- Single bandwidth: DC to 20MHz
- Storage depth: 1M
- Vertical resolution: 8 bit
- DC accuracy: +/-3%
- Timebase range: 1ns~9000s, 39 Steps
- Input protection: Diode clamping

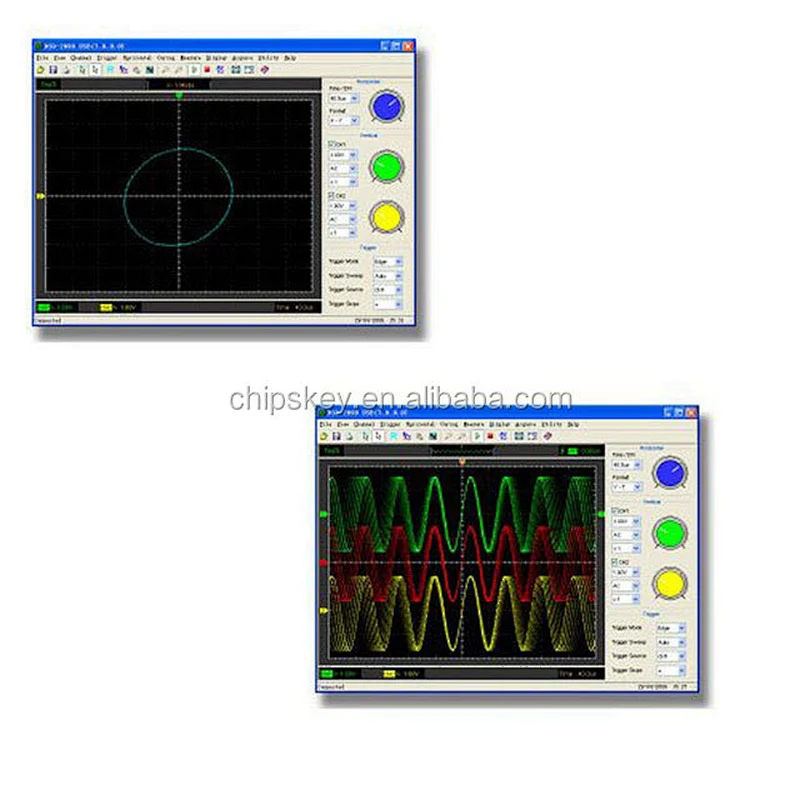

- X-Y: Yes
- Trigger Mode: Auto, Normal and Single
- Trigger Slope: +/-
- Trigger level adjustable: Yes
- Trigger Type: Rising edge, falling edge
- Trigger Source: CH1, CH2, EXT
- Pre trigger: 0~100%
- Sampling selection: Yes
- Waveform Display: port / line, waveform average, persistence, intensity
- Network: Open / Close
- Vertical mode: CH1, CH2, Dual, ADD
- Cursor measurement: Yes
- Math: FFT, addition, subtraction, multiplication, division.
- Cursor: Frequency, Voltage
- OS supported: Windows 7, Windows NT, Windows 2000, Windows XP ,Vista
- Second development: Supply DEMO code(VC, CVI, VB, LABVIEW) and technical support.

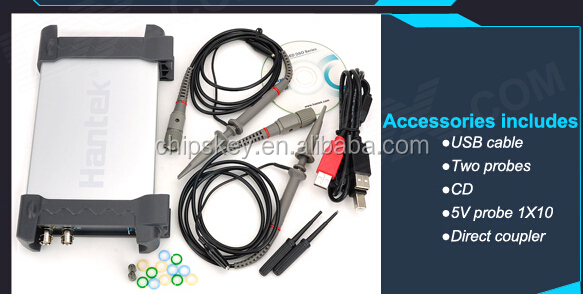

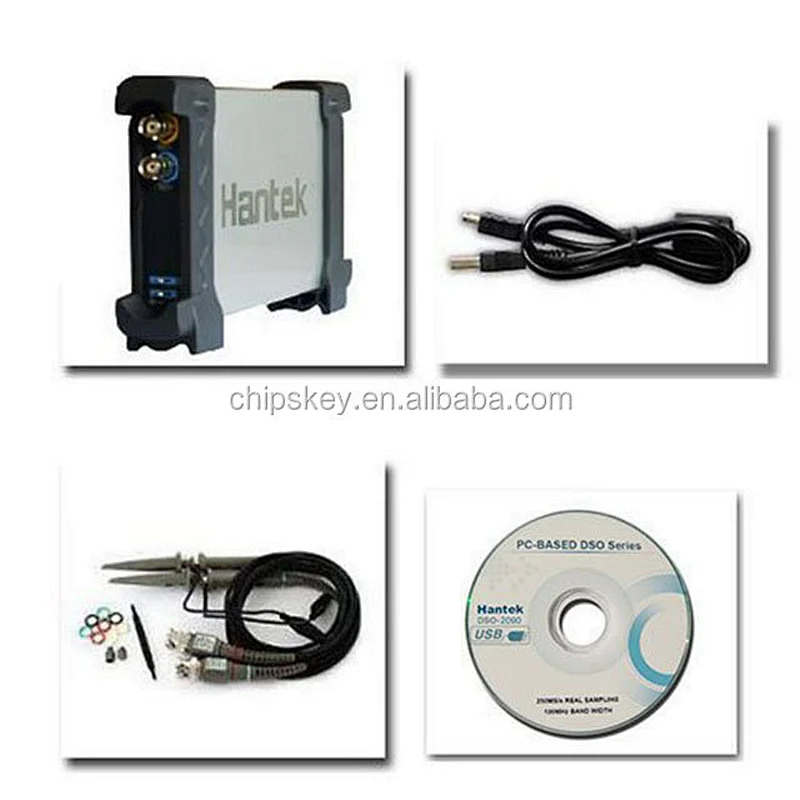

- 1 x Oscilloscope
- 1 x USB data cable (93cm)
- 2 x Probes (103cm-cable)
- 2 x Bag of parts
- 1 x English user manual
- 1 x CD
