- Model Number:24139
- Type:Other
- Place of Origin:China
- sku:24139

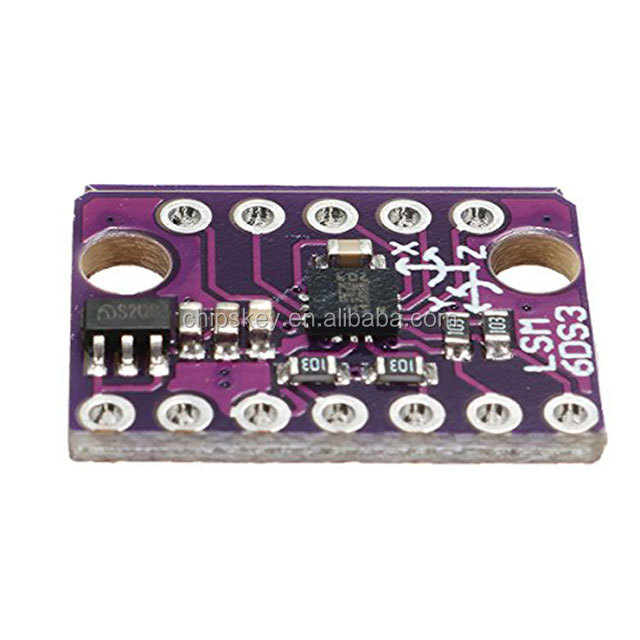

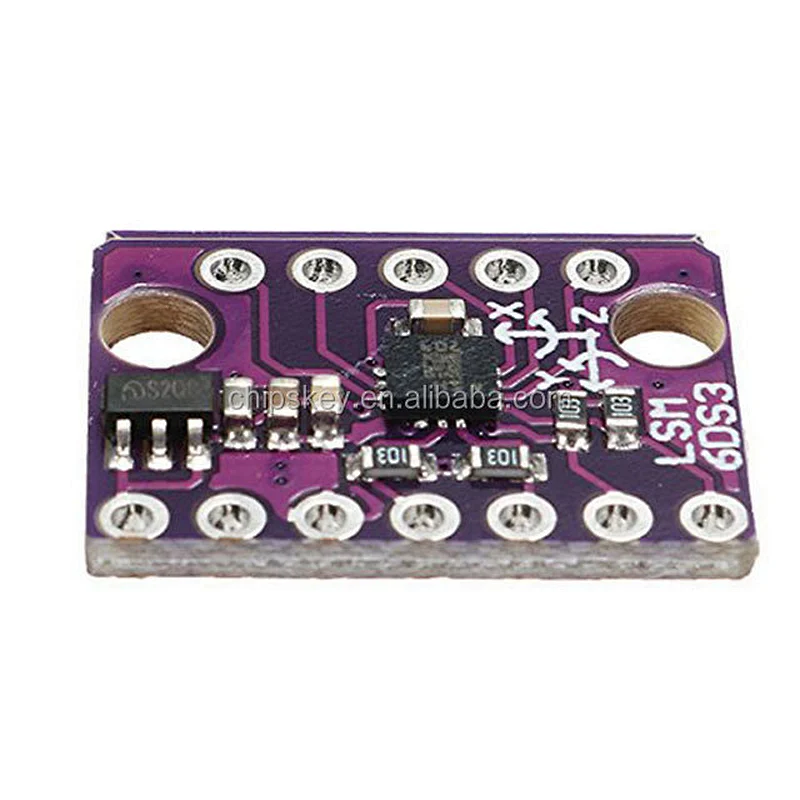

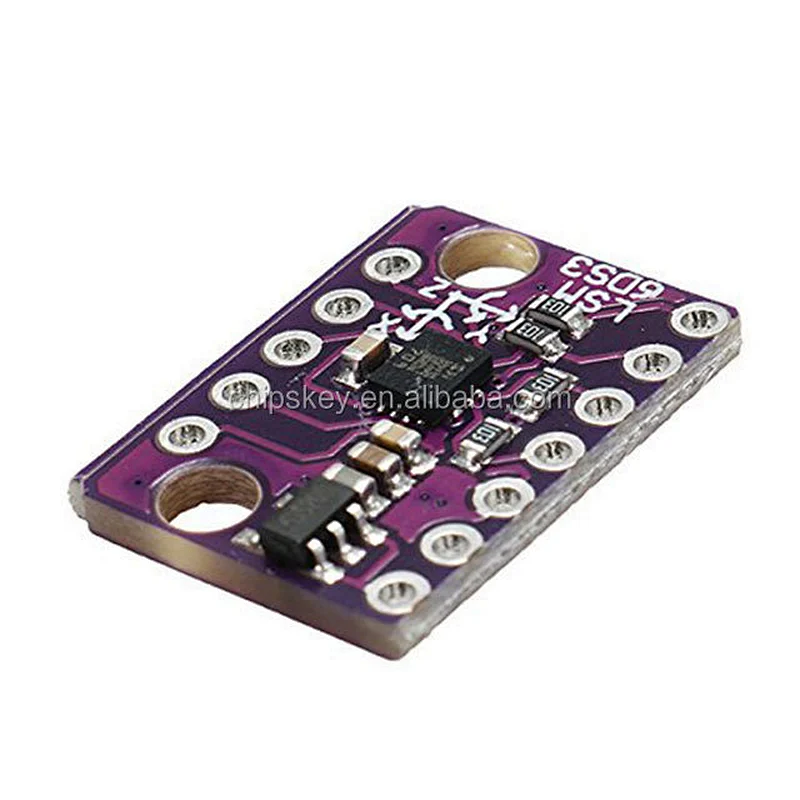

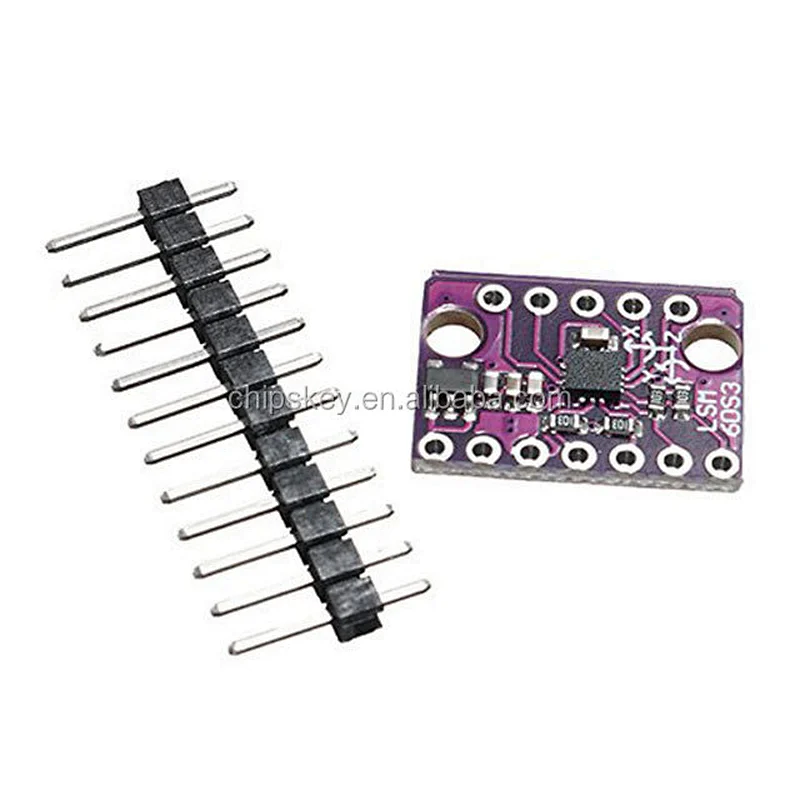

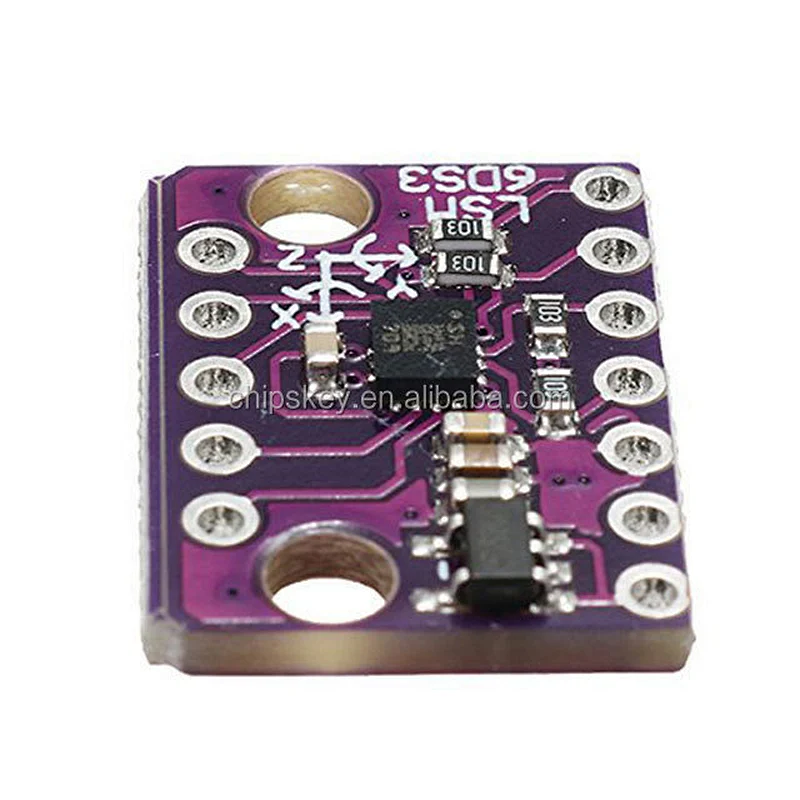

GY-LSM6DS3 3 Axis Accelerometer Gyro Sensor 6 Axis Inertial 6DOF Module
"product description
description:
The LSM6DS3 is an accelerometer and gyroscope sensor with a huge 8kb FIFO buffer and embedded processing interrupts designed specifically for the handset market. Due to the functionality and low cost of the LSM6DS3, we created this mini splice for you! Each LSM6DS3 Breakout is designed to be ultra-flexible and can be configured specifically for many applications. With LSM6DS3 Breakout, you will be able to detect shock, tilt, movement, tap, count steps, and even read temperature! The LSM6DS3 can read accelerometer data up to 6.7kS / s and gyroscope data up to 1.7kS / s for more accurate motion sensing. As mentioned earlier, due to the built-in FIFO of the LSM6DS3, this breakthrough also buffers up to 8kB of data between reads, other host sensor and driver interrupt pins. Each pin on the LSM6DS3 is disconnected, power and I2C functions are on one side of the board, and SPI functions and interrupt outputs are controlled on the other side of the motion pins. Keep in mind that the LSM6DS3 is a 3.3V device, so providing voltages greater than ~ 3.6V may permanently damage the IC. For any development platform working at 5V, a logic level shifter is needed. Function: Power consumption: 0
mA up to 1.6 kHz in combination with normal mode and 1.25 mA combined high performance mode. Both accelerometers and gyros have a""always-on""experience with low power consumption.
Intelligent FIFOs based on character set up to 8 kbyte
Full Scale ± 2 / ± 4 / ± 8 / ± 16 g Full Scale ± 125 / ± 245 / ± 500 / ± 1000 / ± 2000 dps
Analog supply voltage: 1.71-5V
SPI / I2C serial interface with host processor data synchronization
Embedded temperature sensor applications: pedometer, stepper detector and step counter
Significant movement and tilt function
Indoor navigation
"
