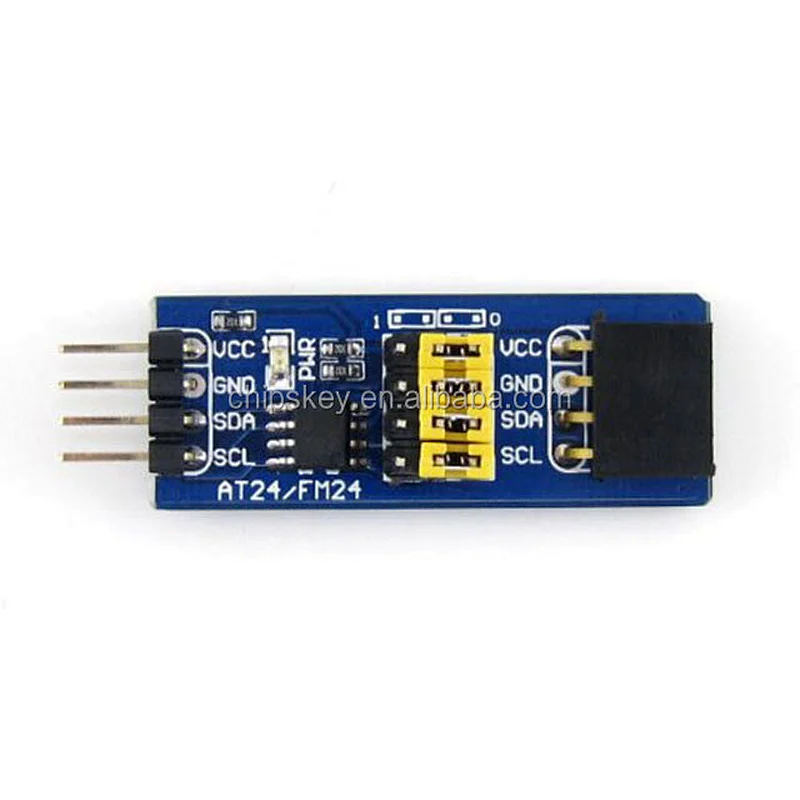

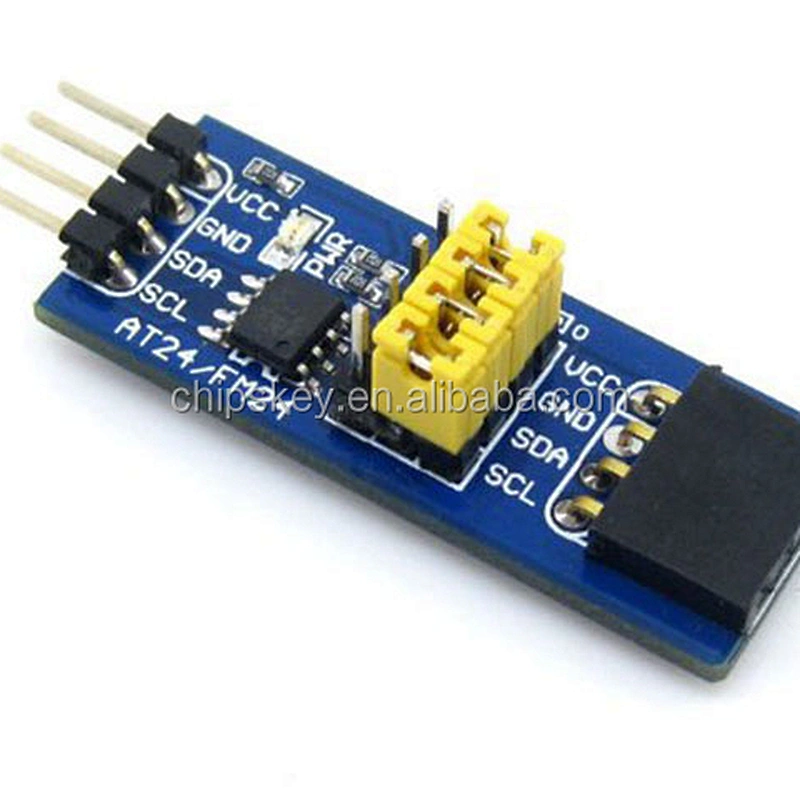

FRAM Board FM24C04B Memory Storage Module Development Board Kit

Additional FRAM board with I2C interface, FM24CXX on board

Overview

The FM24CXX FRAM Board is a storage tool for FRAM with I2C interface, It is a non-volatile Ferroelectric RAM memory module.The FM24CXX FRAM Board features I2C pinheader on one side, and I2C connector on the opposite side. Hence, it's more flexible to connect the board to your development system. The board also supports I2C cascading, allowing the use of multi module connected to the I2C bus at the same time by connecting the pinheader and connector.

Features

FM24CXX, I2C pinheader, I2C female connector, Address pins/write-protect pins jumpers

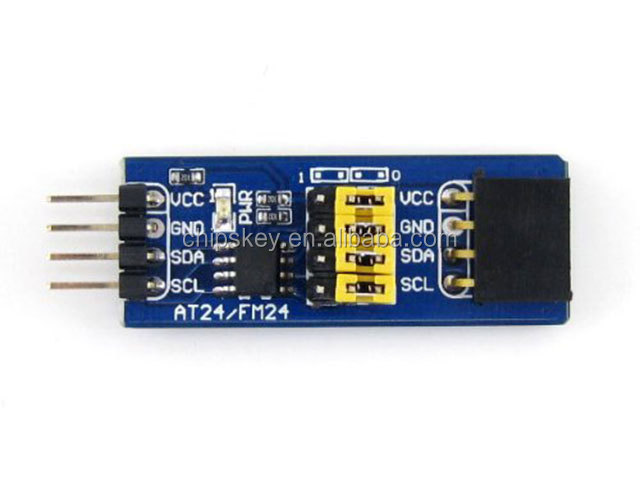

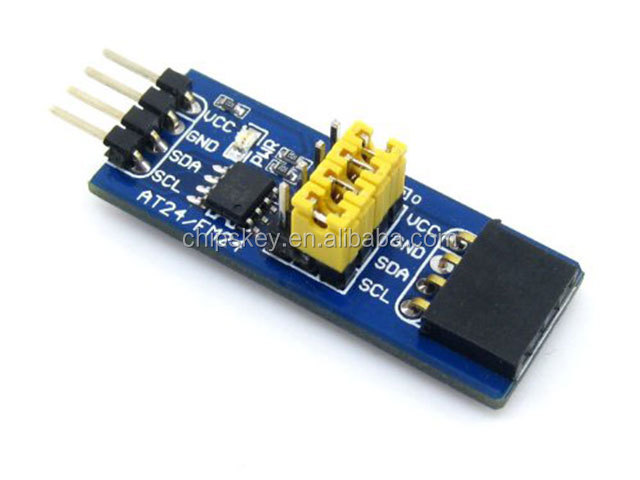

Photos

Package Contains

• FM24CXX FRAM Board ¡Á 1

---

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Click here to download
