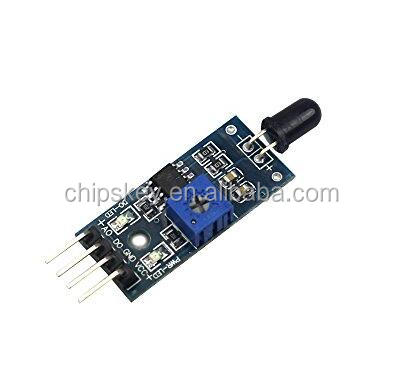

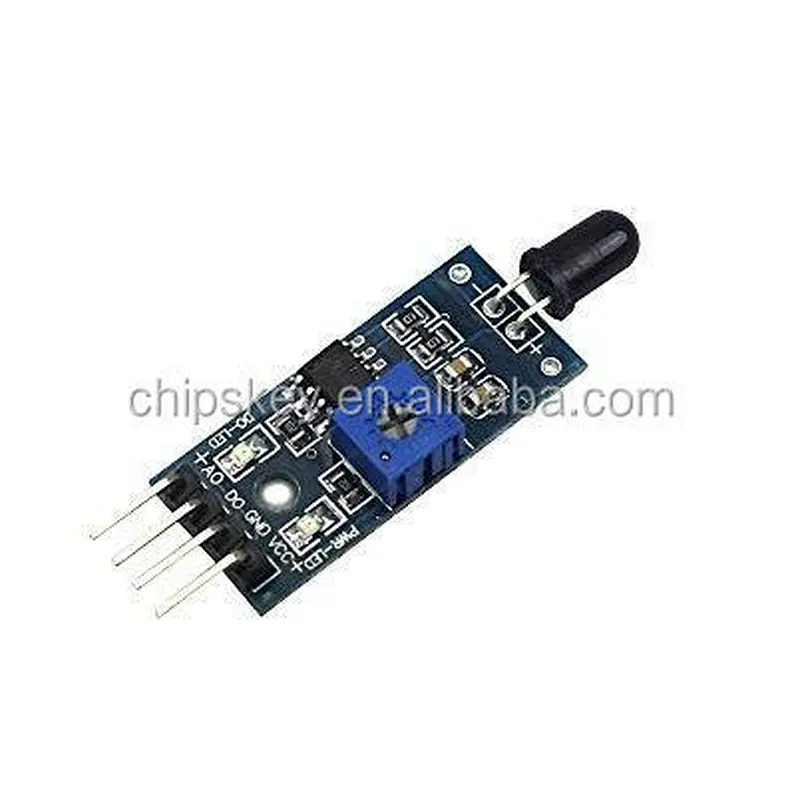

fire detection module, infrared sensor module, infrared receiver detection module For Arduinos

• Model Number:fire detection module
• Type:Drive IC
• Place of Origin:Guangdong, China
• Brand Name:MIC
• Part number:fire detection module, infrared sensor module
• Brand:MIC
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Packaging:Reel Tray Tube
• Maximum Operating Temperature:-40C ~ 125C
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Application:Watch
• Supply Voltage:1.5V-6V

fire detection module, infrared sensor module,  infrared receiver detection module

Uses:
Various flames, the fire source detection
Module Features:
1, can detect the flame, or wavelength of the light source in the range of 760 nm to 1100 nm, and the the lighter test flame distance is 80cm, the greater the flame, the test distance farther
Detection angle of about 60 degrees, the flame spectrum is particularly sensitive
3 adjustable sensitivity (shown in blue digital potentiometer adjustment)
4, the comparator output, the signal is clean, the waveform, the driving ability to exceed 15mA
5, with adjustable precision potentiometer sensitivity adjustment
6, operating voltage 3.3V-5V
7, the output in the form: Digital switching outputs (0 and 1)
8, a fixed bolt hole for easy installation
9, small plates PCB Dimensions: 3.2cm x 1.4cm
10, using a wide voltage LM393 comparator
Module using the instructions:
1, the flame sensor flame most sensitive reaction to ordinary light, is generally used as flame alarm purposes.
2 small plate output interface can be directly connected with the single-chip IO
3, the sensor and the flame to keep a certain distance to avoid high temperature damage to the sensor, lighter test flame distance of 80cm, the greater the flame, the test distance farther
