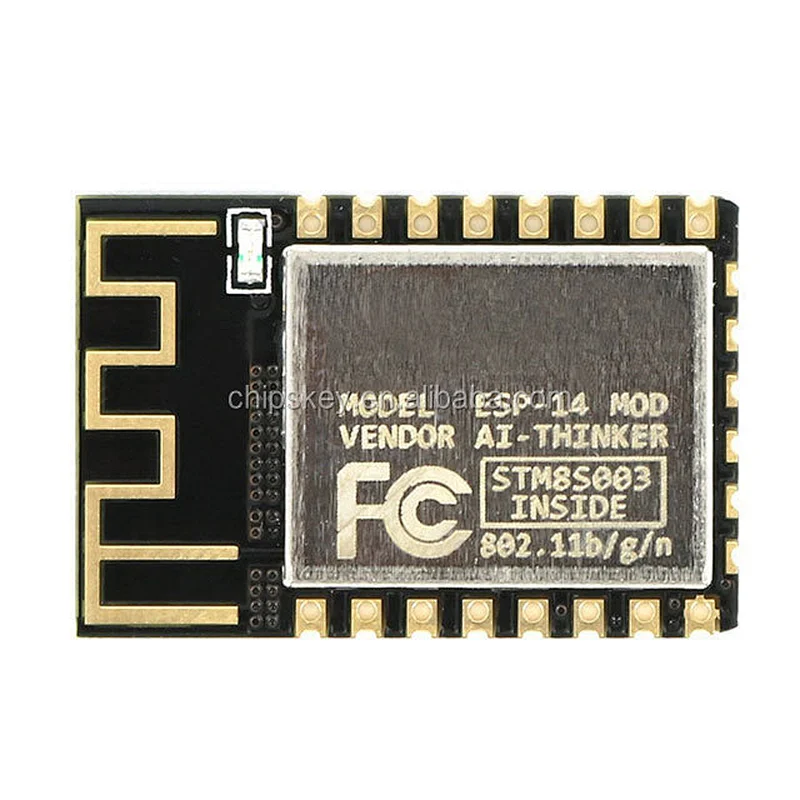

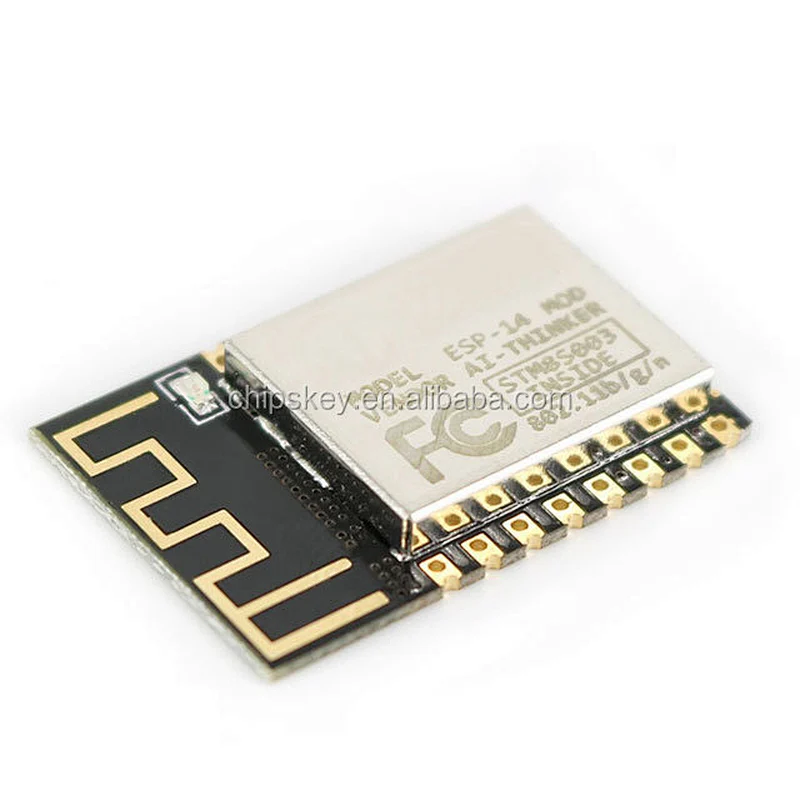

ESP-14 ESP8266 Serial Wi-Fi Wireless Transceiver Module

• Model Number:25077
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• SKU:25077
• Stock:In Stock ,Can Ship out Immedicate

"roduct description
The ESP-14 is a Wi-Fi serial transceiver module based on the ESP8266 Wi-Fi SoC, which has an integrated TCP / IP stack. When it connects to a wireless router, it is widely used in networking, smart home projects. It can be used for remote monitoring of home appliances, bedroom temperature and humidity, as well as the control of home appliances by cell phone. ESP-14 also integrates a powerful STM8S003 SCM system circuit. It leads to all the pins of the STM8S003 that connect to the serial UART port of the ESP8266. Therefore, the user can write STM8 programs to control the ESP8266 and realize the intelligent home and WI-FI network functions through AT commands, especially for STM8 microcontrollers.
Shape Color: Black + Silver Quantity: 1 Material: PCB + alloy Frequency: 2.4GHz Working voltage: 2.8-3.6V Working current: 200m
"
