- Model Number:9063
- Type:integrated circuit
- Place of Origin:Guangdong, China, CN
- Brand Name:Chipskey
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V
Product Description

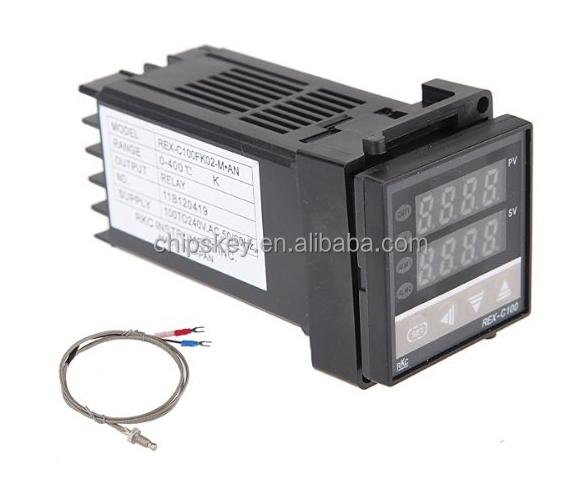

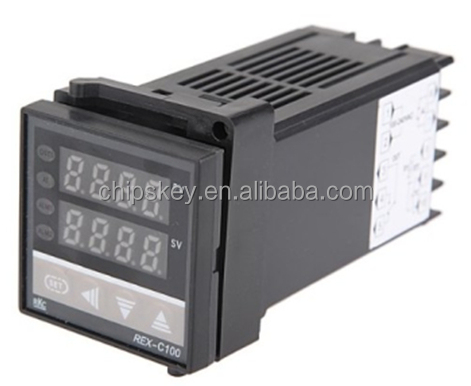

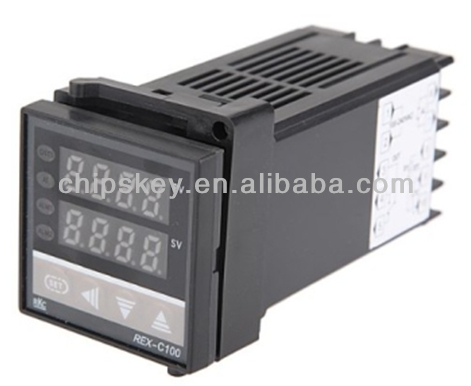

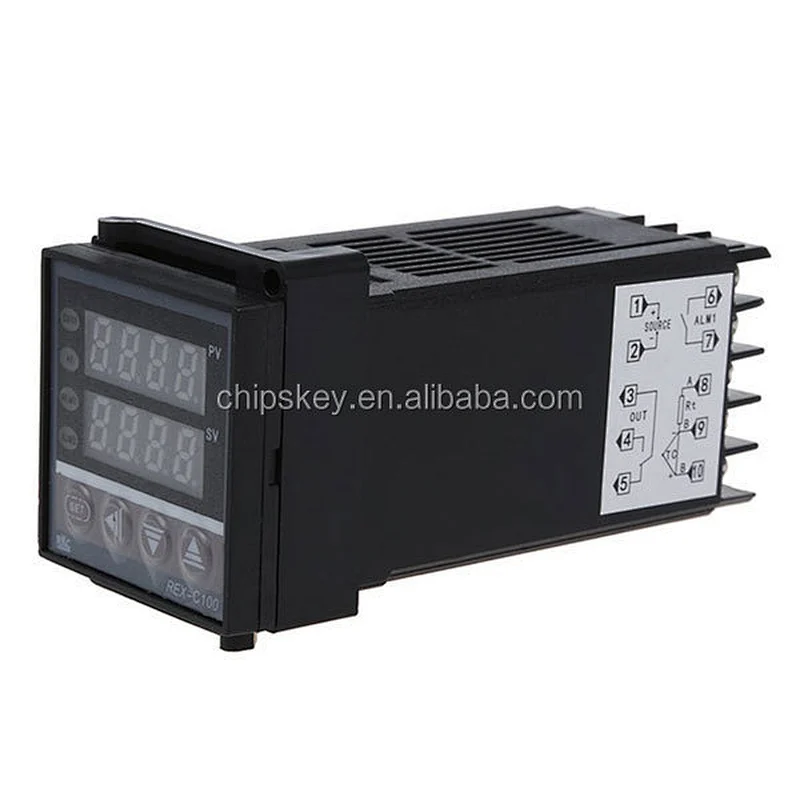

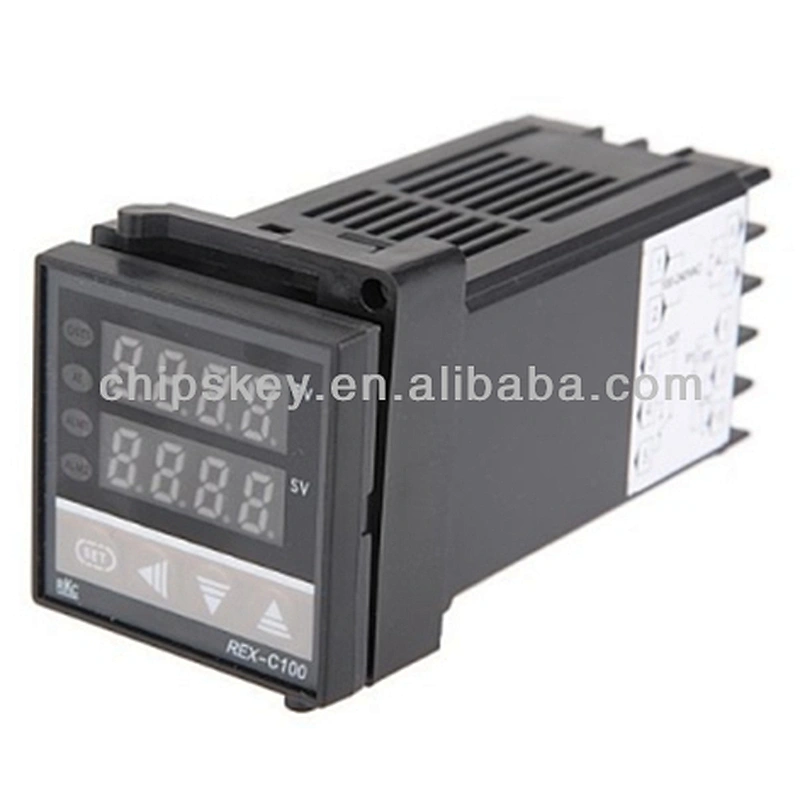

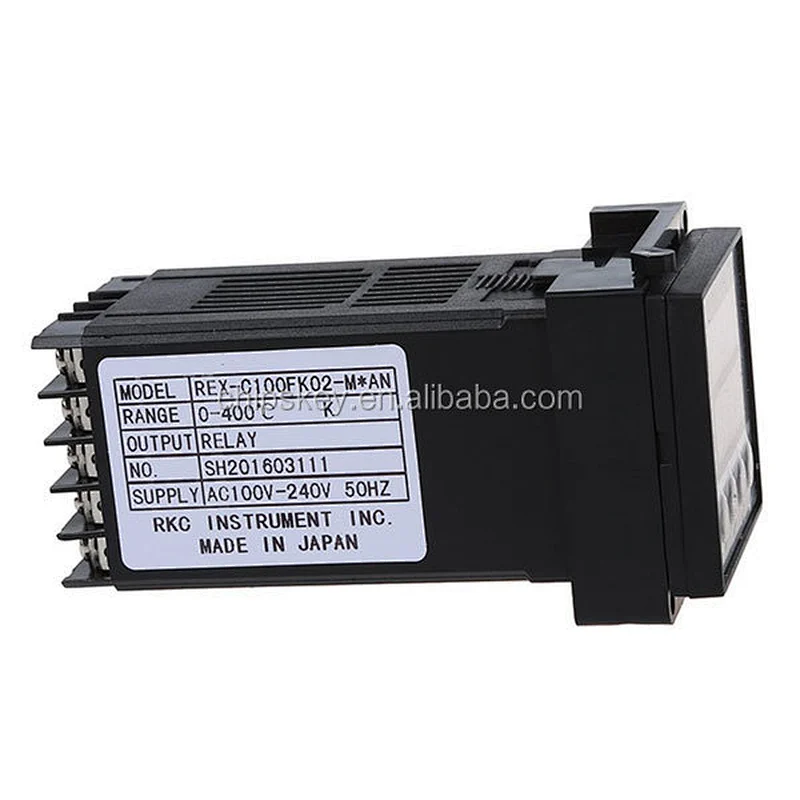

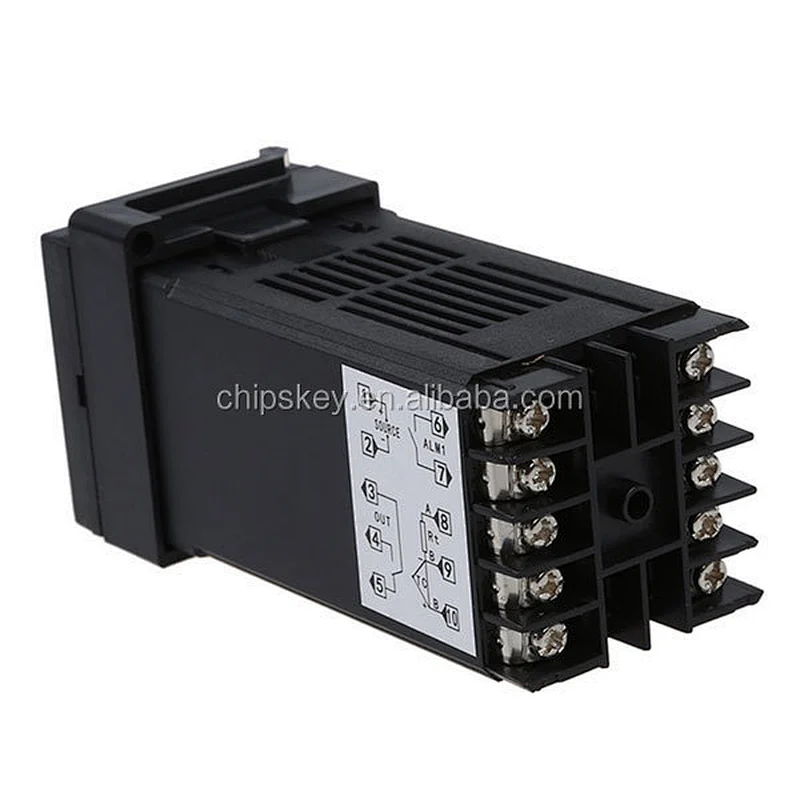

Dual PID Digital Display Temperature Controller REX-C100
Features :
Dimensions:48mm×48mm×110mm(APP)
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2¡æ£¨can be modified by software in 0~50¡æ£©
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Voltage pulse output: 0/12V (suitable for solid state relay SSR)
Alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range£º0 to 400¡æ
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50¡æ,
environment with no corrosive gas 30~85% RH
Cable Length: 1M
Sensor diameter:4.5mm
Temperature rang :0-400¡æ
Internal Insulation: Fiberglass
External Shielding: Insulated Shielding
