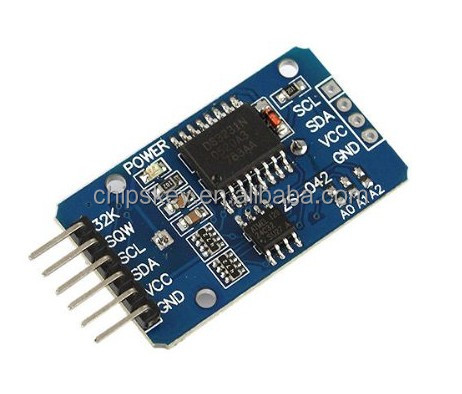

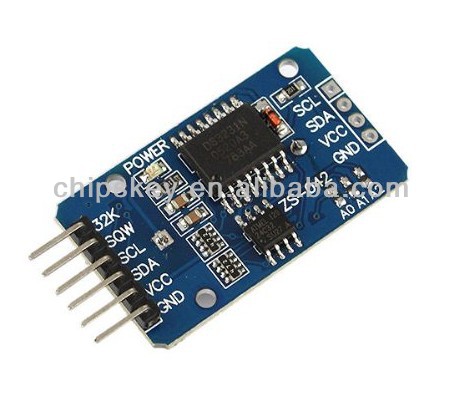

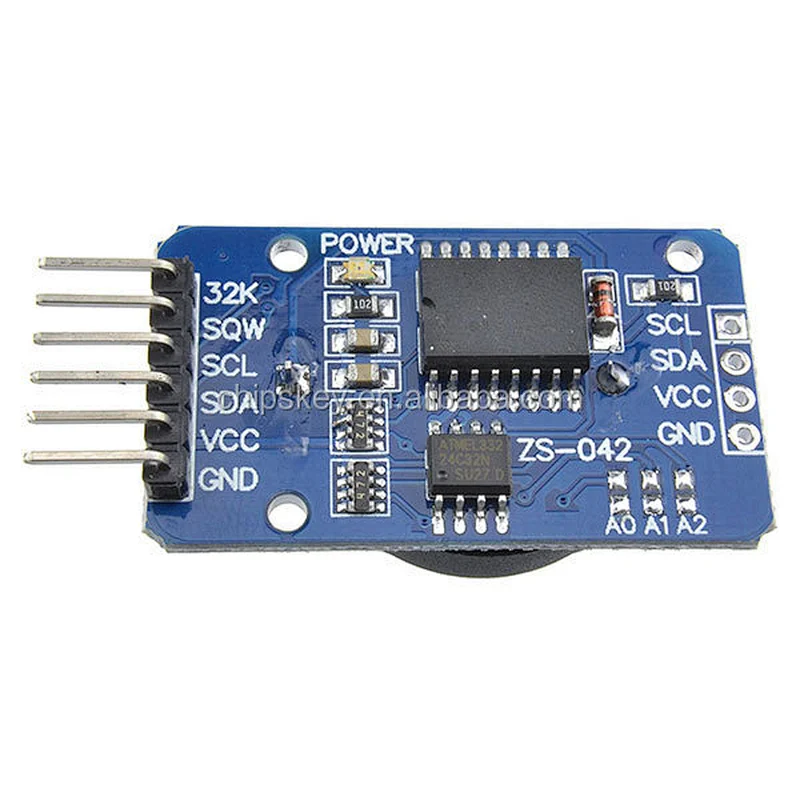

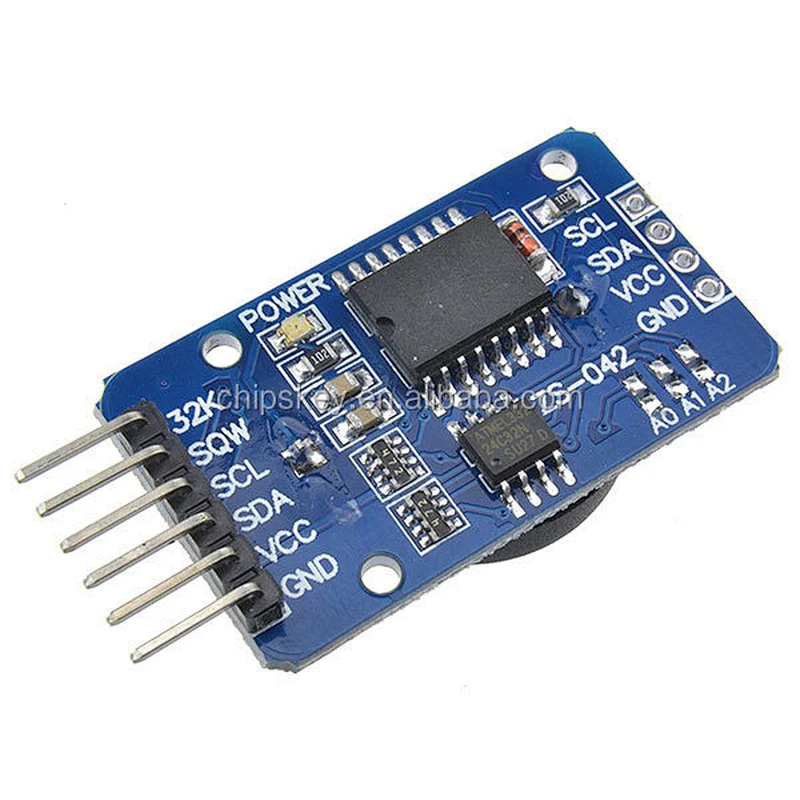

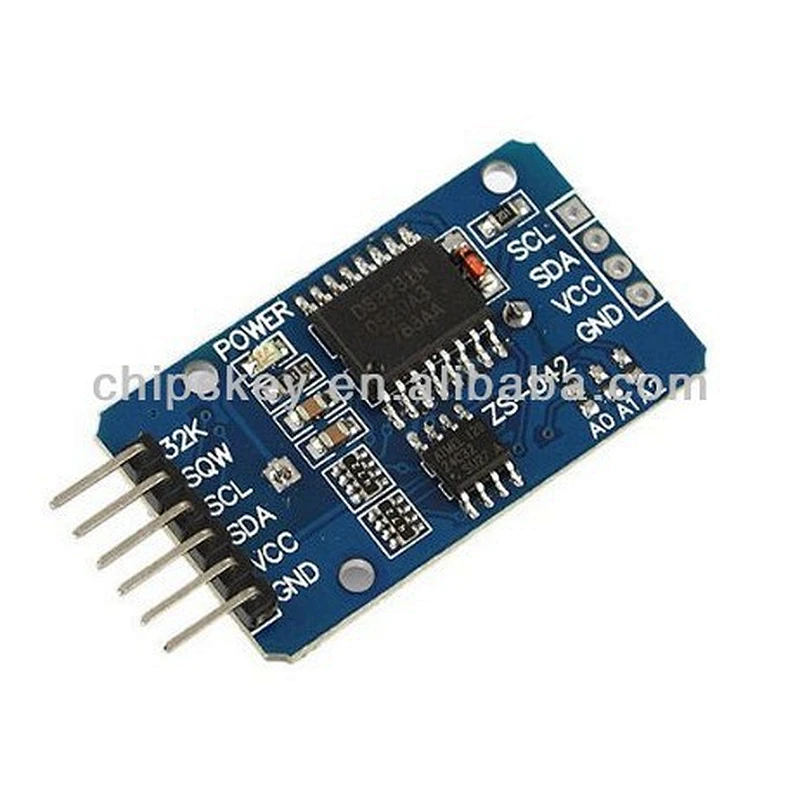

DS3231 AT24C32 IIC module precision Real time clock memory module For Arduinos

DS3231 high-precision clock module



DS3231 is a low-cost, high-precision I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, maintains accurate timekeeping when main power is disconnected. Integrated oscillator improves long-term accuracy of the device and reduces the number of components production lines. DS3231 is available in commercial and industrial temperature range of 16-pin 300mil SO package.
RTC maintains seconds, minutes, hours, day, date, month, and year information. Less than 31 days of the month, the end date will be automatically adjusted, including corrections for leap year. Clock format can be working 24 hours or 12-hour format with / AM / PM indication. Provides two calendar and alarm clock can be set to output a square wave can be set. Address and data are transferred serially through an I2C bidirectional bus.
A precision temperature-compensated voltage reference and comparator circuit monitors the status of VCC to detect power failures, provide a reset output, and automatically switches to the backup supply when necessary. In addition, / RST pin is monitored as produce μP reset manually.
In addition to high timing accuracy beyond, DS3231 also has some other features that extend the functionality of the system host and additional options. The device integrates a very precise digital temperature sensors via I2C * Interface can be accessed (as the same time). This temperature sensor accuracy is ± 3 ° C. Power switching control circuit can be realized on-chip automatic power to detect and manage the main and standby power (ie low battery) between. If the main power failure, the device can continue to provide accurate timing and temperature performance is not affected. When the main power re-power or voltage value returns to within the permissible range, the on-chip reset function can be used to restart the system microprocessor.



Module Parameters:
1 Size: 38mm (length) * 22mm (W) * 14mm (height)
2 Weight:. 8g
3 working voltage :3.3 -. 5 .5 V
4 clock chip: high-precision clock chip DS3231
5 clock accuracy within range :0-40 °C, accuracy 2ppm, about 1 minute in error
6 calendar alarm clock with two
7 programmable square-wave output
8 Real-time clock generation seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
9 internal chip temperature sensor comes with an accuracy of ± 3 °C
10 memory chips:. AT24C32 (storage capacity of 32K)
11.IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
12. IIC other devices can be cascaded, 24C32 address can be modified by a short circuit A0/A1/A2, the default address is 0x57

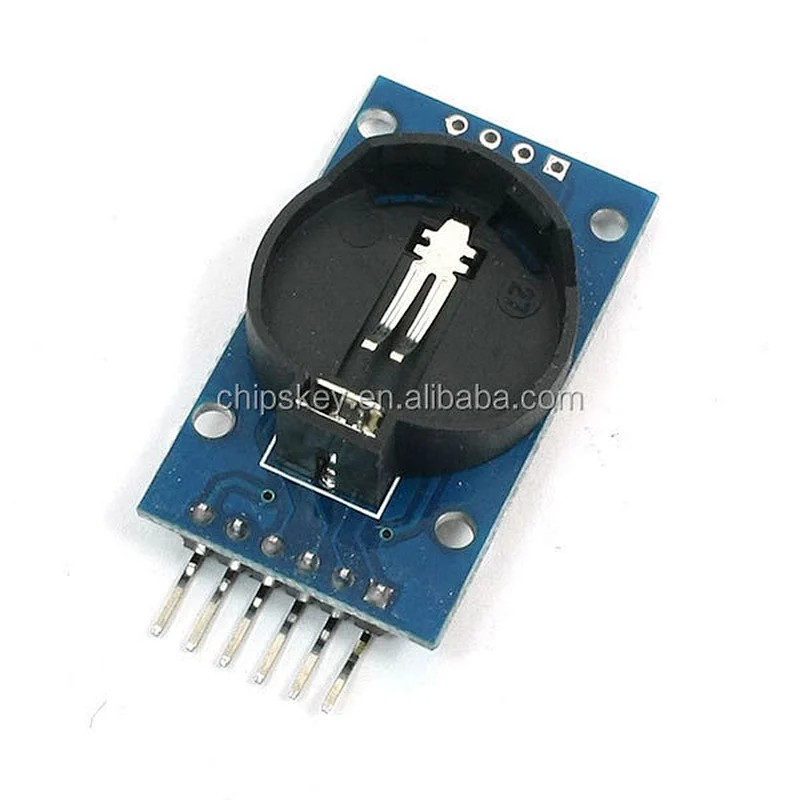

13 after with battery CR2032, to ensure the system is powered down, the clock of any course of normal walking
14 Packing: single anti-static packaging
Wiring instructions
SCL → A5
SDA → A4
VCC → 5V
GND → GND
