- Model Number:6096
- Type:Drive IC
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:DS1302 Clock 0.56 digital clock display Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

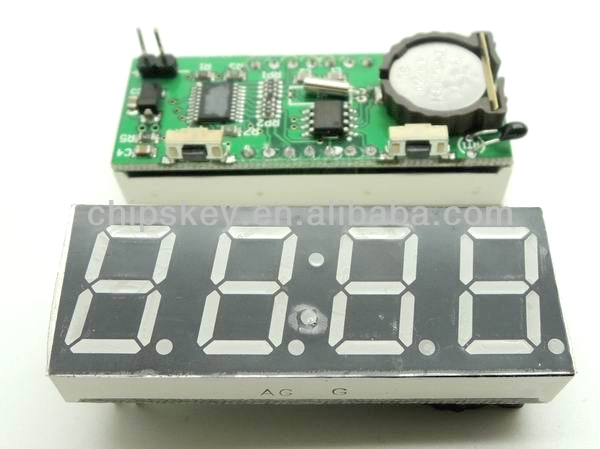

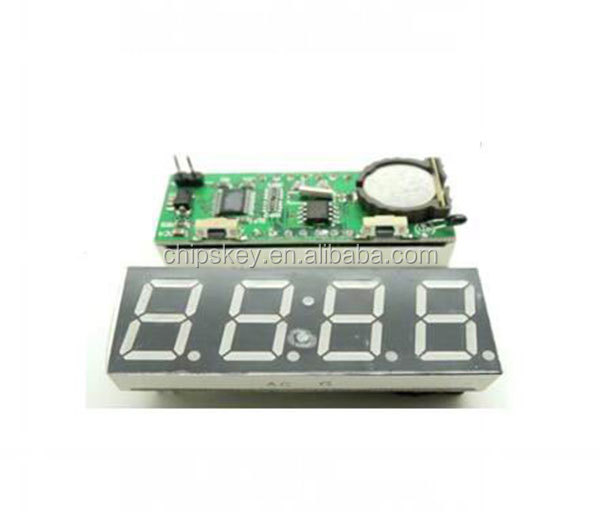

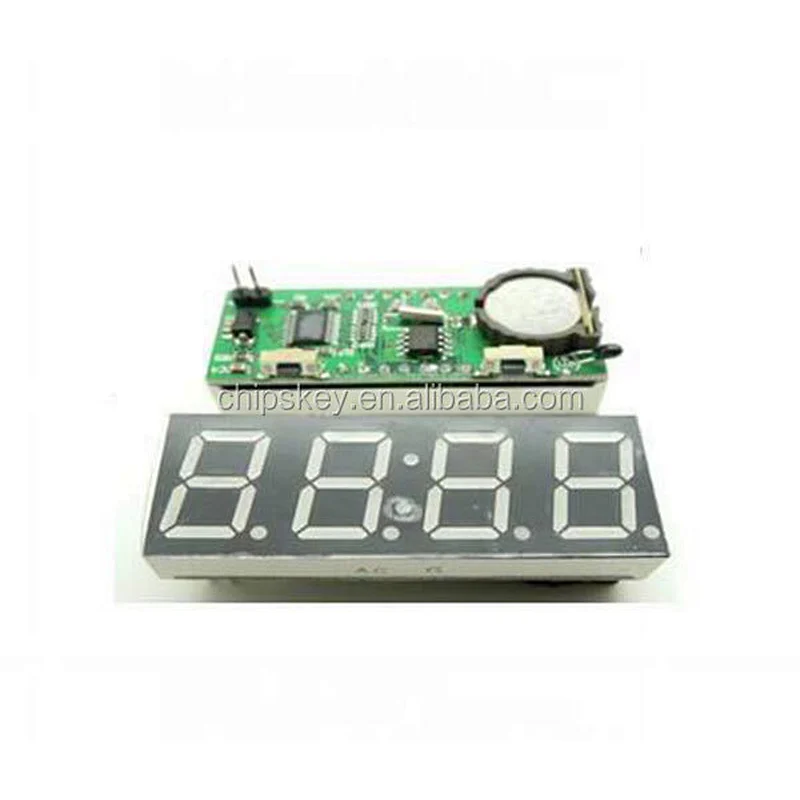

DS1302 Clock 0.56 digital clock display Module
Product Features :
1 , microcontroller -based , ultra-compact design, the length : 50MM Width : 19MM Thickness : 14MM
2 , wide operating voltage support , can work in the voltage of 3V ~ 5V . ( Note : the lower the voltage , the lower the luminance , the lower the power consumption )
3 , the number of tubes with bright , high brightness, enhanced visibility in brighter environments can also see
3 : A total of four display modes . 1 Only time ,2 Only show only the temperature 3 show voltage 4 Show Cycle time temperature voltage display .
5 , with a temperature display , the display range -9 ~ 60 °C. And with a temperature error correction setting function , set the range -5 ~ 5 °C
6 , with 24-hour timekeeping error correction settings can be set every 24 hours error correction , set the range -9 to 9 seconds . ( Note: To make this effective, you must be 24 hours of continuous power , that is, each working 24 hours before the first error correction )
7 , using the DS1302 chip timing, comes CR1220 battery back-up , power-down time to go. And use 5PPM precision crystal, precise timing , a small error
==================================
Instructions for use:
1 , to adjust the time , date, temperature error correction , error correction 24 hours
Under normal use, press the"left","minute"starts flashing , then press"Right","minute"increase , and between 59 ~ 0 cycle. Good tune"points", then"left","when"starts flashing , then press"Right","time"to increase and between 23 ~ 0 cycle."When"after a good tune , followed by"left", jump to adjust the date , in the middle of"colon"is off and"day"starts flashing , then press"Right","day"to increase and between 1 and 31 cycles . Press the"Left","month"starts flashing , then press"Right","month"to increase and between 1 to 12 cycles. Press the"Left","year"starts flashing , then press"Right","year"increase , and between 12 to 50 cycles. Press the"Left"is displayed AC: xx, xx is the value to be corrected temperature value in degrees . Press the"Right"to adjust the temperature error correction values range from -5 °C ~ 5 °C, the increase in the number of positive , negative, is reduced. After the adjusted temperature error correction , and then"left"is displayed Ad: xx, 24 hours error correction value value xx is to be corrected in seconds . Press the"Right"to adjust the timing error correction values range from -9 to 9 seconds , a positive number is increased , the negative is reduced. Press the"Left", save all data , and return to normal display.
2, switch the display mode
In non-adjusted, press the"right Botton"to switch the display mode 1 Display Time Only 2 Only Date 3 display only the temperature 4 time, alternating temperature (temperature 5 seconds 2 seconds)
And save the final model, even power on again.
