- Model Number:DM-STF4BB STM32F4DISCOVERY Cortex-M4 Shield
- Type:Drive IC
- Place of Origin:Guangdong, China, CN
- Brand Name:Chipskey
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

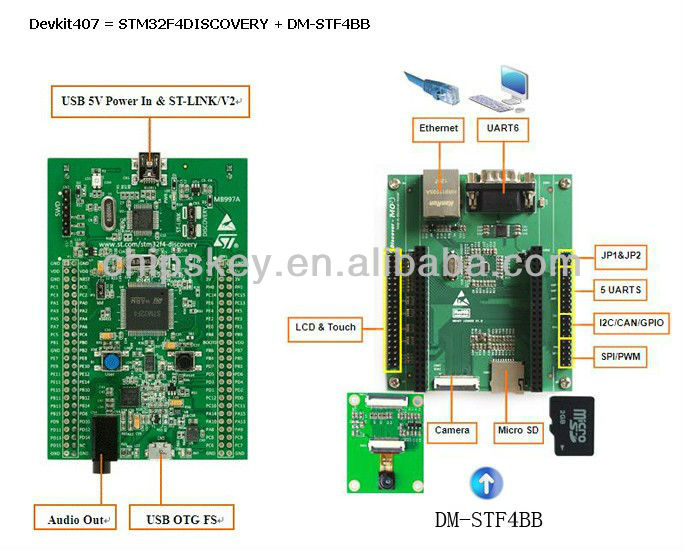

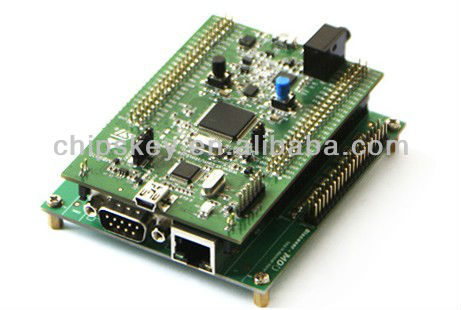

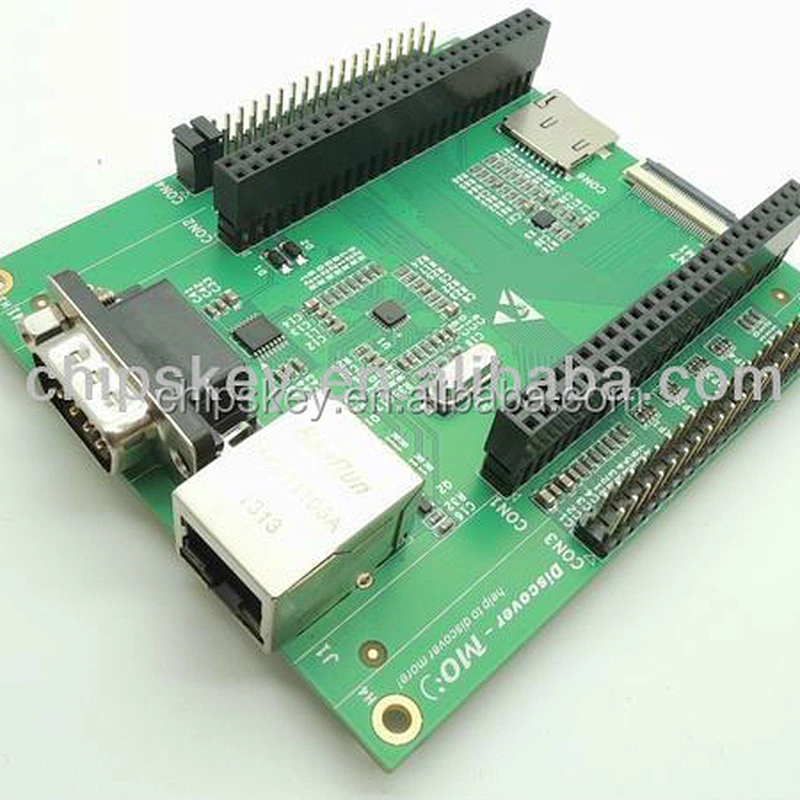

DM-STF4BB STM32F4DISCOVERY Cortex-M4 Shield

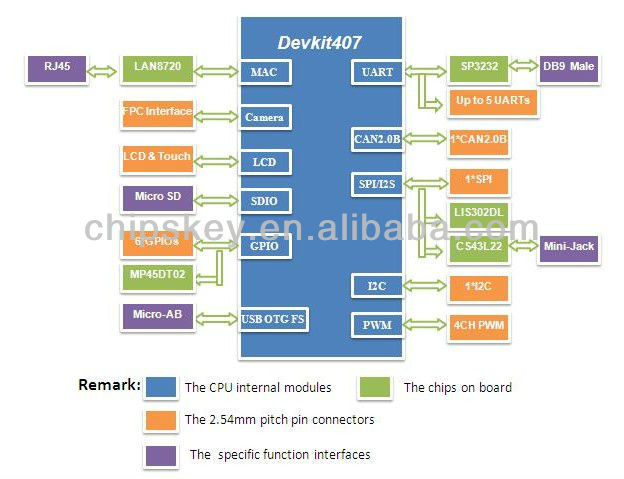

Hardware Features
Processor:
STM32F407VGT6, 32-bit Cortex-M4 core, the maximum operating frequency of 168MHz
Integrated 1 MB Flash memory, 192 +4 KB SRAM
Memory:
Micr SD card external memory expansion
Transmission Interface:
6 -channel serial
UART6: 3 -wire serial interface , RS232 level , DB9 male leads ( with Camera reuse through JP1 & JP2 selection )
A road CAN2.0B Interface ( need to expand outside the CAN transceiver )
Ethernet interface (10/100Mbps)
USB interface
1 × USB2.0 FS OTG / device / host, 12Mbps.Micro-AB -type interface
Input and output interfaces :
Debug Interface : Onboard ST-LINK/V2 Debug Interface
Motion Sensing : Onboard LIS302DL motion sensor Sensor

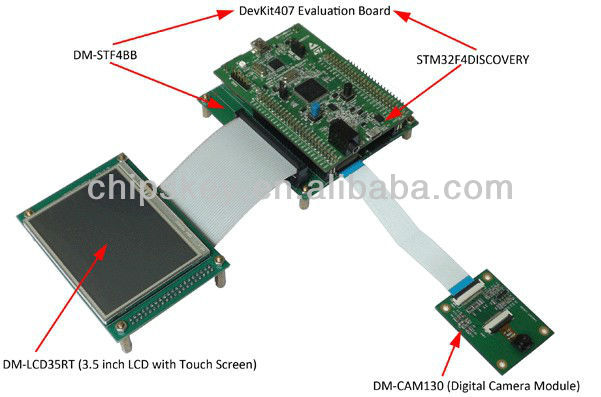

Camera interface : Supports 130W of DM-CAM130 camera module
Audio Interface:
One stereo audio output interface Mini-Jack
Onboard MP45DT02 digital microphone MEMS Sensor
LCD touch screen interface :
Supports 3.5-inch (320 * 240) TFT LCD
Supports 4 -wire resistive touch
16bit 8080 Parallel Interface
Backlight brightness adjustable
Extended Interface:
6 serial ports ( including reuse )
1 channel 4-channel PWM interface
1 channel SPI interface
A road IIC interface
6 GPIO port
Standard 5V USB power
Electrical Characteristics:
Operating temperature : 0 °C ~ 40 °C
Storage temperature : 0 °C ~ 40 °C
Electrical Specifications : 5V @ 80mA ( without LCD)
Comply with CE, RoHS Directive
