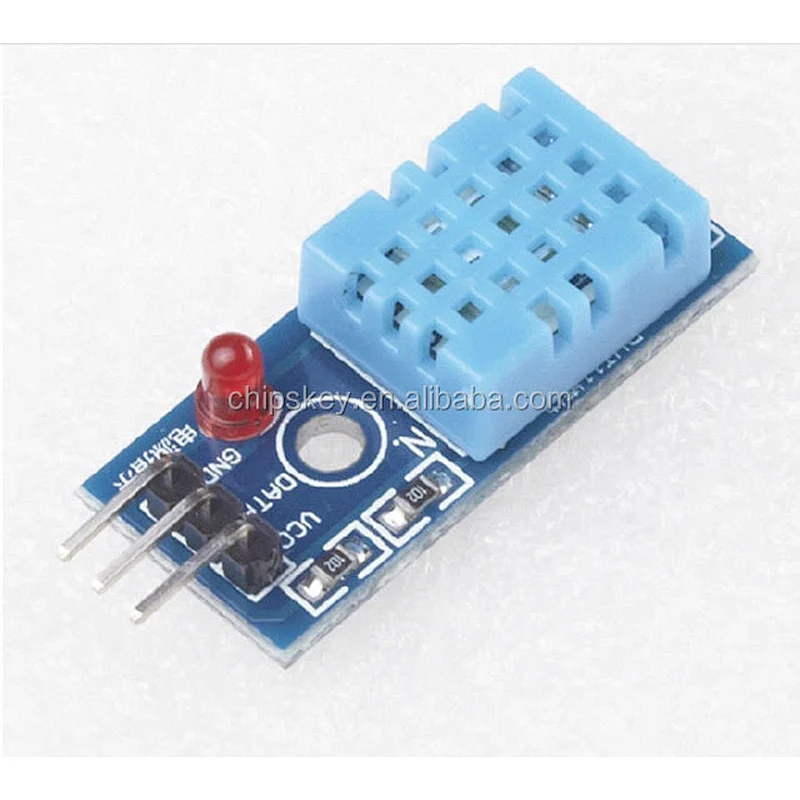

DHT11 humidity sensor MODULE

• Model Number:11B150
• Type:Sensor Development Boards and Kits
• Place of Origin:China, CN
• Category:IC
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C

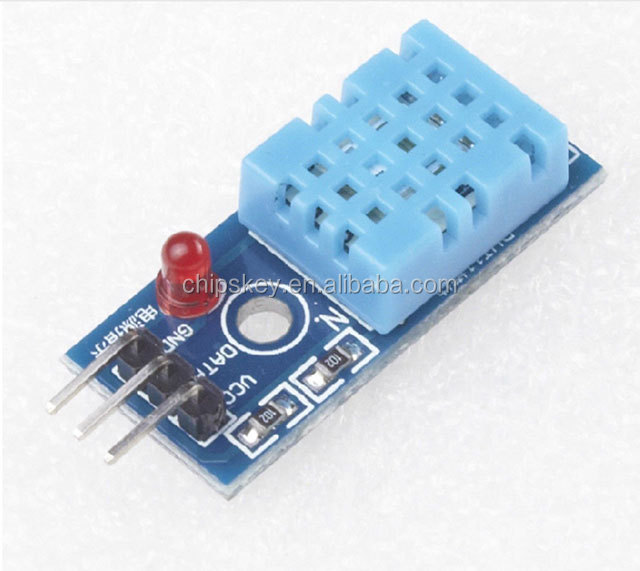

DHT11 humidity sensor MODULE

First, the dimensions: length 30.5mmX high 7.2mm wide 12mmX
Second, the Sensor Model: DHT11 temperature and humidity sensor
Third, the working voltage: DC 5V

Four characteristics:

1, humidity measurement range: 20 --- 90% RH

2, the humidity measurement accuracy: ± 5% RH

3, the temperature measuring range: 0 --- 50 ℃

4, the temperature measurement accuracy: ± 2 ℃

5, the working voltage: DC5V / 3.3V

6, the digital signal output

7, data port pull-

8, with 3mm fixing screw holes for easy installation

V. wiring methods:

VCC → 3.3V / 5V power supply positive

GND → negative power supply

DATA → microcontroller IO port

Tips: Do not reverse VCC and GND, reverse will burn!
