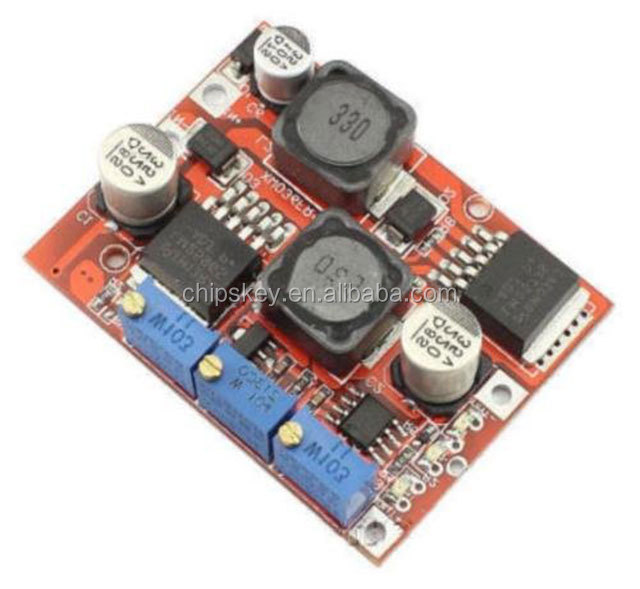

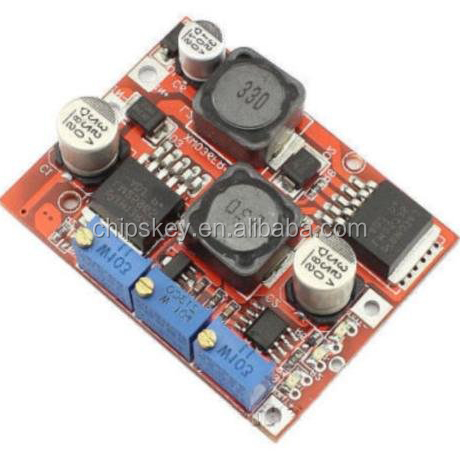

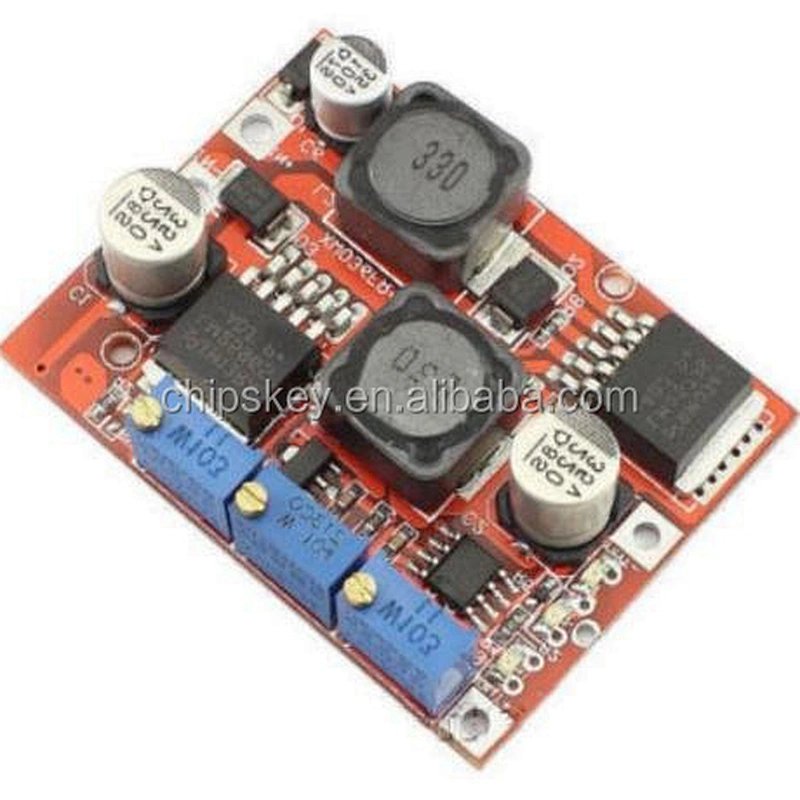

DC-DC Step Up Down Boost buck Voltage Converter Module LM2577S LM2596S Power

• Model Number:13D028
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Supply Voltage:1.5V-6V
• SKU:13d028

DC-DC Step Up Down Boost buck Voltage Converter Module LM2577S LM2596S Power

Module Properties: non-isolated step-down constant current, constant voltage module (CC CV) charging module
Module Parameters
Input voltage: 4-35V
Output voltage: 1.25-25V continuously adjustable (default shipping voltage 4.2V current 1A, For other voltage and current can be adjusted themselves (or tell the shopkeeper)
Adjustment method: first correct input power (between 4-35V) and then a multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise)
Output Current: 12V turn 5V 2A maximum
Output Power: Max 15W (such as high temperature, please enhance heat dissipation)
Conversion efficiency: 80% (output voltage, the higher the efficiency)
Operating temperature: Industrial grade (-40 ℃ to + 85 ℃) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
Full temperature: 45 ℃
