- Place of Origin:Guangdong, China, CN
- Brand Name:Chipskey
- Model Number:11B166
- Category:IC
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C

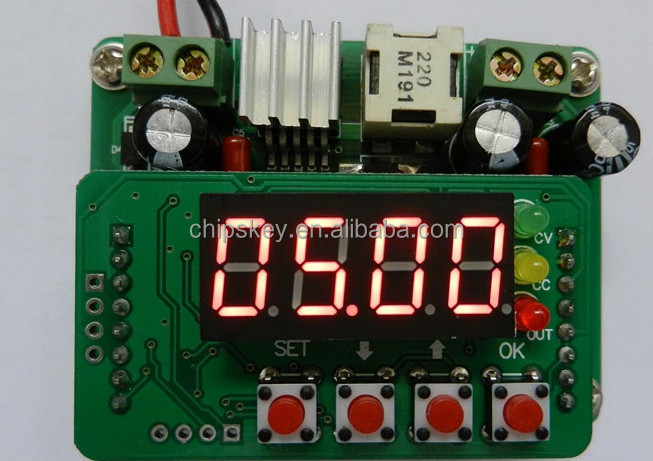

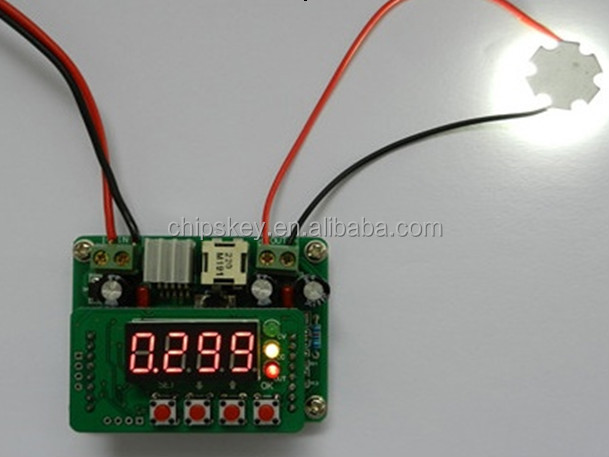

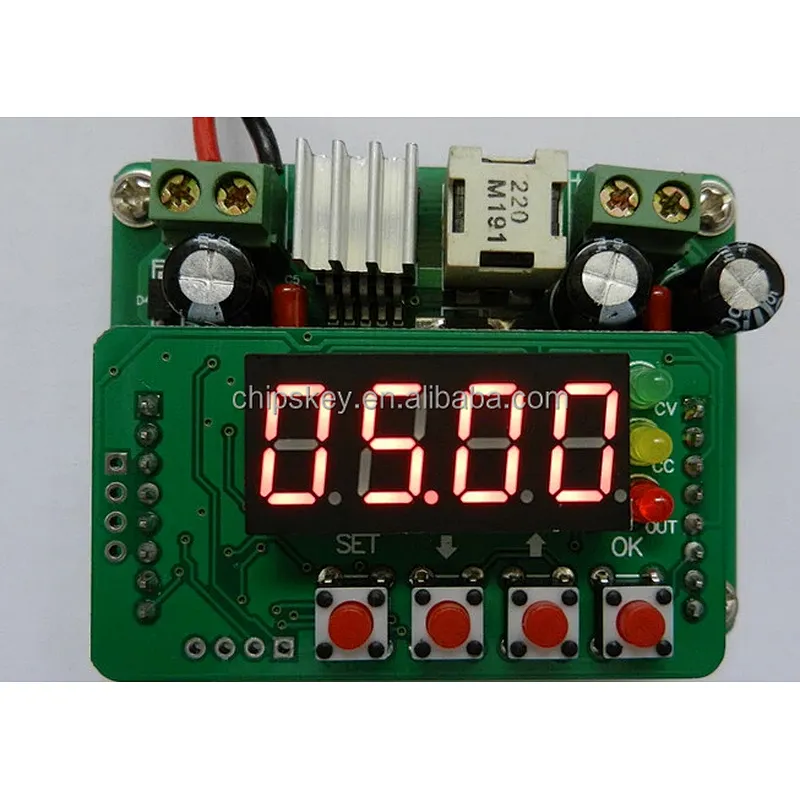

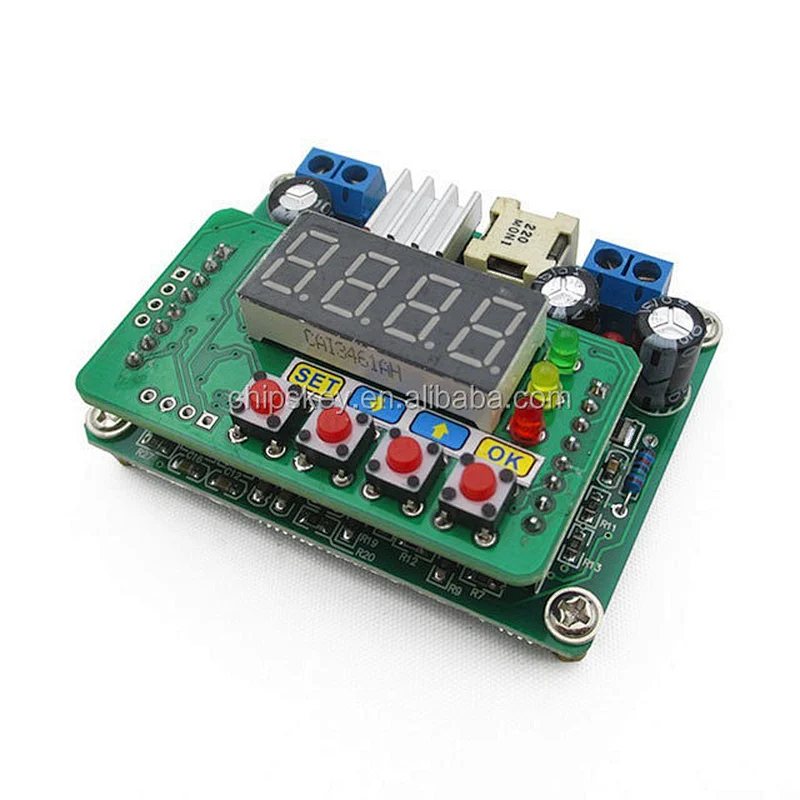

DC-DC Constant Voltage & Current Buck Module B3603 CNC LED Driver High Precision
"product description
Input voltage: 6v ~ 40v (input voltage must be higher than the output voltage 1.5v above).
Output voltage: 0 ~ 36v. Output voltage and current resolution: 0.01v, 0.001a.
The maximum output current of 3a, 2a current stability, long time continuous high-power work needs to strengthen the cooling.
The use of advanced microprocessors, can accurately adjust the output voltage and current, with memory, can store 10 sets of parameters. The use of high quality lm2596s-adj as a power device, with external precision op amp cv and cc loop, greatly improving the overall performance of the module. The use of flat enamel wire wound high-current inductors, making the module's output performance is very good, the output current exceeds 2a, the inductor is almost no fever. 4 high-brightness digital tube, real-time display output voltage, current, power, capacity and other parameters, you can manually switch the display, you can also set the automatic wheel."
