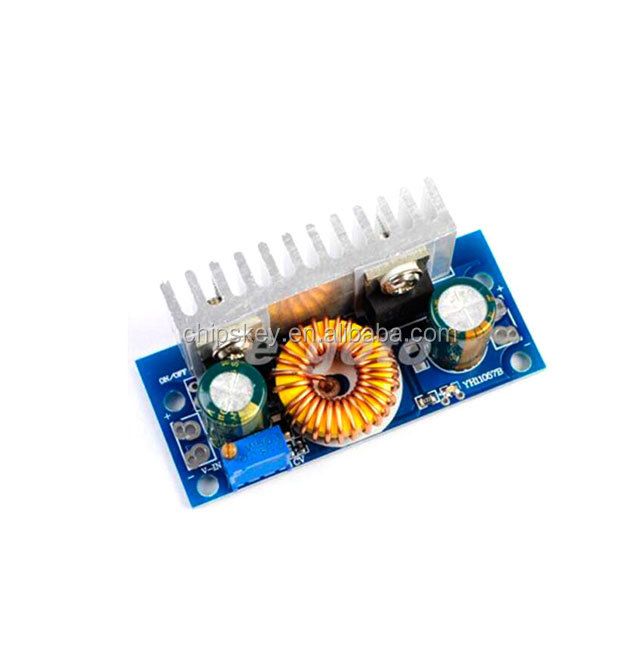

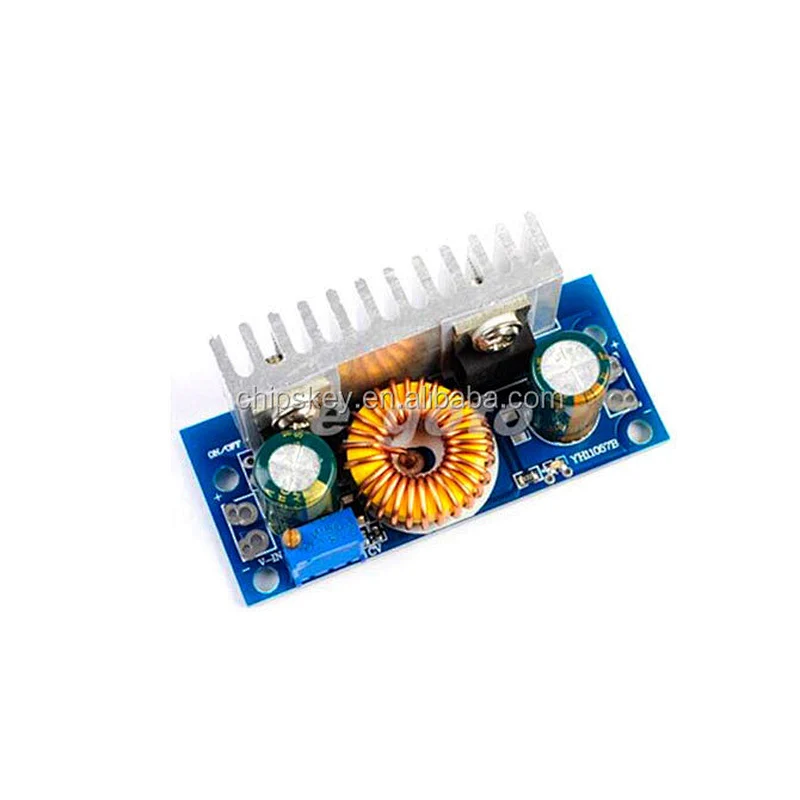

DC-DC Boost wide voltage car laptop power supply module

• Network:other
• Customized support:other
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:25053
• SKU:25053

DC-DC Boost wide voltage car laptop power supply module

"description:
Module Properties: Non-Isolated Boost Module (BOOST)

      Input voltage: 4.5-32V

      Input current: 0-6A

      Output voltage: 5-42V continuously adjustable (default output 12V)

                         5-42V fixed output

                        The default shipping adjustable output

      Output current: 0-6A (input, output and pressure, the greater the pressure the smaller the output current)

      Operating temperature: -40 to +85 degrees

      Working frequency: 180KHz

      Conversion efficiency: up to 94% (input and output voltage efficiency, current, pressure)

      Short circuit protection:

      Over-temperature protection: (shutdown output after over-temperature)

      Input Reverse Polarity Protection: None (If necessary, input the string into the diode)

      Installation: 4 3mm screws

      Connection: Welding output, (V-IN is input, V-OUT output)

      Module size: 60mmx30mmx20mm

       Weight: 40 grams
"
