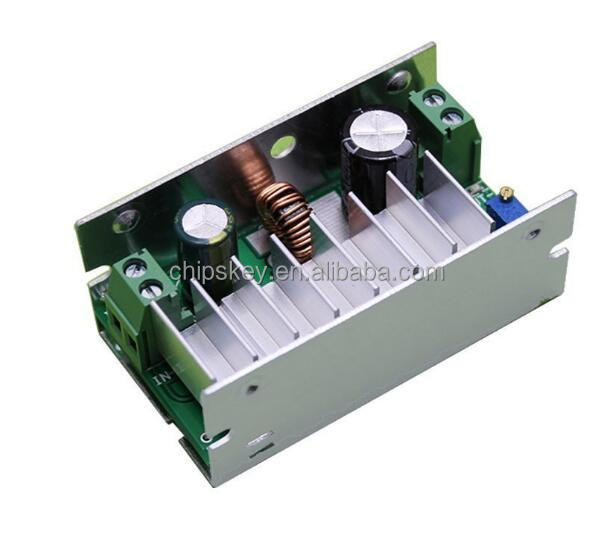

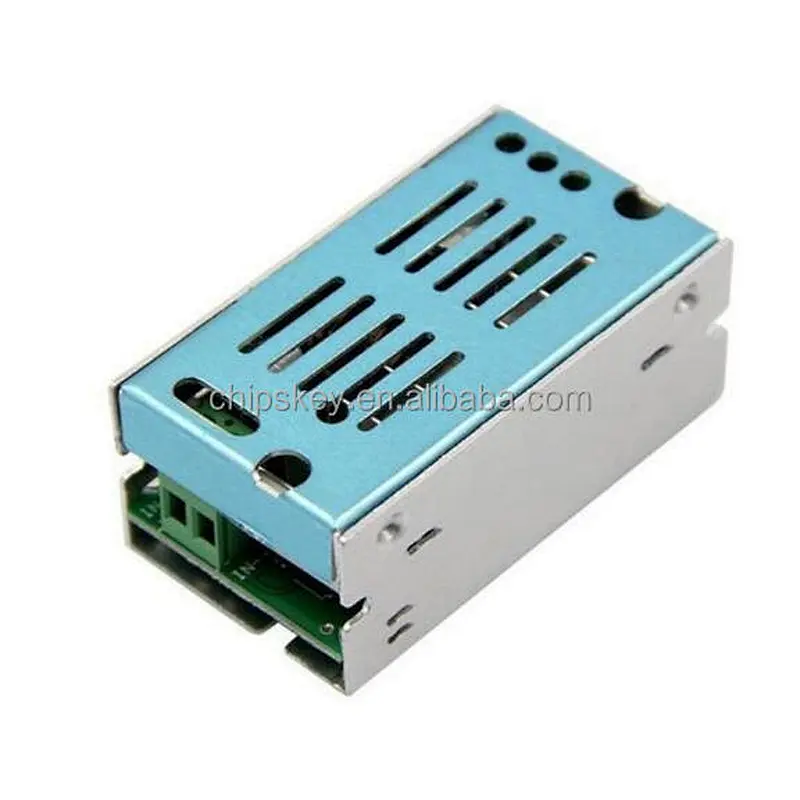

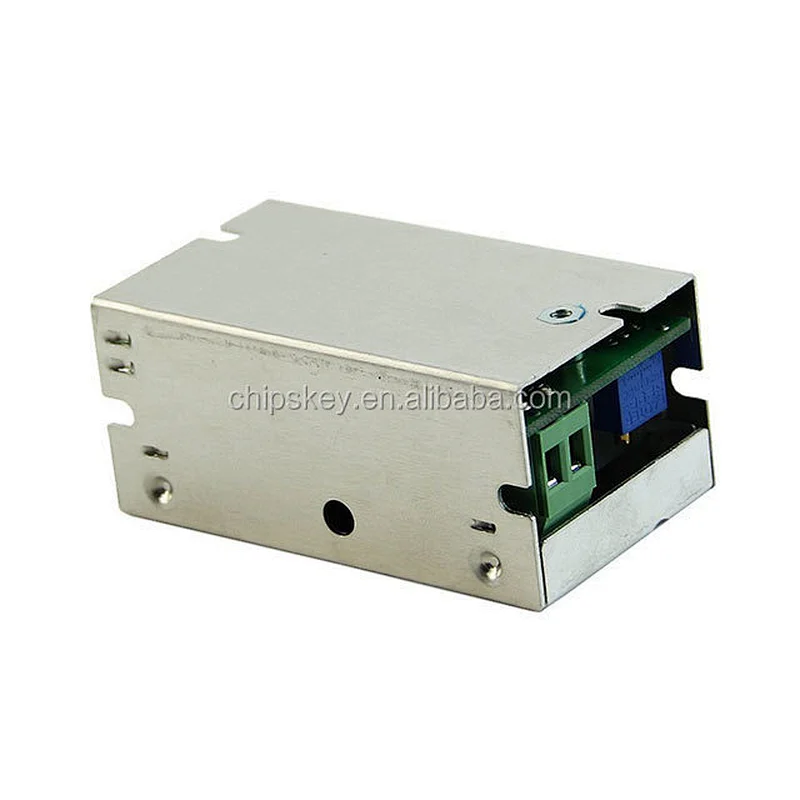

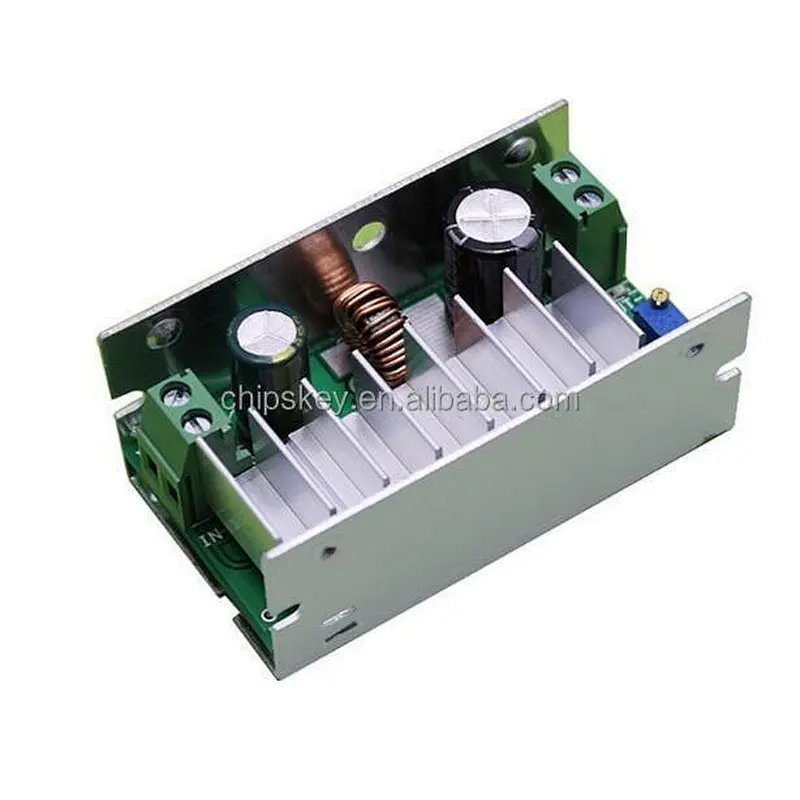

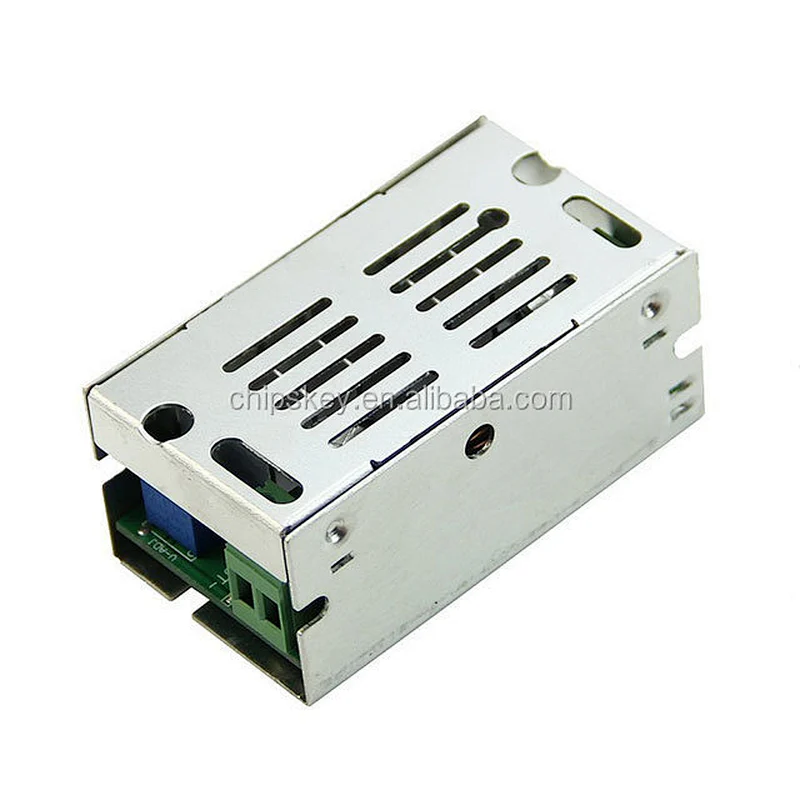

DC 6-35V Boost Up DC 6-55V 200W Power Module With Aluminum Shell Power Coverter Module

• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:27130
• sku:27130

Characteristic parameters:

1, the input voltage: DC 6 ~ 35V

2, the output voltage: DC 6 ~ 55V (Note: This board is the boost plate, the output voltage can only be greater than or equal to the input voltage)

3, conversion efficiency: 97.6% (input 32V output 45V / 3A measured, the efficiency of the input voltage and output voltage and current related)

4, the maximum input power: 200W (input voltage greater than 30V to reach the maximum power)

5, the maximum input current: 10A (long hours of continuous work, please leave a margin)

6, the maximum output current: 7A (long time continuous work please leave a certain margin)

7, module size: 70x39x32 mm (length x width x height)
