- Model Number:10A092
- Type:Power Management Development Boards and Kits
- Place of Origin:China, Italy
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V
"Product Features
DC-DC boost converter module with high voltage alarm function,

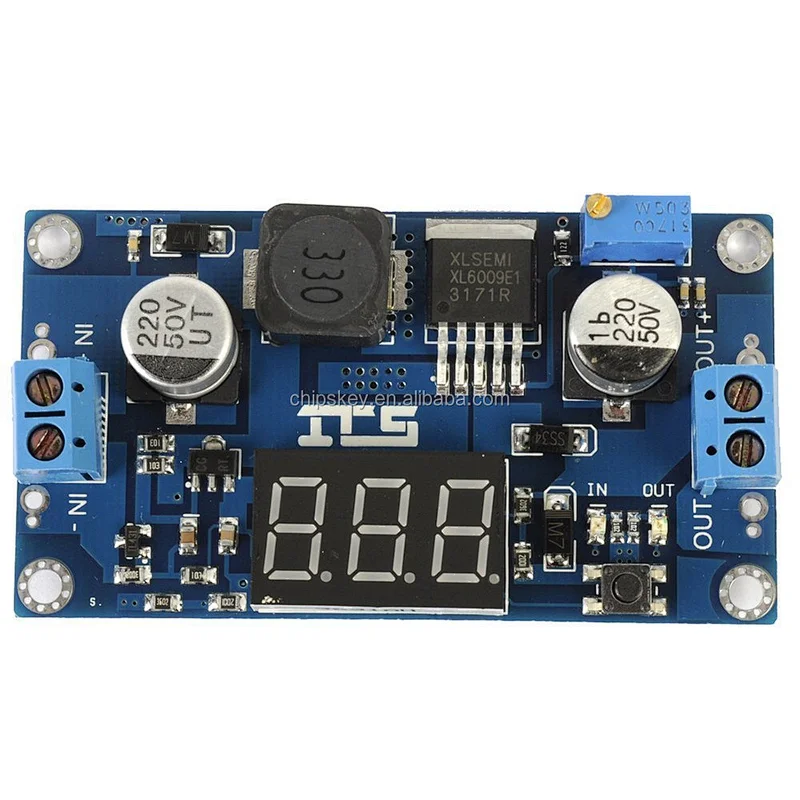

Equipped with XL6009 chip better than the LM2577, higher input current (4A), switching frequency (400KHz) and conversion efficiency (94%)
3-bit red LED shows input / output voltage and indication and calibration functions, easier to identify voltage parameters
Input Voltage: 4.3V-32V, Output Voltage: 5V-52V, Module Size: 69.8 X 38mm / 2.75X1.50inch (L * W)
Delivered by tracking information and electronic packaging for 7-17 days delivery time
product description

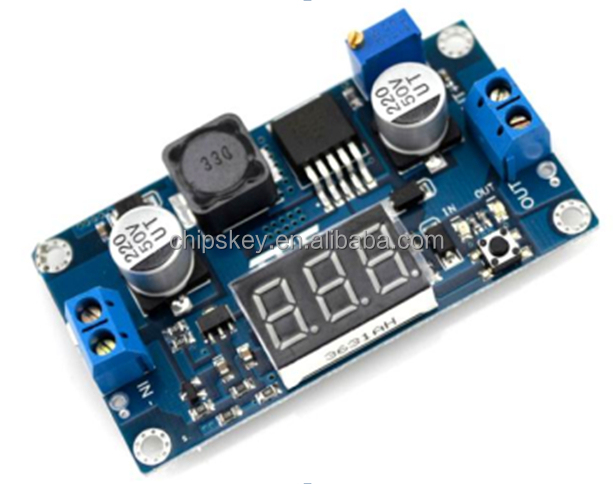

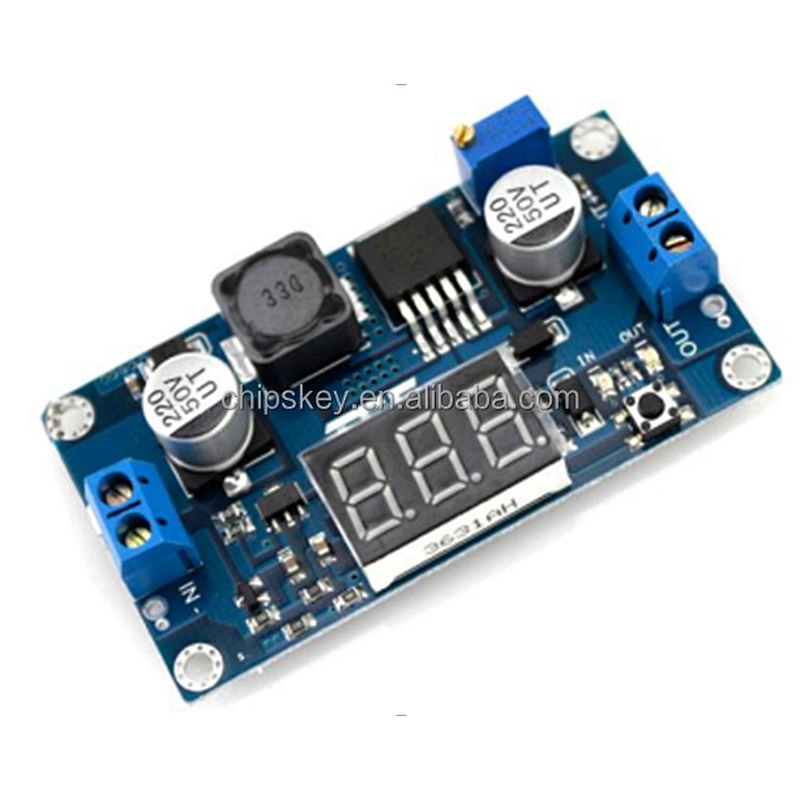

Adjustable digital DC-DC boost regulator module with XL6009 boost chip, compared with the LM2577, high switching frequency, high conversion efficiency, current input performance. The 3-digit red LED shows the input / output voltage, allowing you to easily identify voltage parameters. It can be used as your solar panels DIY adjustable voltage DC power supply, car battery charging.
Product Specifications:
Input voltage: 4.3V-32V
Output voltage: 5V-52V
Maximum input current: 4A
Maximum transmission efficiency: 94%
Switching frequency: 400KHz
Output ripple: 50mV

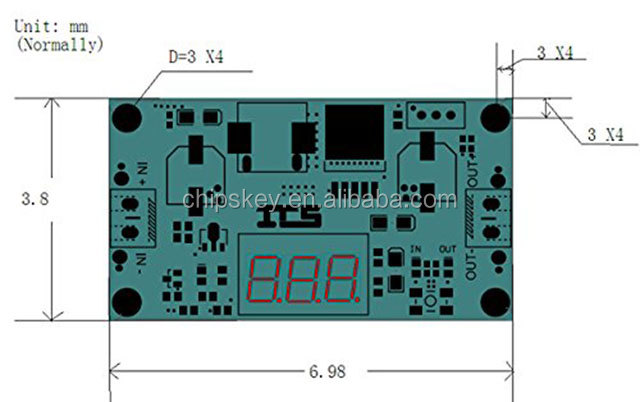

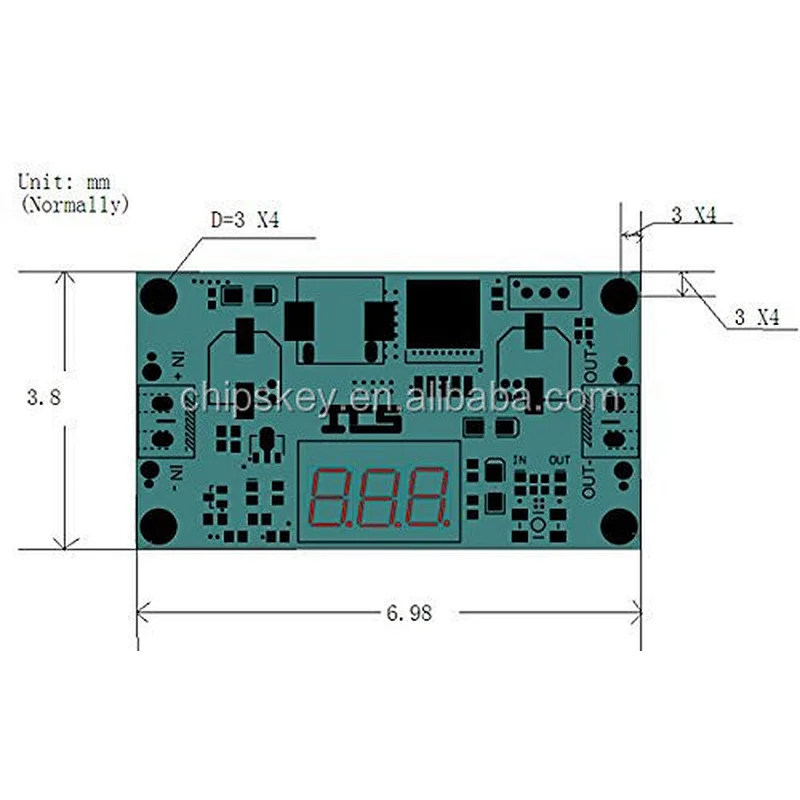

Module Size: 69.8 X 38mm
Button Description:
Input / Output Voltage Measurement Error Calibration: Press the button and hold for 4 seconds to release. The""IN""indicator is on (calibration input port) and the LED shows the calibration value (default is 0.0). You can short press the button to change the value ~ 0.5V), after setting, press the button, the last 2s, will enter the output port calibration, the same process to input calibration. After setting, press and hold the last button for at least 2 seconds to save the setting.
2. Display switch: Press the button for 1 ~ 4, you can turn the LED display on / off."
