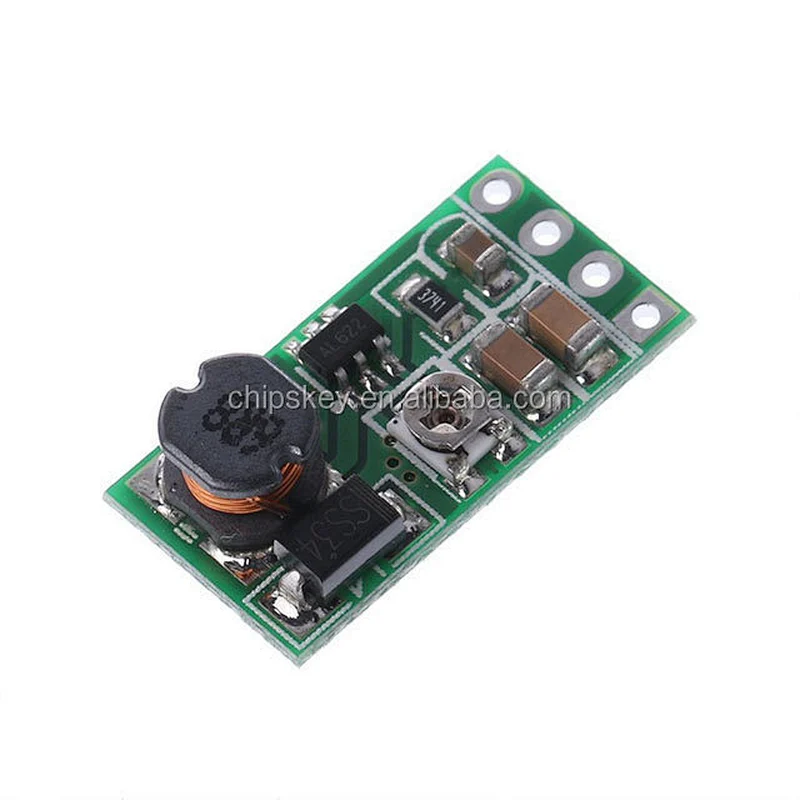

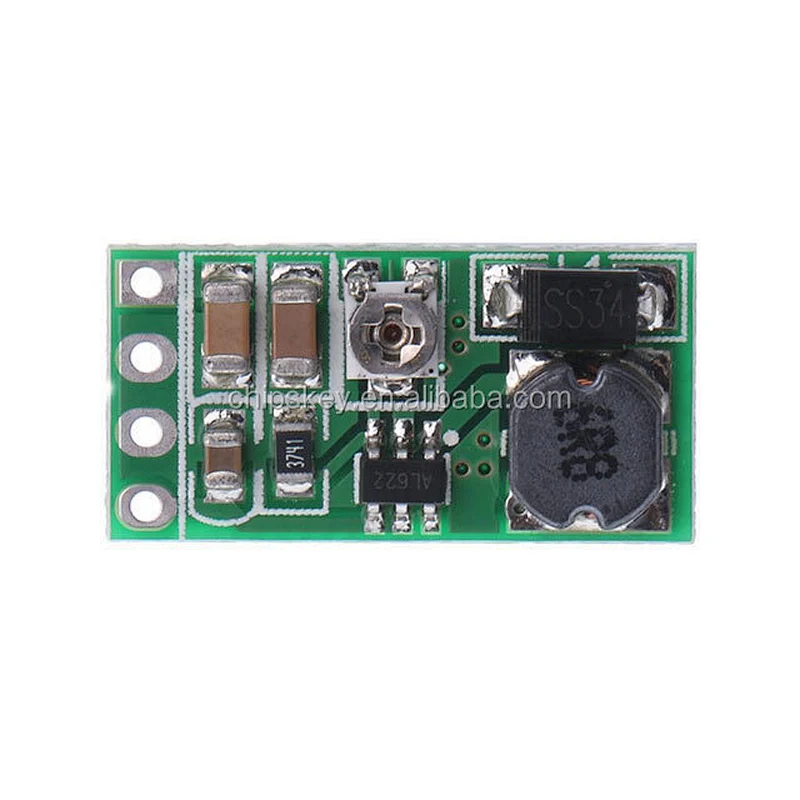

DC 3.3V 3.7V 5V to 6V 9V 12V Adjustable Step-Up Boost Voltage Regulator of Power Supply Module

• Model Number:27106
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• SKU:27106

Function parameter:

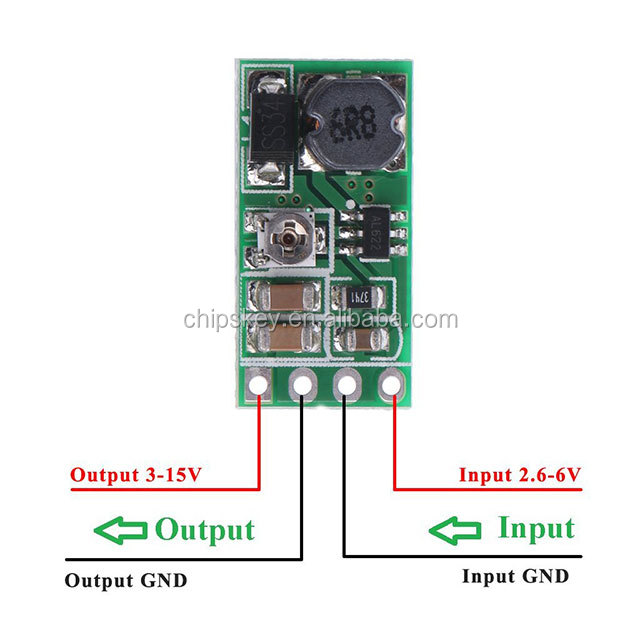

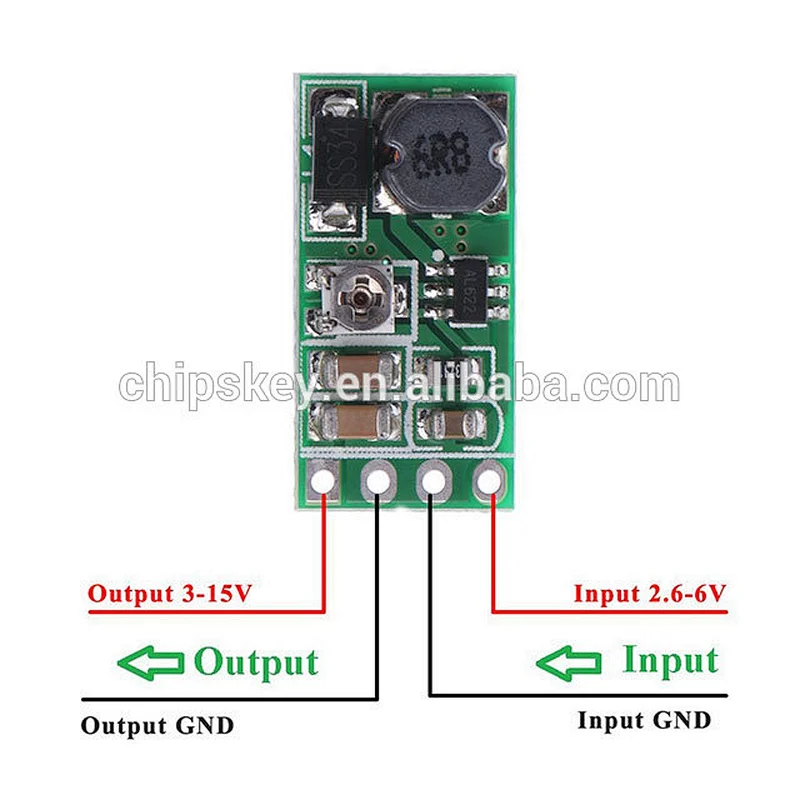

Input voltage 3-6V; Output voltage 12V + -0.6V
Maximum input current: 1.2A
Long time input current: 1A
Conversion efficiency: 80-90%

Starting voltage 2.8V, the output current 50MA
Input 3V 1A; Output 12V 220MA
Input 3.3V 1A; Output 12V 250MA
Input 3.7V 1A; Output 12V 280MA
Input 4.5V 1A; Output 12V 340MA
Input 5V 1A; Output 12V 370MA
Input 6V 1A; Output 12V 450MA

DC-DC boost converter module, the operating frequency 1.0MHZ, the typical conversion efficiency of 85%

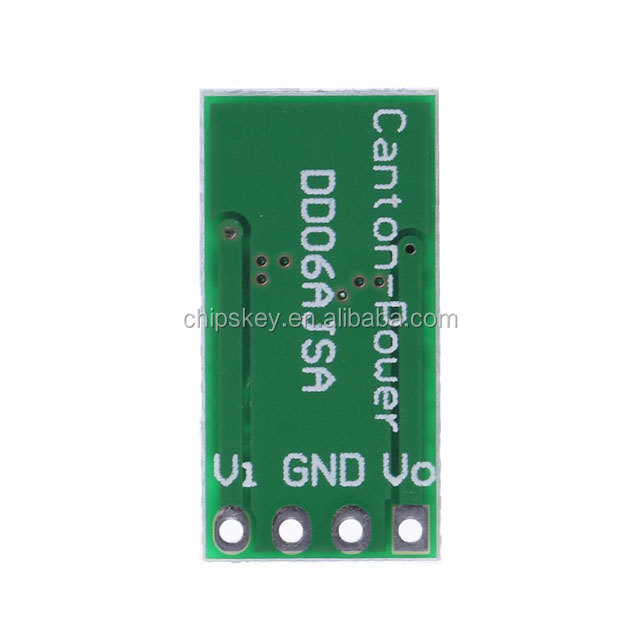

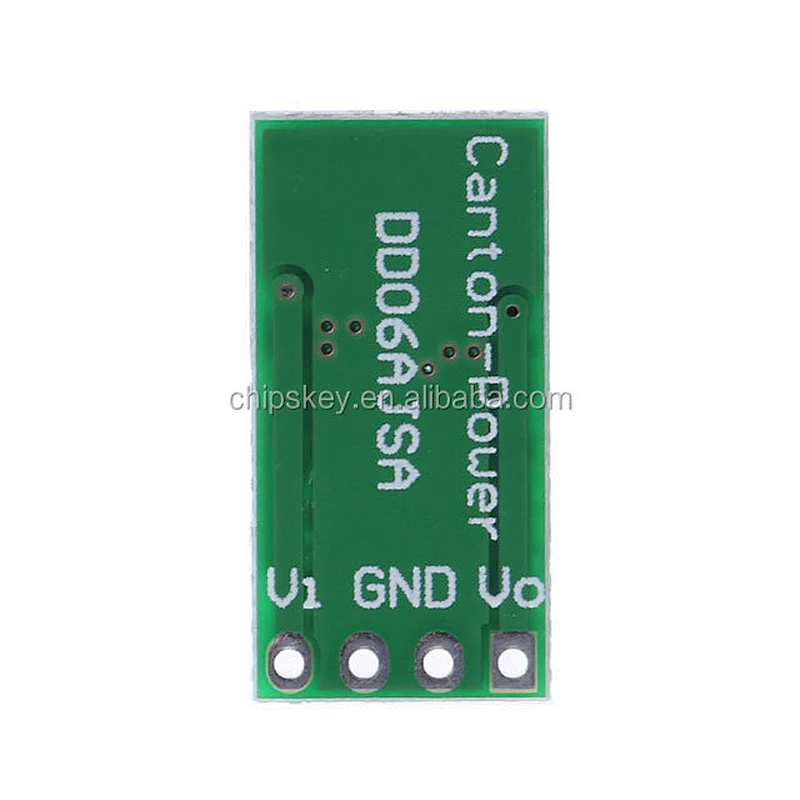

Pins 2.54MM pitch

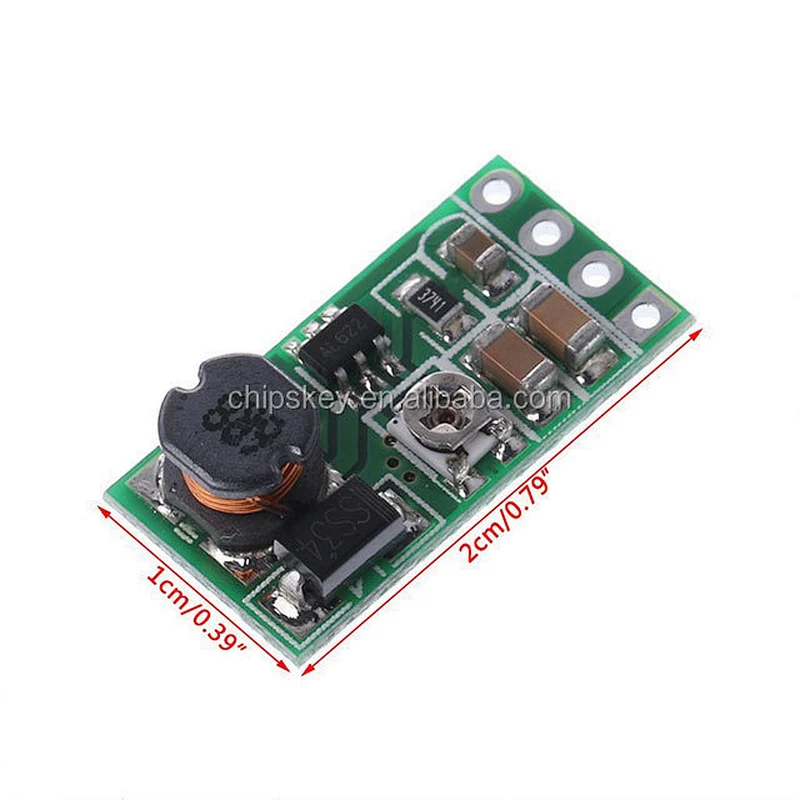

Size: 20.5mm x 10.5mm x 5.6mm (very small)
Weight: Approx. 1.4 g (very light)

This is the voltage boost converter module, the use of time must comply with the following conditions:
1 input voltage can not be greater than the nominal voltage, otherwise it will burn out the module
2 Input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage.
3 output load can not be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage.
