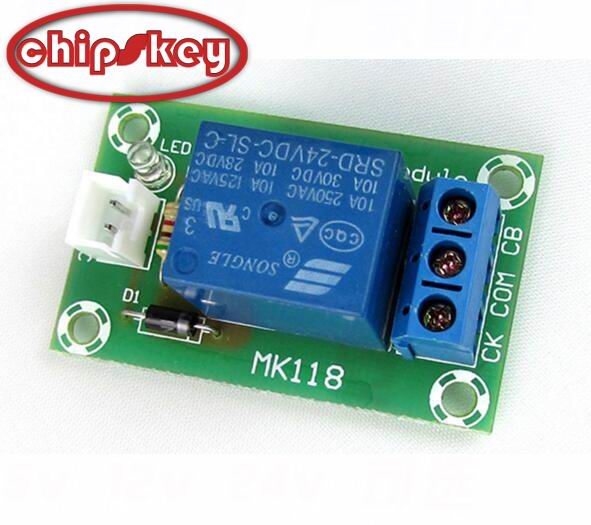

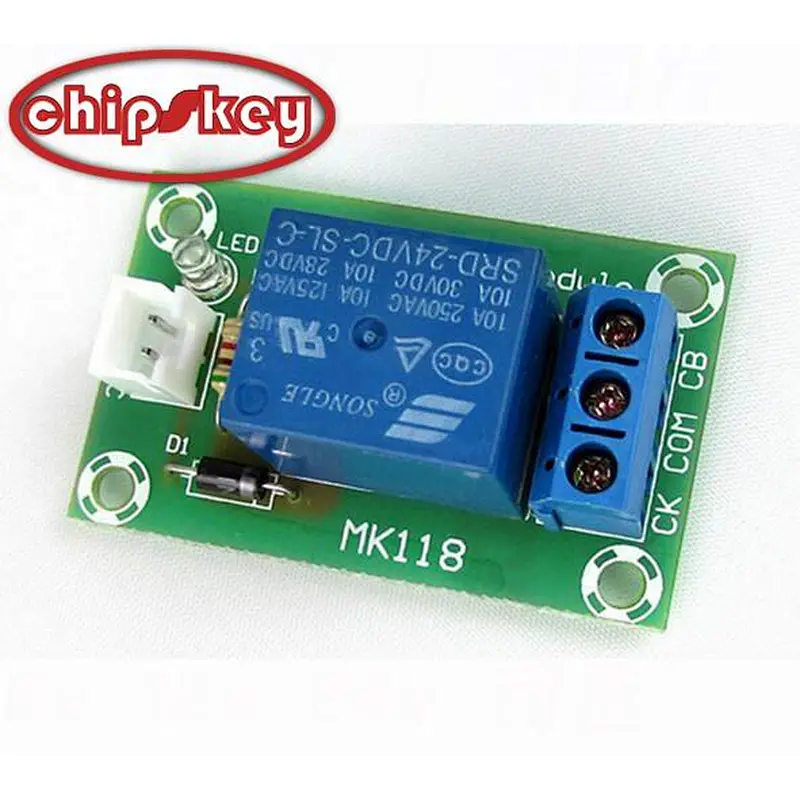

Chipskey XH-M118 relay module 5V 12V 24V 1channel 10A

• Model Number:XH-M118
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• SKU:30079
• Brand:chipskey

Chipskey XH-M118 relay module 5V 12V 24V 1channel 10A

Can control the AC 10A 250VAC DC 10A 30VDC load
All the way relay control module 5v12v24v optional
Connect the power, the relay pull, light is on

Output interface has three: ck normally open port

Cb normally closed port

Com public end

Reverse protection, reverse connection will not damage the module
When power is on, the common terminal is connected to the normally closed terminal, and the common terminal is connected to the normally open terminal after the power is turned
