- Model Number:6028
- Type:integrated circuit, Drive IC
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- D/C:DUE R3
- Package:DUE R3
- Lead Free Status:Lead free / RoHS Compliant
Product Description

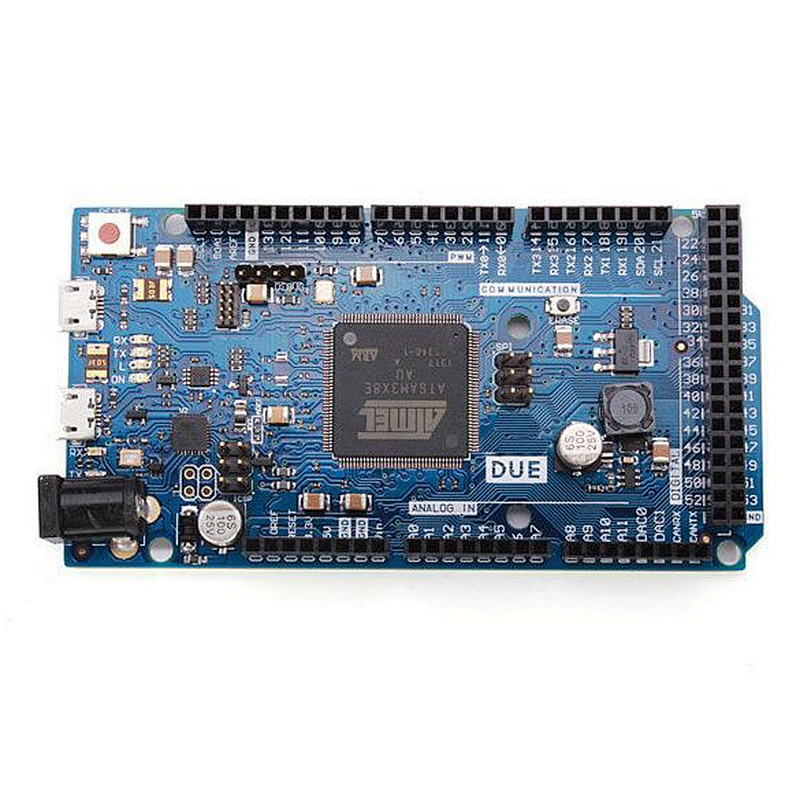

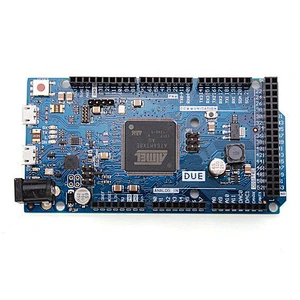

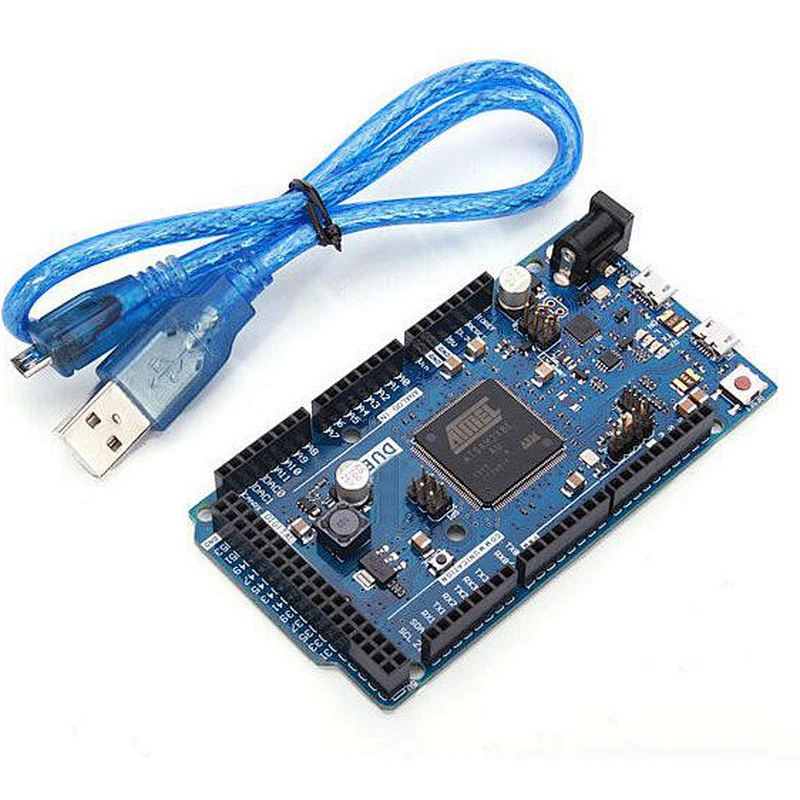

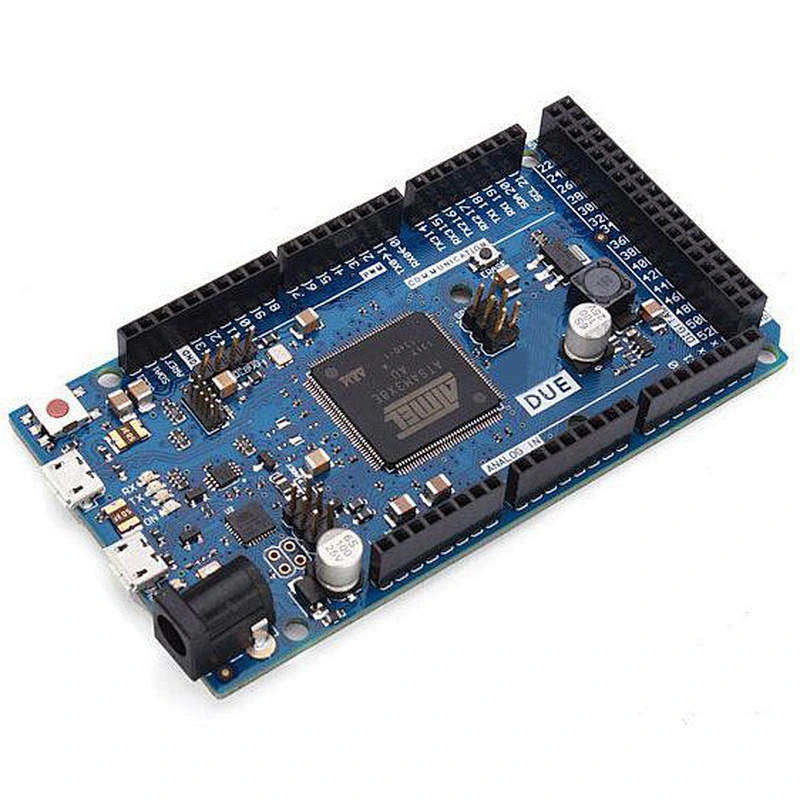

Neutral Without LOGO DUE R3 32 Bit Module With USB Cable For Arduinos
Description:
The Due is a microcontroller board based on the Atmel SAM3X8E Cortex-M3 CPU (datasheet). It is the first board based on a
32-bit core microcontroller. It has 54 digital input / output pins (of which 12 can be used as PWM outputs), 12 analog inputs,
4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an
SPI header, a JTAG header, a reset button and an erase button.
The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or
power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all shields that work at 3.3V and are
compliant with the 1.0 pinout.
The SAM3X has 512KB (2 blocks of 256KB) of flash memory for storing code. The bootloader is preburned in factory from Atmel and is
stored in a dedicated ROM memory. The available SRAM is 96KB in two contiguous bank of 64KB and 32KB. All the available memory
(Flash, RAM and ROM) can be accessed directly as a flat addressing space.
It is possible to erase the Flash memory of the SAM3X with the onboard erase button. This will remove the currently loaded sketch
from the MCU. To erase, press and hold the Erase button for a few seconds while the board is powered.
Feature:
The Due has a 32-bit core that can outperform typical 8-bit microcontroller boards. The most significant differences are:
A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock.
CPU clock at 84Mhz
96KBytes of SRAM
512KBytes of flash memory for code
A DMA controller, that can relieve the CPU from doing memory intensive tasks
Warning:
Unlike other boards, the Due board runs at 3.3V. The maximum voltage that the I / O pins can tolerate is 3.3V. Providing higher
voltages, like 5V to an I / O pin could damage the board.
Specification:
Microcontroller: AT91SAM3X8E
Operating voltage: 3.3V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 16V
Digital I / O pins: 54(of which 12 provide PWM output)
Analog input pins: 12
Analog outputs pins: 2(DAC)
Total DC output current on all I / O lines: 130mA
DC current for 3.3V pin: 800mA
DC current for 5V pin: 800mA
Flash memory: 512KB all available for the user applications
SRAM: 96KB(two banks: 64KB and 32KB)
Clock speed: 84MHz
Package included:
1 x DUE R3
1 x USB cable
The Due is a microcontroller board based on the Atmel SAM3X8E Cortex-M3 CPU (datasheet). It is the first board based on a
32-bit core microcontroller. It has 54 digital input / output pins (of which 12 can be used as PWM outputs), 12 analog inputs,
4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an
SPI header, a JTAG header, a reset button and an erase button.
The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or
power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all shields that work at 3.3V and are
compliant with the 1.0 pinout.
The SAM3X has 512KB (2 blocks of 256KB) of flash memory for storing code. The bootloader is preburned in factory from Atmel and is
stored in a dedicated ROM memory. The available SRAM is 96KB in two contiguous bank of 64KB and 32KB. All the available memory
(Flash, RAM and ROM) can be accessed directly as a flat addressing space.
It is possible to erase the Flash memory of the SAM3X with the onboard erase button. This will remove the currently loaded sketch
from the MCU. To erase, press and hold the Erase button for a few seconds while the board is powered.
Feature:
The Due has a 32-bit core that can outperform typical 8-bit microcontroller boards. The most significant differences are:
A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock.
CPU clock at 84Mhz
96KBytes of SRAM
512KBytes of flash memory for code
A DMA controller, that can relieve the CPU from doing memory intensive tasks
Warning:
Unlike other boards, the Due board runs at 3.3V. The maximum voltage that the I / O pins can tolerate is 3.3V. Providing higher
voltages, like 5V to an I / O pin could damage the board.
Specification:
Microcontroller: AT91SAM3X8E
Operating voltage: 3.3V
Input voltage(recommended): 7V - 12V
Input voltage(limits): 6V - 16V
Digital I / O pins: 54(of which 12 provide PWM output)
Analog input pins: 12
Analog outputs pins: 2(DAC)
Total DC output current on all I / O lines: 130mA
DC current for 3.3V pin: 800mA
DC current for 5V pin: 800mA
Flash memory: 512KB all available for the user applications
SRAM: 96KB(two banks: 64KB and 32KB)
Clock speed: 84MHz
Package included:
1 x DUE R3
1 x USB cable
Company Profile
Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield for arduinos, sensor module for arduinos, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduinos & Modules For Raspberry PI ,Smart Home Products

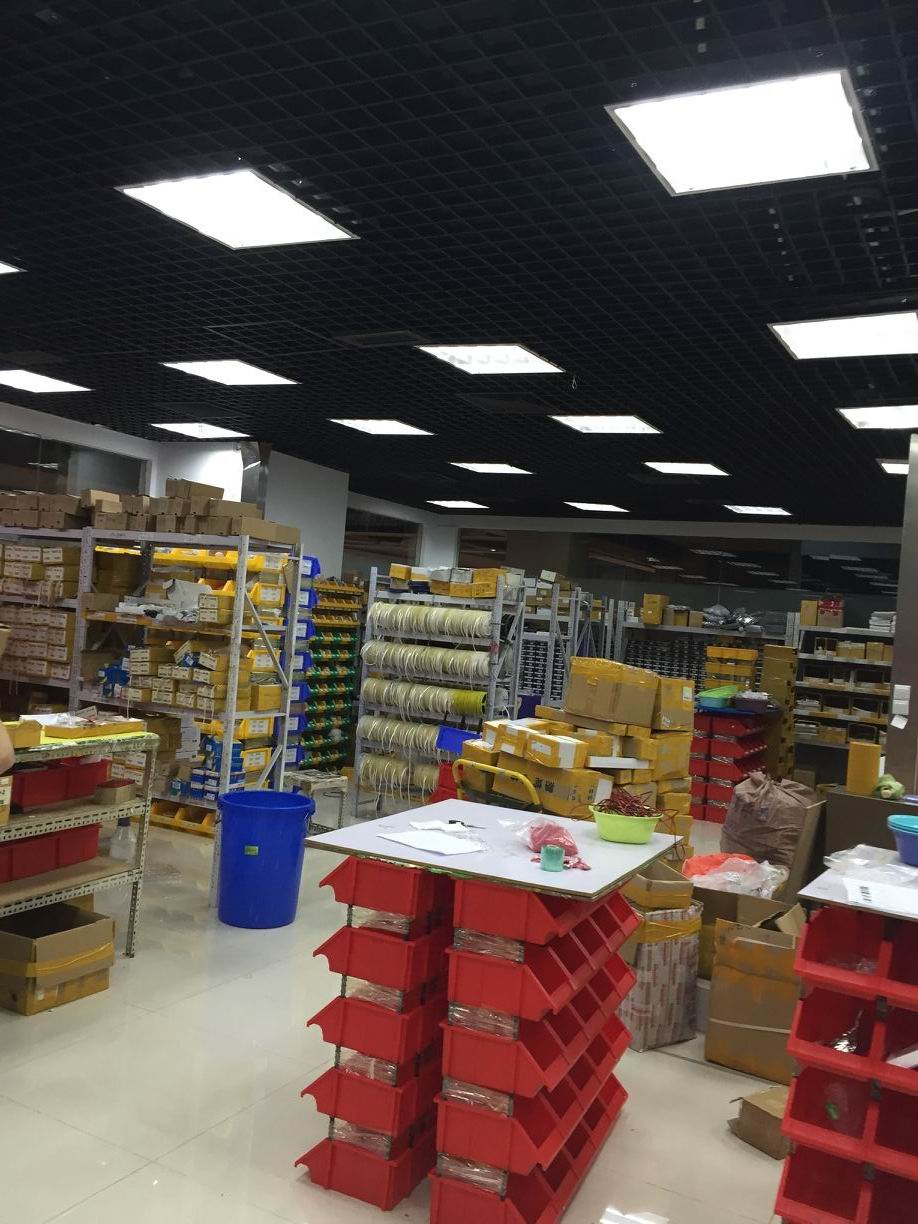

WareHouse
This is our Warehouse ,We Can Make A Fastest Shipment per Day

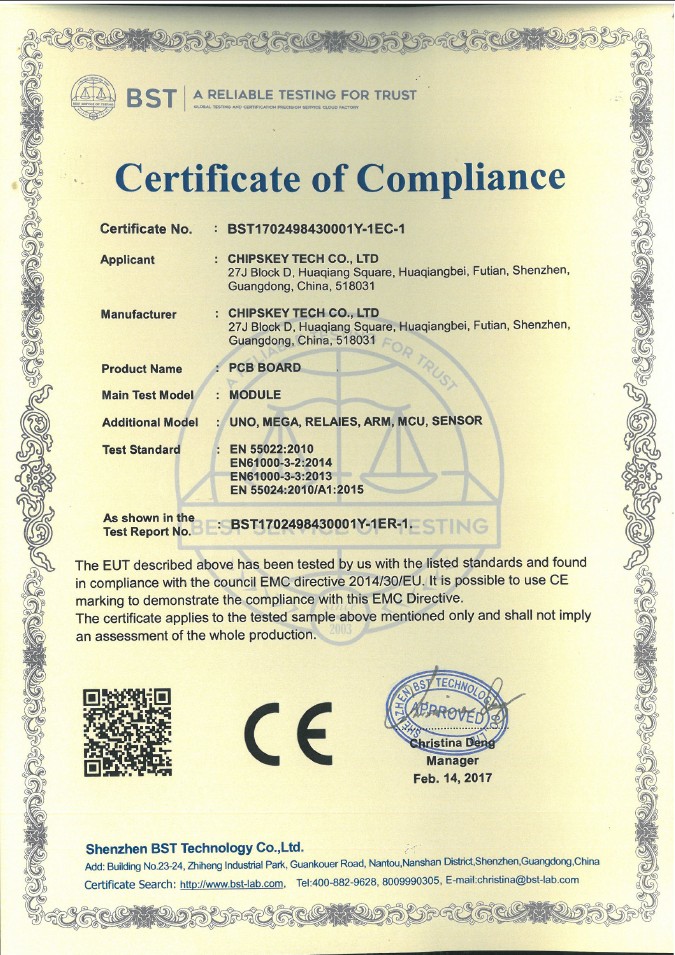

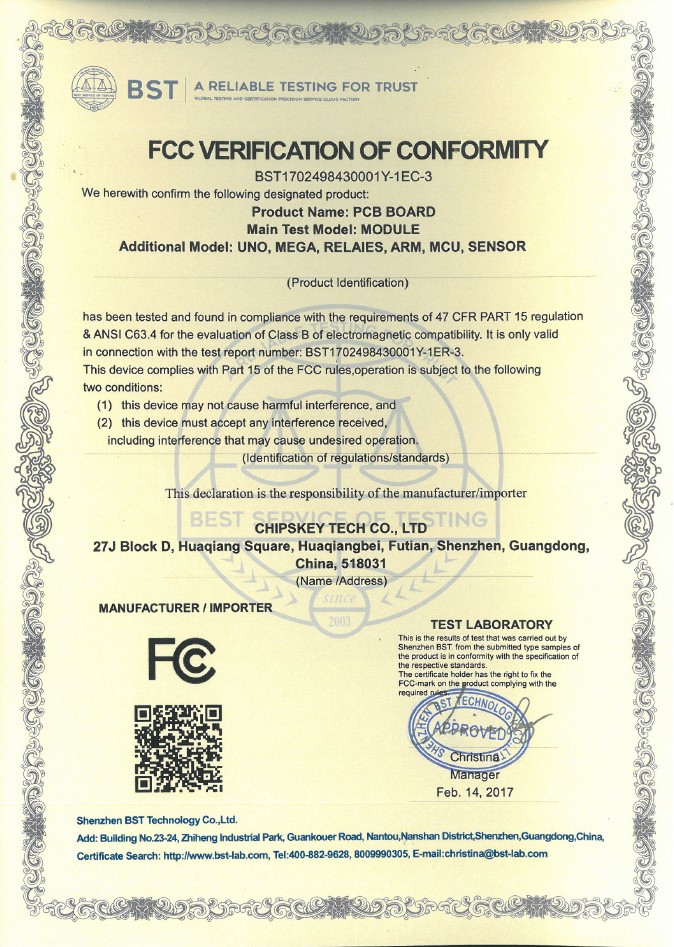

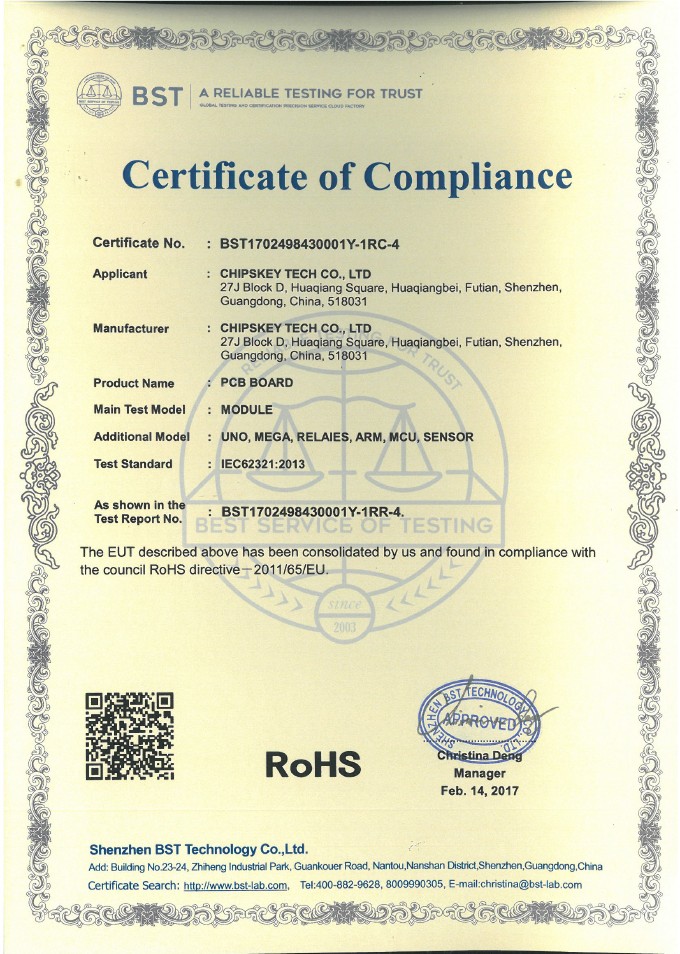

Certifiactions
