- Model Number:26167
- Type:integrated circuit
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Color:Blue
- Part number:26167
- Brand:chipskey

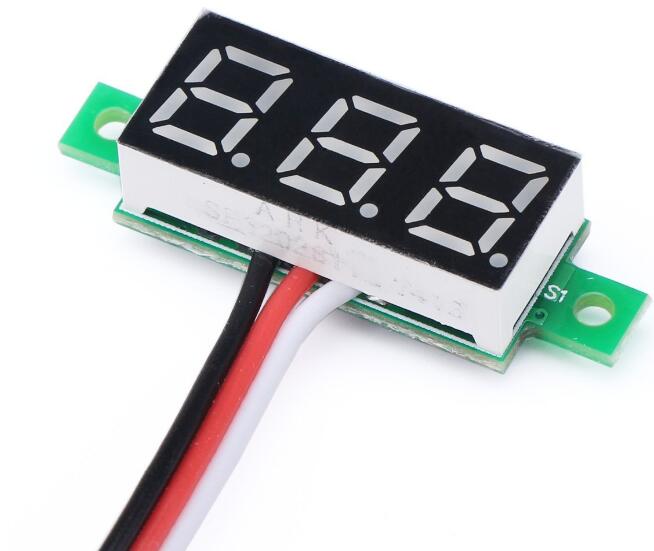

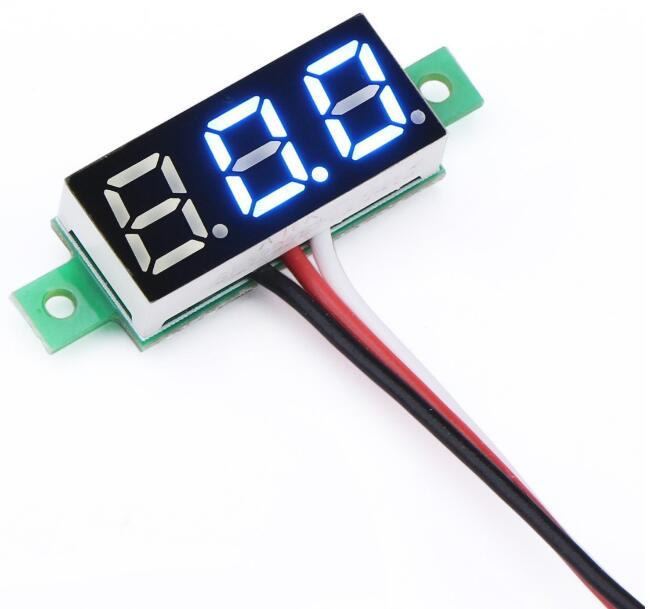

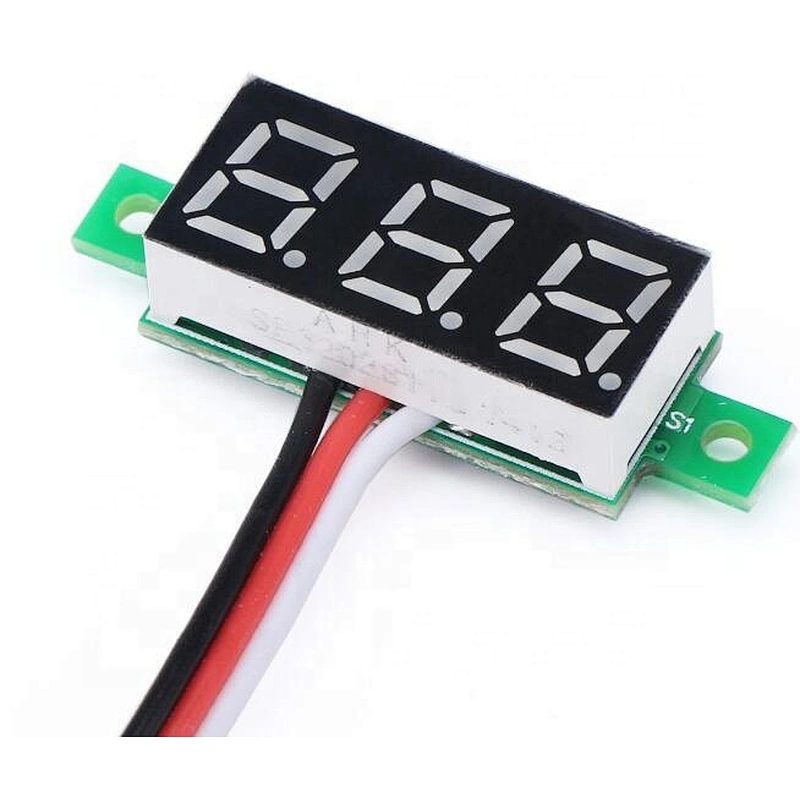

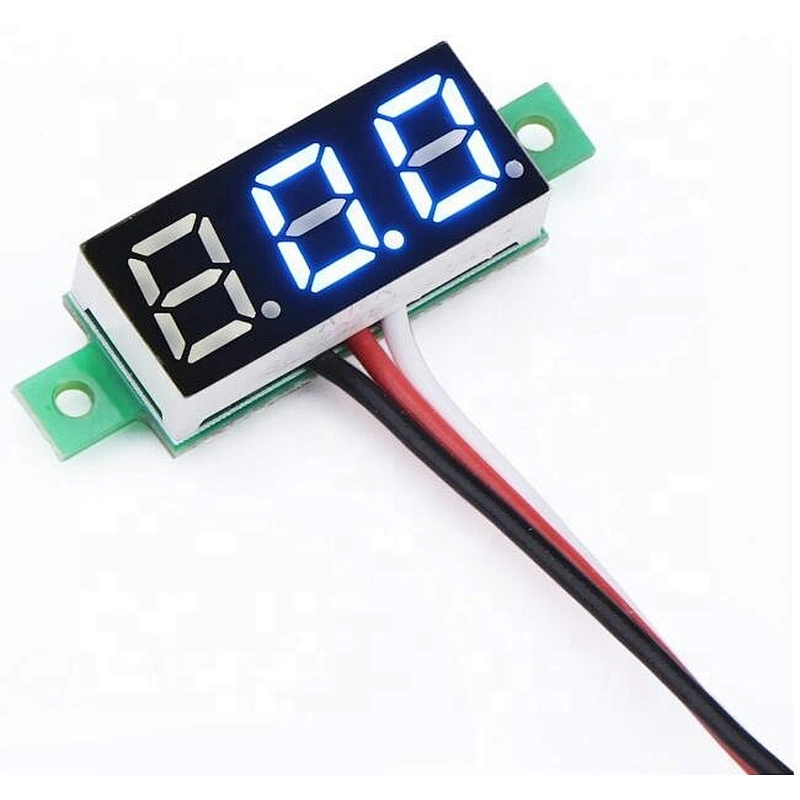

Blue 0.28 inch ultra-small digital DC voltage meter three-wire digital adjustable DC 0-100V
Product description
Color:Blue
Parameters:
Measuring range:DC 0~100V
Operating voltage:DC 3.0~30V
Min input: DC 0V
Max input: DC 100V
Measurement accuracy:1 %(+/- 1 digit)
Refresh Rate:about 200mS/times
Operating Temperature:-10 °c ~ +65 °c
Power consumption: 5-15mA in normal condition
Display:Three 0.28"LED digital tube
Display Color:Green/Red/Blue/Yellow

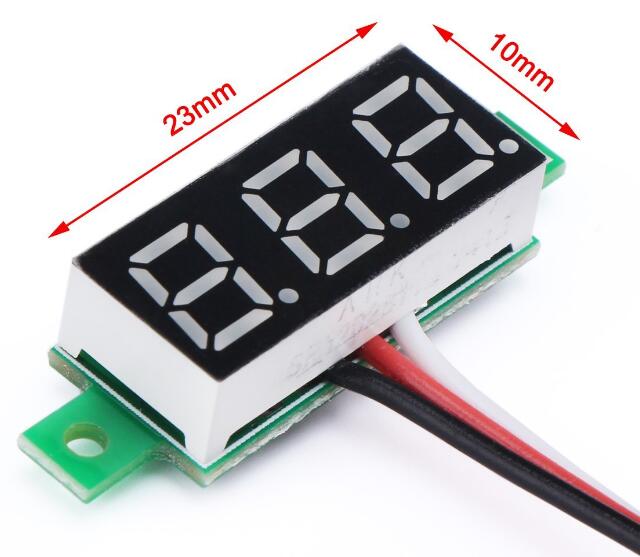

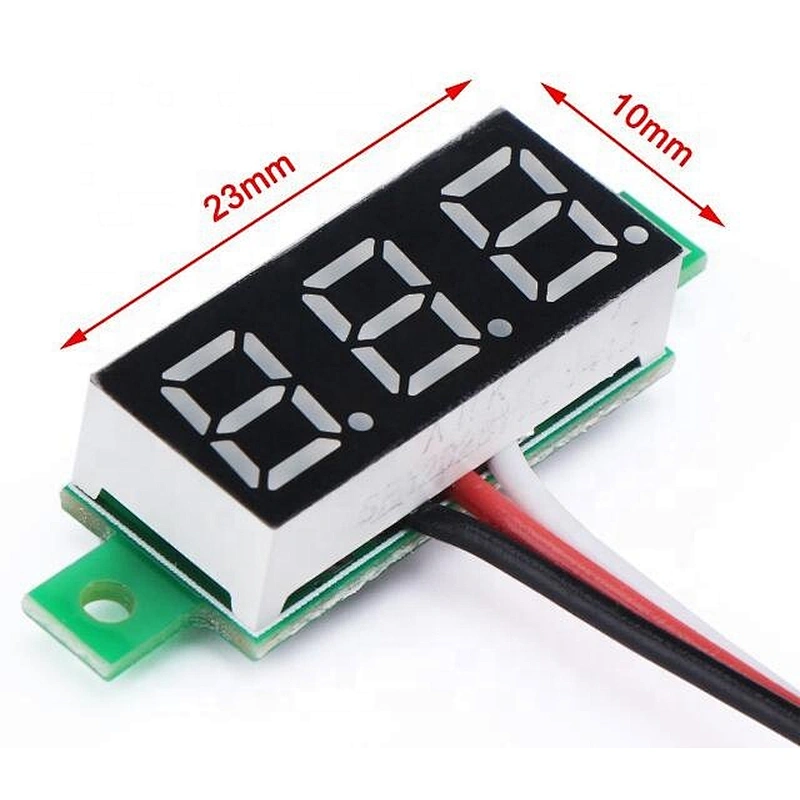

Cutting size:23.5mm x 10mm
Mounting holes distance:28mm
Wiring:
Red: Power Supply +,(3.0~ 30V DC)
White: Measure Voltage +,0~ 100V DC)
Black: Power Supply -, Measure Voltage -
Note:
1.The meter requires extra power supply of DC 3.0 to 30V
2.Its resolution is 0.1V and its actual error might larger than 0.1V
