- Model Number:31004
- Type:integrated circuit
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- SKU:31004

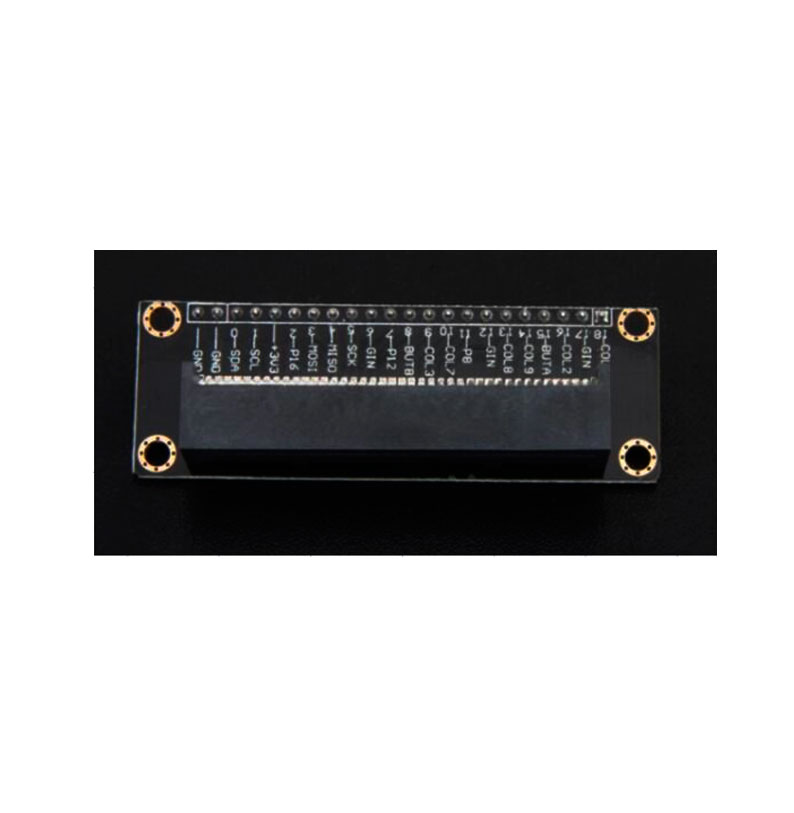

BBC Micro: bit Shield Breakout Adapter Kit Straight Pins
This product is Breakout expansion board, does not include micro: bit motherboard!
This product has 2 kinds of dispositions, the user chooses according to need:
1. Straight pin version: Straight pin has been welded, suitable for use with the breadboard.
2. Looper version: the needle has been rowing row, suitable for use with DuPont line.
(Note: This product is an expansion board, does not include the image inside the breadboard and development board wire, etc.)
Size: 70 * 32mm
Fixing hole: 3mm
Pitch: 2500 * 1000mil (63.5 * 25.4mm)
Interface: micro: bit gold finger, 2.54mm pin
Designed for the micro: bit breakout expansion board to facilitate the introduction of micro: bit interface. High quality custom edge connector for reliable connection of your micro: bit. With a breakout you can connect all 21 GPIOs to your breadboard for easy experimentation.
