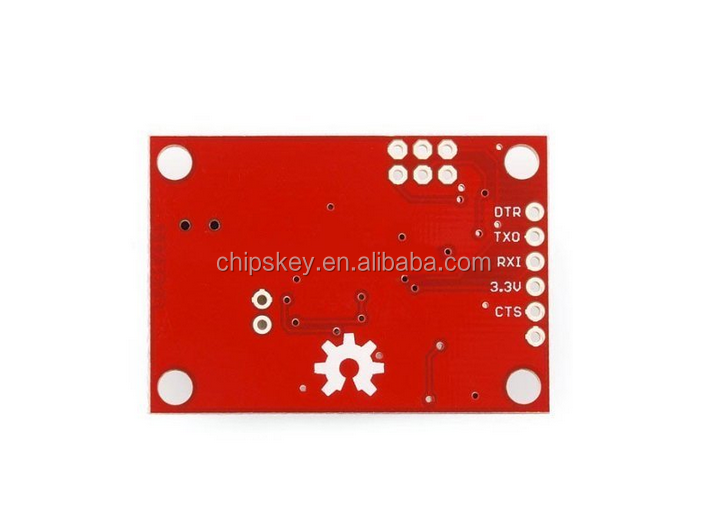

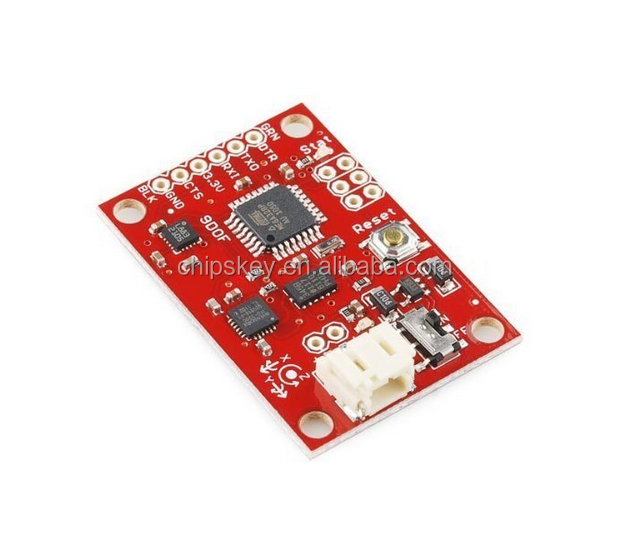

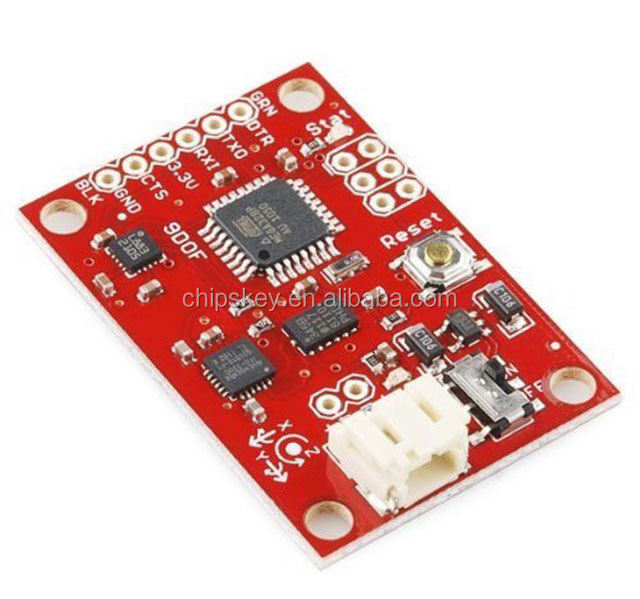

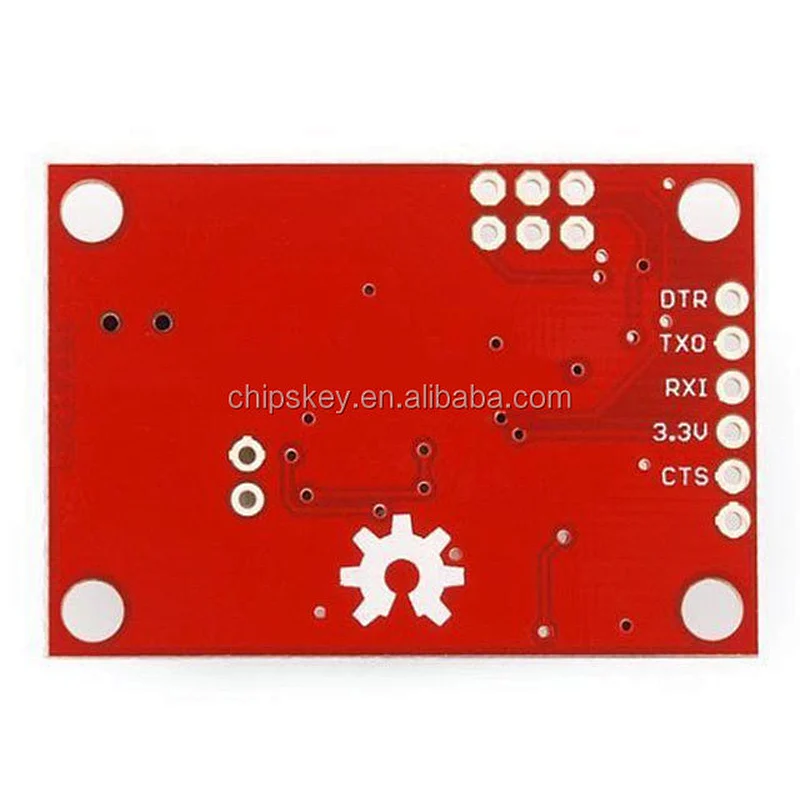

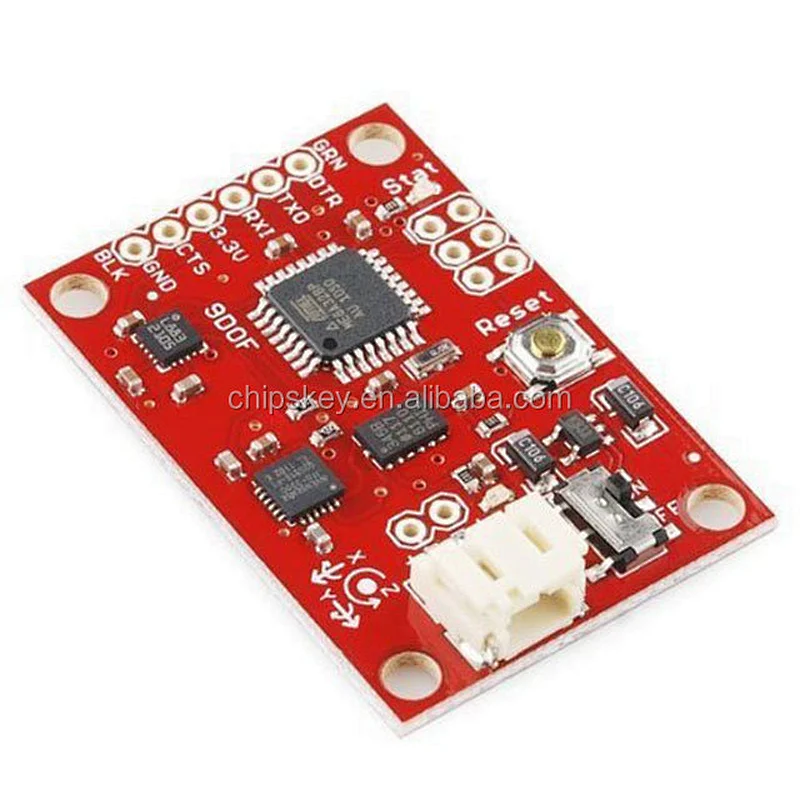

ArduIMU 9dof Object Attitude Sensor ITG- 3205+ADXL345+HMC5883L+ATmega328

• Model Number:15F128
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Certification 1:ROHS
• Certification 2:CE

ArduIMU 9dof Object Attitude Sensor ITG- 3205+ADXL345+HMC5883L+ATmega328

Description:
This is ArduIMU 9dof freedom includes three sensors, ITG-3205 (three-axis gyro), ADXL345 (triaxial accelerometer), HMC5883L (three-axis magnetometer), using the ATmega328 as controller.
Pre-programmed 16Mhz Arduinos promini booterloader program is completely compatible with the Arduinos IDE. Processing of the sensor output and the output from a plate ATmega328 via a serial interface. This makes nine degrees of freedom ArduIMU as a very powerful control mechanism for UAVs, autonomous vehicles and image stabilization systems. The nine degrees of freedom ArduIMU working voltage of 5 volts DC; through white JST connector power supply.
On-board sensor data are processed by the onboard ATmega328 output through the serial port, the data can reflect the operational status of the target multi-faceted, which makes ArduIMU 9DOF in unmanned aerial vehicles, automatic cars, image stabilization system and other control areas popular, is a powerful controller.

Product Features:
ITG-3205 three-axis digital output gyroscope
ADXL345 three-axis accelerometer
HMC5883L - axis digital magnetometer
Sensor output from the onboard ATmega328 processed and sent via the serial stream
Can be programmed via FTDI adapter, configuration, the module detection
5-16VDC input
Switch control switch and reset switch

Package List:
1 x ArduIMU 9dof Object Attitude Sensor
