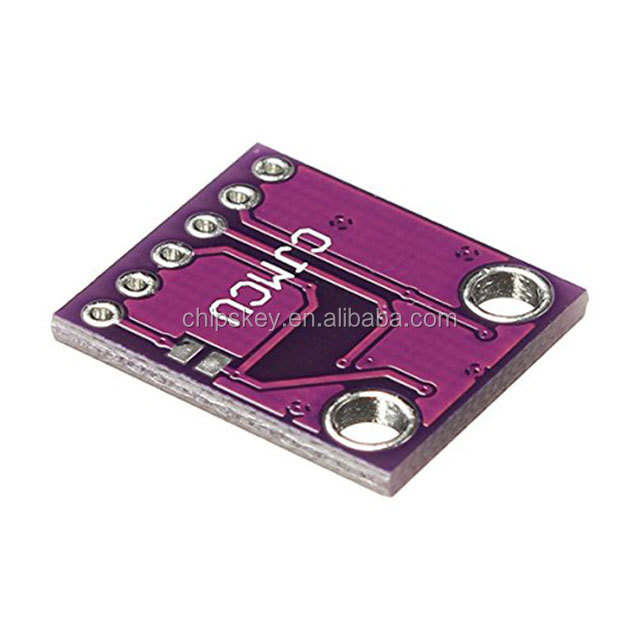

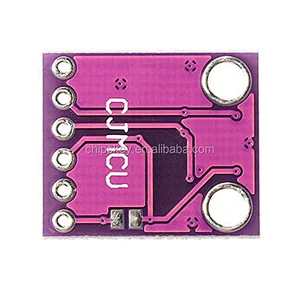

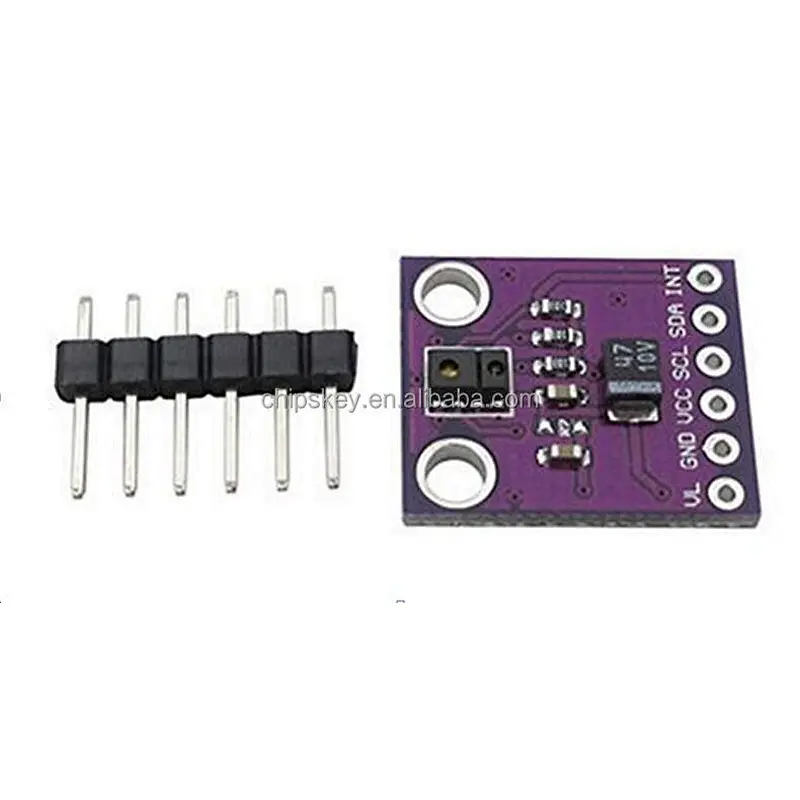

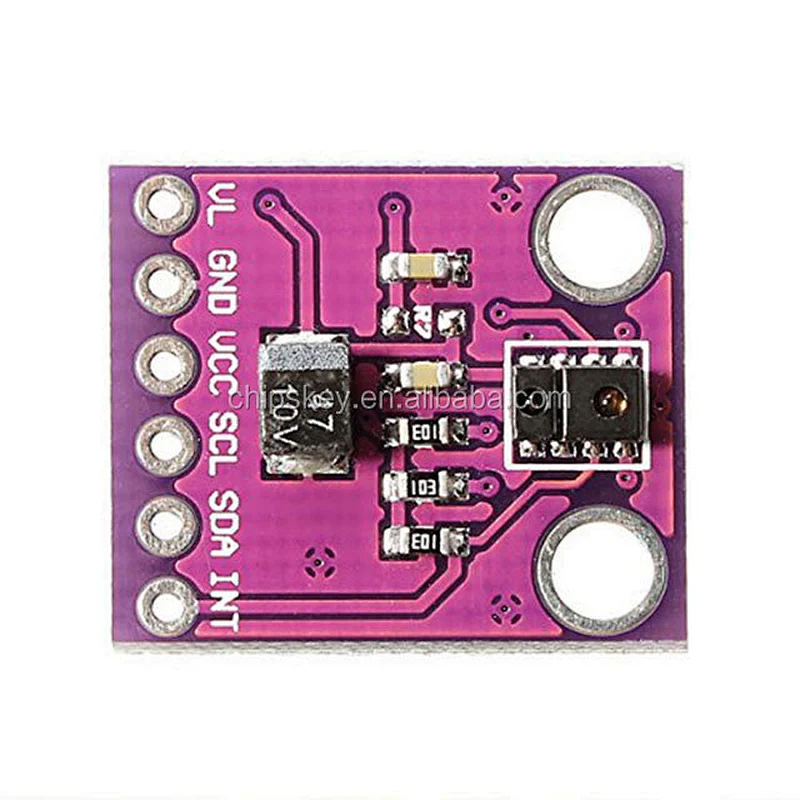

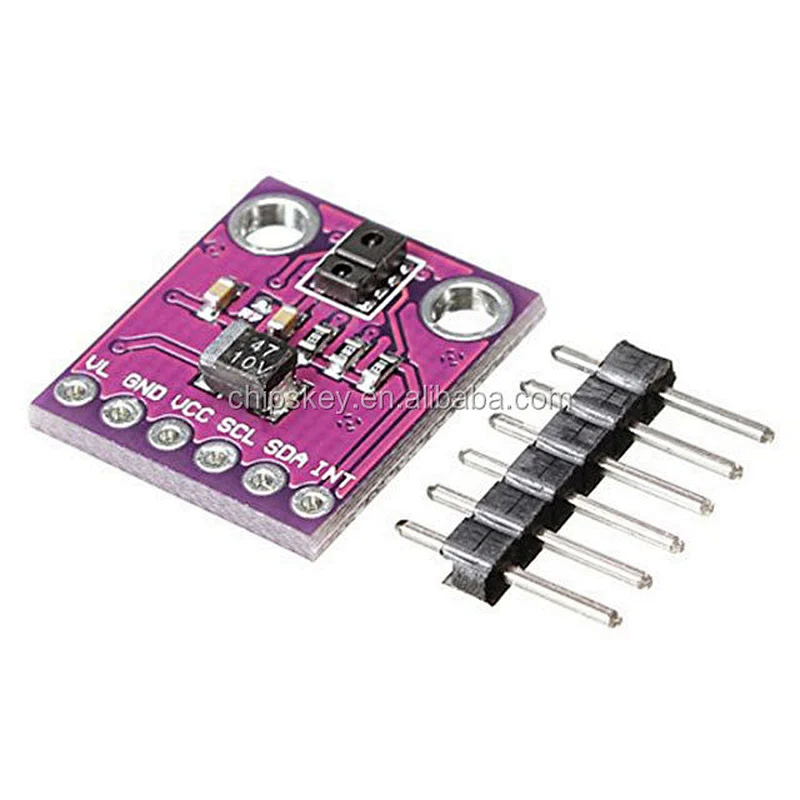

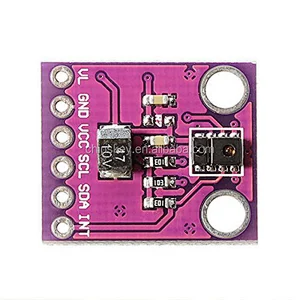

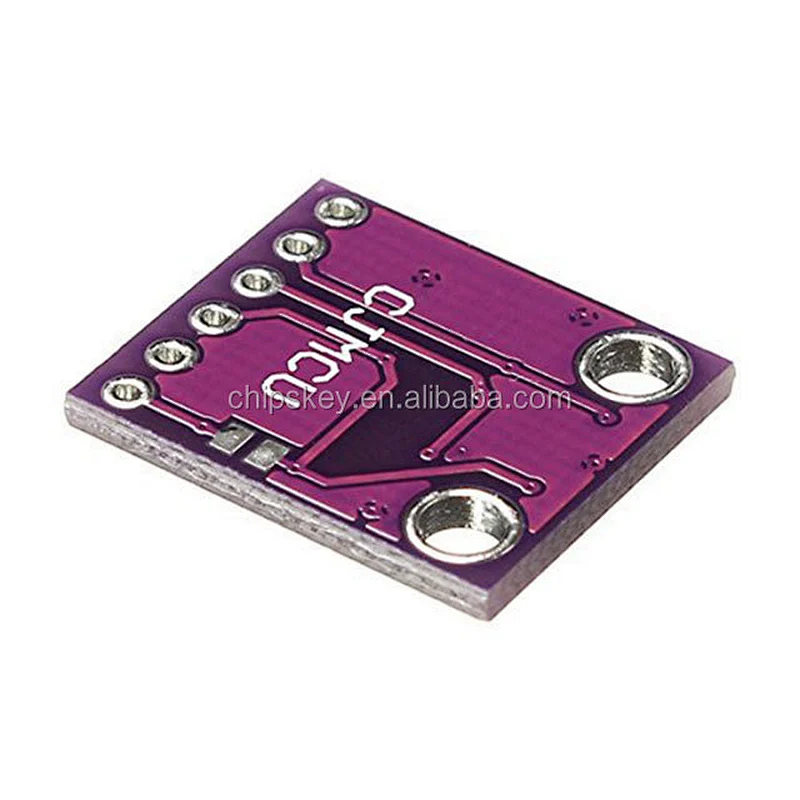

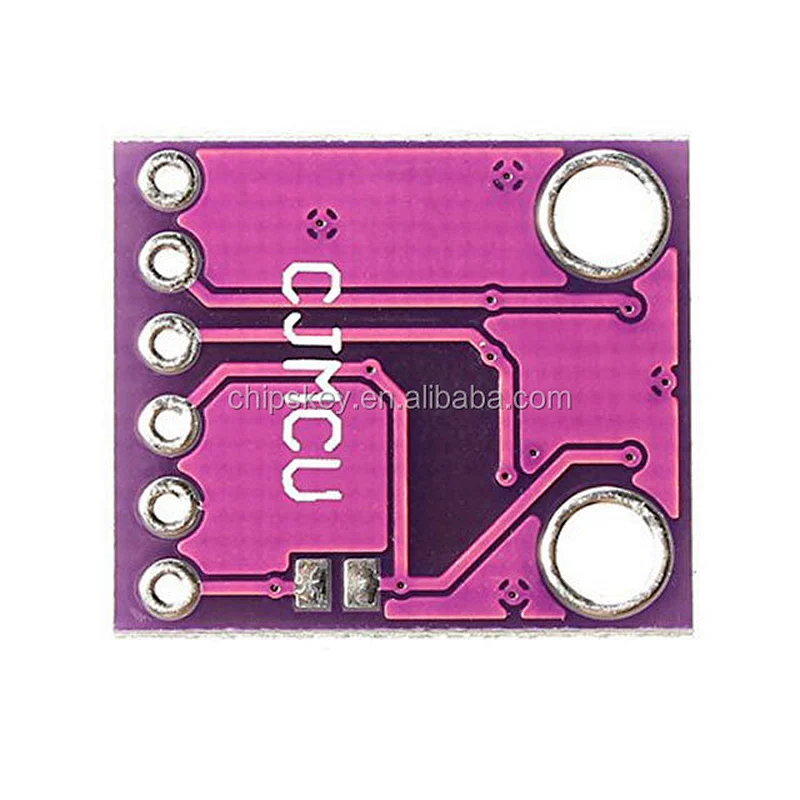

APDS-9930 Proximity Sensor Approaching and Non Contact Proximity Breakout

"product description
Features:

• Optical module with integrated ALS, infrared LEDs and proximity detector
• Ambient Light Sensing (ALS)
- The general human visual response
- Programmable interrupt capability with upper and lower thresholds
- Up to 16-bit resolution
- High-sensitivity operation behind dark glass
0.01lux low lumen performance
Proximity detection
- Fully calibrated to 100 mm detection
- Integrated infrared LED and synchronous LED driver
- Eliminate proximity sensor factory calibration
• Programmable wait timer
Waiting state power consumption -
μA typical
- Programmable from 2.7 ms to over 8 seconds
• I2C interface is compatible
- Up to 400kHz (I2C Fast Mode)
- Dedicated interrupt pin
• Sleep mode power consumption - 2.2μA typical
• Small package 3
(L) x 2.36 (W) x 1.35 (H) mm

application:

• Dimmable phone backlight
• laptop / monitor safe
• Hands-free mode is automatically enabled
• Auto pop-up menu
• Digital camera eye sensor




"
