- Model Number:27107
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- SKU:27107
Function parameter:

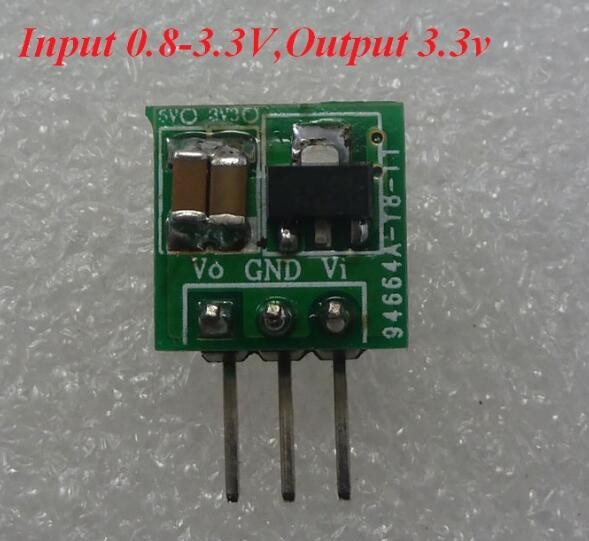

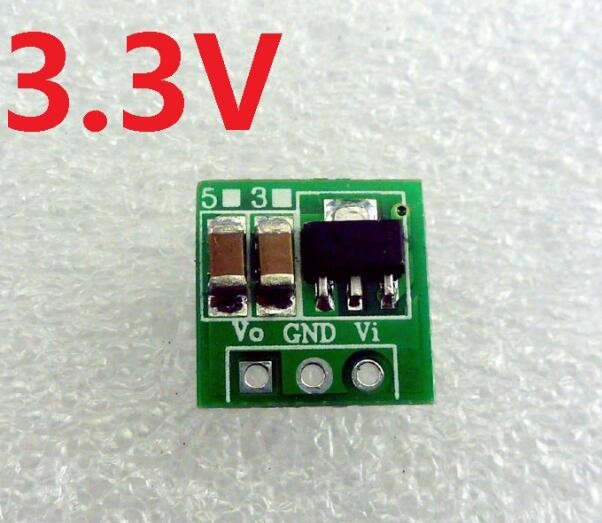

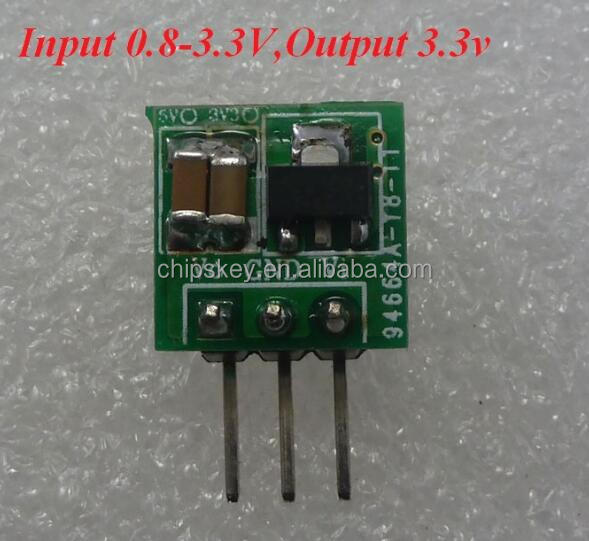

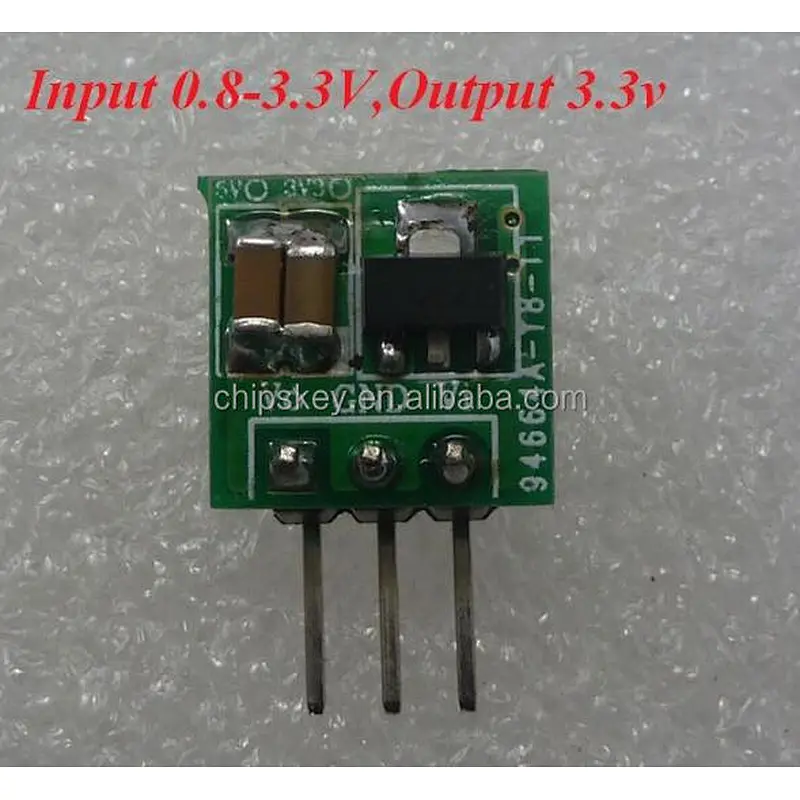

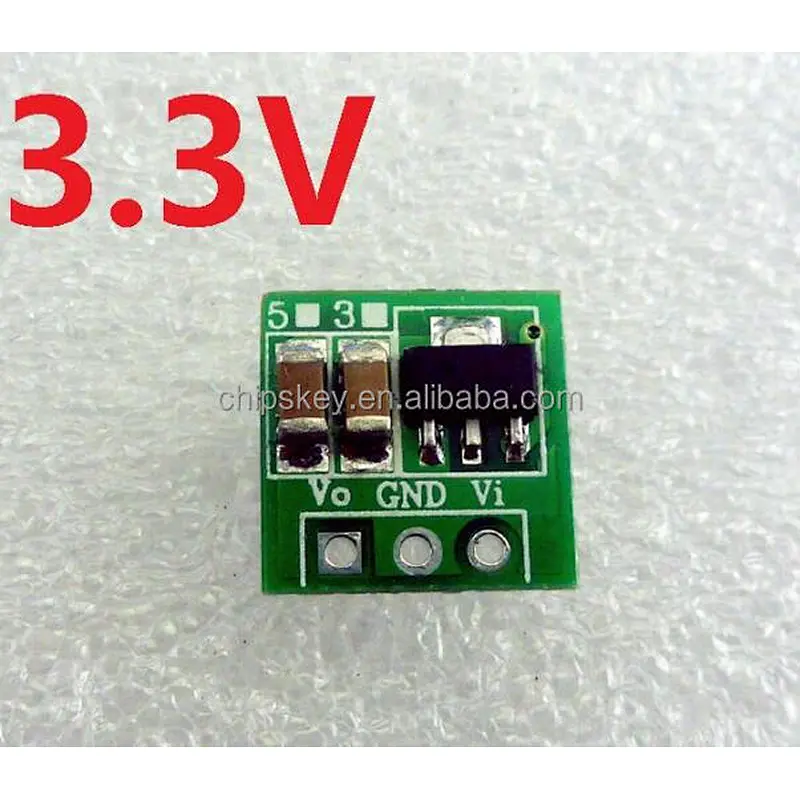

3.3V Output Version:
The input voltage is 0.8-3.3V and the output voltage is 3.3V
Maximum output current: 500 mA
Starting voltage 0.8V, output current 10MA
Input 1-1.5V, output 3.3V 50-110MA;
Input 1.5-2V, output 3.3V 110-160MA;
Input 2-3V, output 3.3V 160-400MA;
Input more than 3V, output 5V 400-500MA;

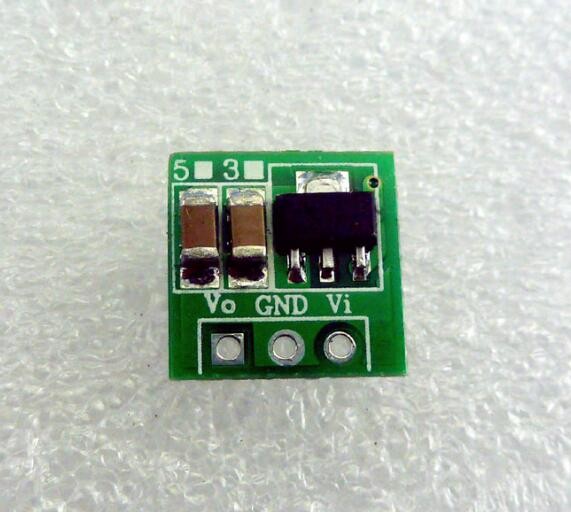

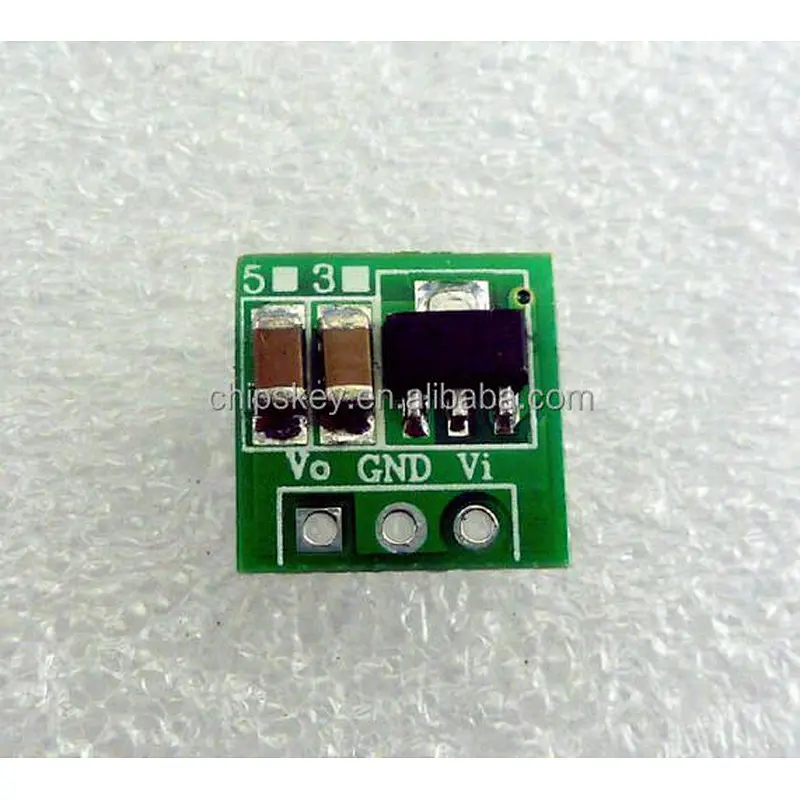

DC-DC boost converter module, the operating frequency of 150KHZ, the typical conversion efficiency of 85%
Pins 2.54MM pitch
Size: 11mm x 10.5mm x 7.5mm (very small)
Weight: Approximately 1 gram (very light)
This is the voltage boost converter module, the use of time must comply with the following conditions:
1 input voltage can not be greater than the nominal voltage, otherwise it will burn out the module
2 Input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage.
3 output load can not be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage.
