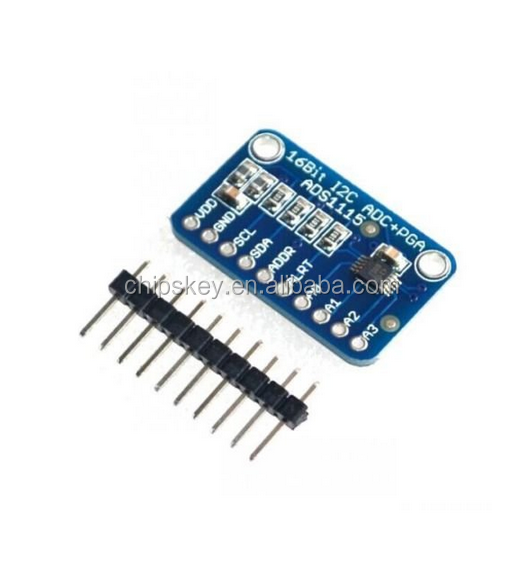

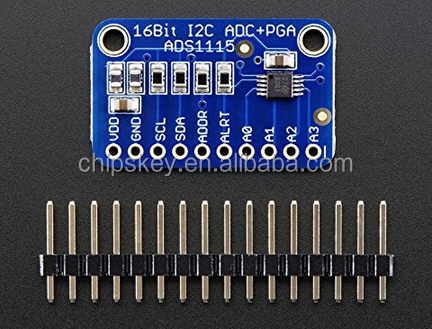

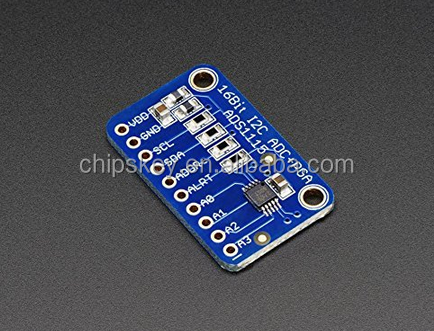

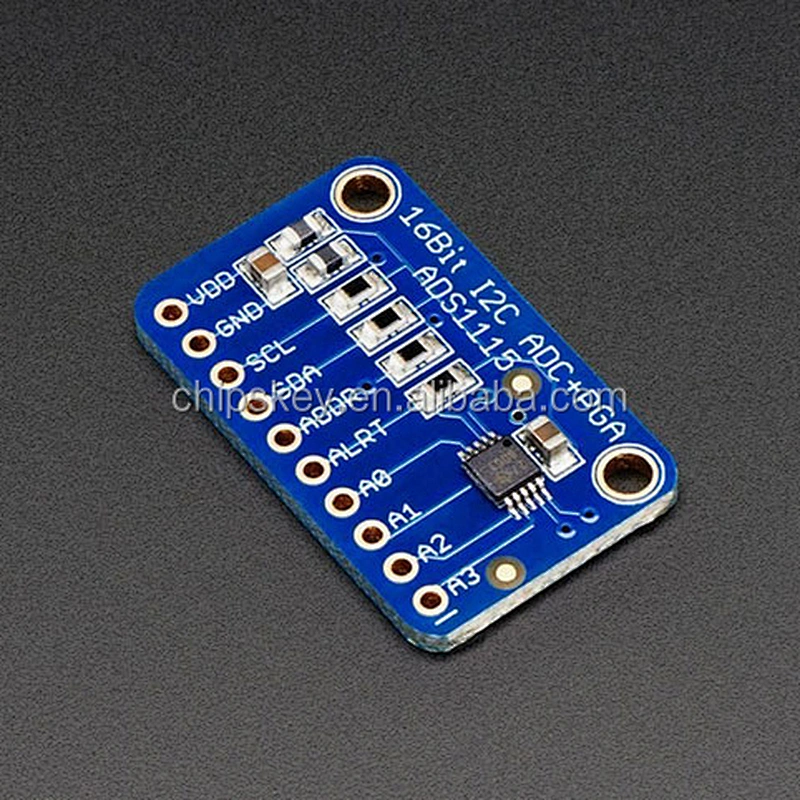

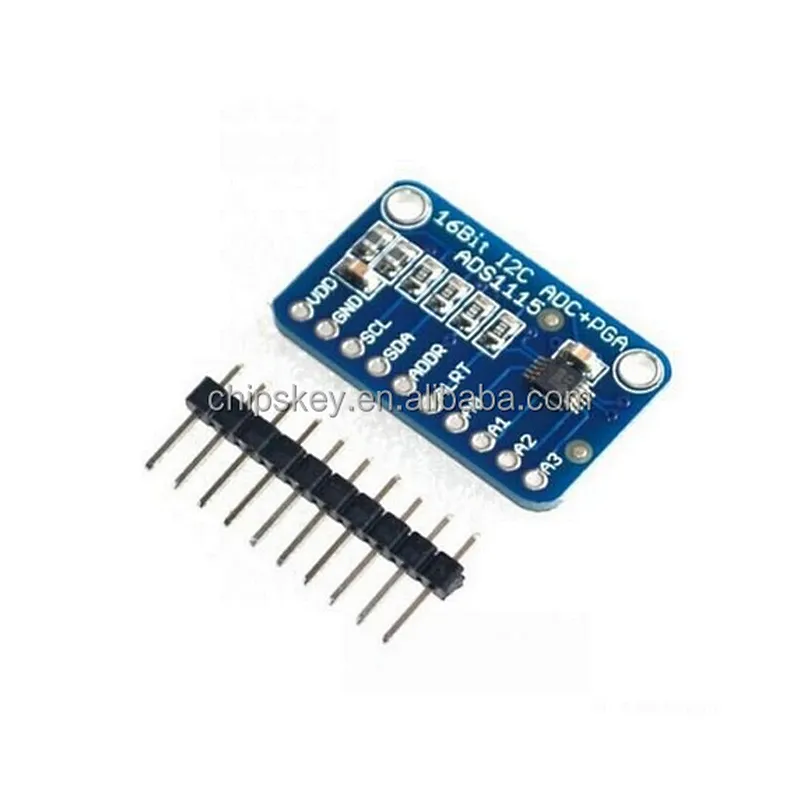

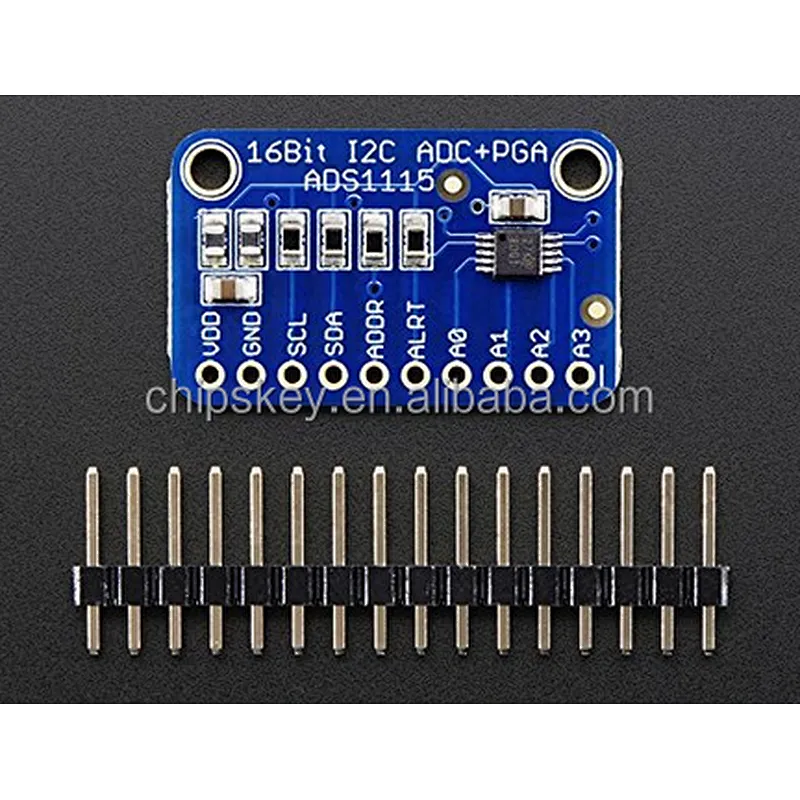

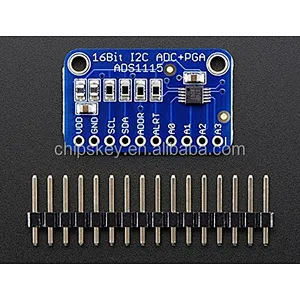

ADS1115 16-Bit ADC-4 Channel with Programmable Gain Amplifier

• Model Number:15F109
• Type:Data Conversion Development Boards and Kits
• Place of Origin:China
• Weight:12KG
• Size:660*270*110mm

ADS1115 16-Bit ADC-4 Channel with Programmable Gain Amplifier

• Input voltage: 2.0-5.5v, Channel input voltage :0-VDD, Continuous Mode: Only 150?A, Single-Shot Mode: Auto Shut-Down
• PROGRAMMABLE DATA RATE:8sps-860sps, Input range programmed control, 7 types input ranges:
• -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V
• I2C 7-bit addresses between 0x48-0x4B, Size:18mm*28mm
• Applications: Portable instrumentation, Consumer goods, Battery monitoring, Temperature measurement, Factory automation and process controls
