- Model Number:AD9850 module; DDS signal generator
- Type:Drive IC
- Place of Origin:Guangdong, China, US
- Brand Name:Chipskey
- Operating Temperature:-40°C ~ 125°C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V
- Part number:AD9850 module; DDS signal generator
- Brand:Chipskey
- Category:Electronic Module
- Lead Free Status:Lead free / RoHS Compliant
- Warranty:360days

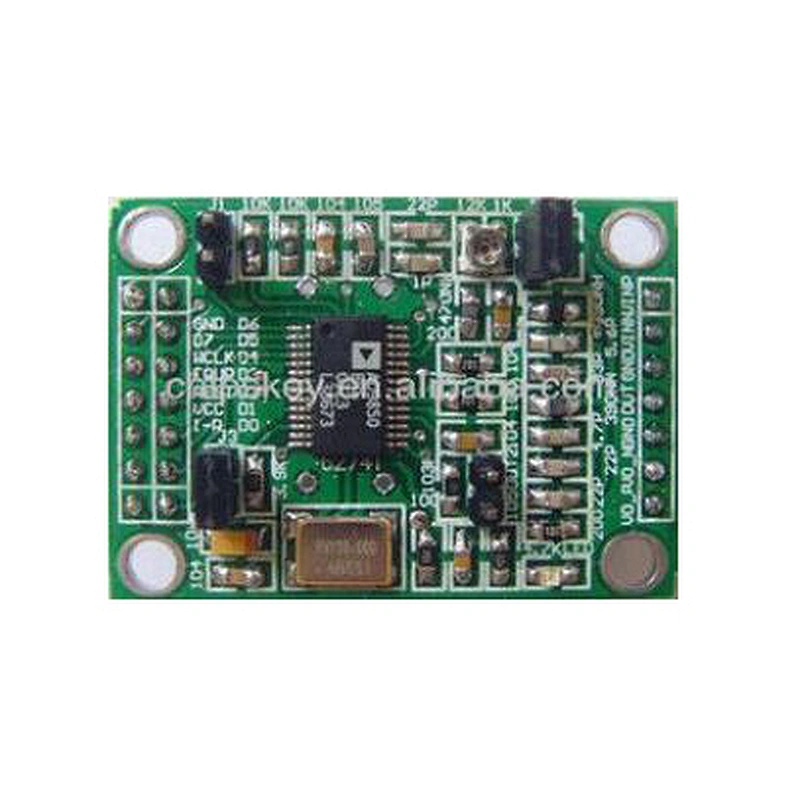

AD9850 module; DDS signal generator
Main features:
* Modules can output sine and square wave 2 sine wave and 2 square wave output.
AD9850: 0-40MHz
AD9851: 0-70MHz
After 20-30MHz frequency harmonics, the waveform will be less and less clean.
Square Wave: 0-1MHz
* 70MHz low-pass filter, so that the waveform of the SN ratio is better
* Parallel port and serial data input can be selected by a jump cap
* Produce DA benchmark pin (PIN12) leads to the amplitude of the output waveform, easy to do conditioning applications.
* Comparator reference input voltage is generated by a variable resistor, to adjust the resistance can be a different duty cycle square wave
* AD9850 module 125MHz active crystal, AD9851 module 30MHZ active crystal
The main difference of the AD9850 and AD9851
* AD9850's highest clock frequency of 125MHz, AD9851 the highest clock frequency of 180MHz. The maximum output frequency AD9851 than AD9850 high.
* AD9850 no 6 octave, AD9851
Product Description
1)The module can output sine wave and square wave,two sine waves and two square waves output
AD9850: 0-40MHz
AD9851: 0-70MHz
Square wave: 0-1MHz
(The after harmonic becomes bigger and bigger when the frequency is between 20-30MHz,and the wave form becomes unclean.)
2)70MHz low-pass filter makes the SN ratio of the wave form much better
3)Generated DA reference pins(PIN12)extraction is convenient for the amplitude control application of input. wave form.Input voltage can be generated by variable resistance, if you adjust the resistance, you can get different duty ratio square wave.
4)AD9580 adopts 125MHz active crystal.
