- Model Number:1078
- Type:Other
- Place of Origin:China
- Part number:AD9850 module
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Dissipation Power:1W-6W
- Supply Voltage:1.5V-6V
- SKU:1078

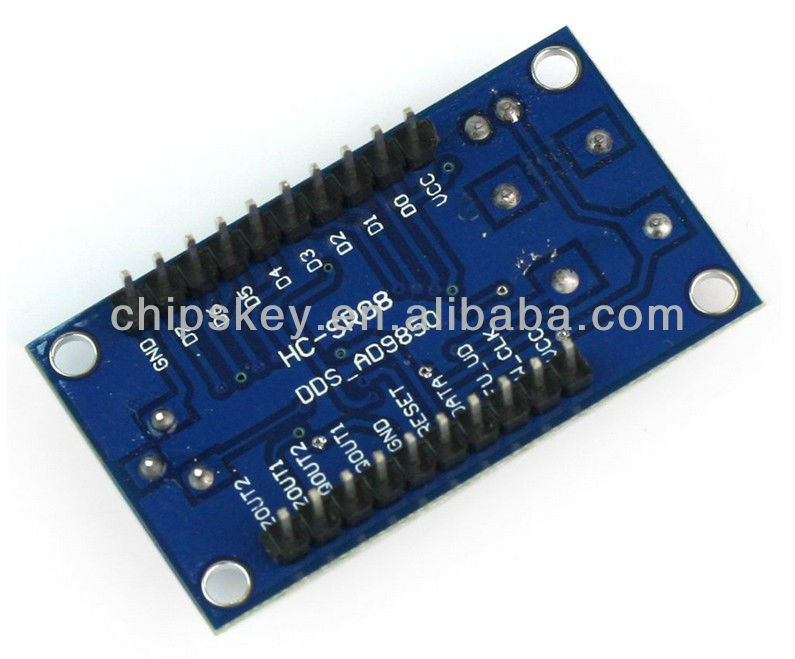

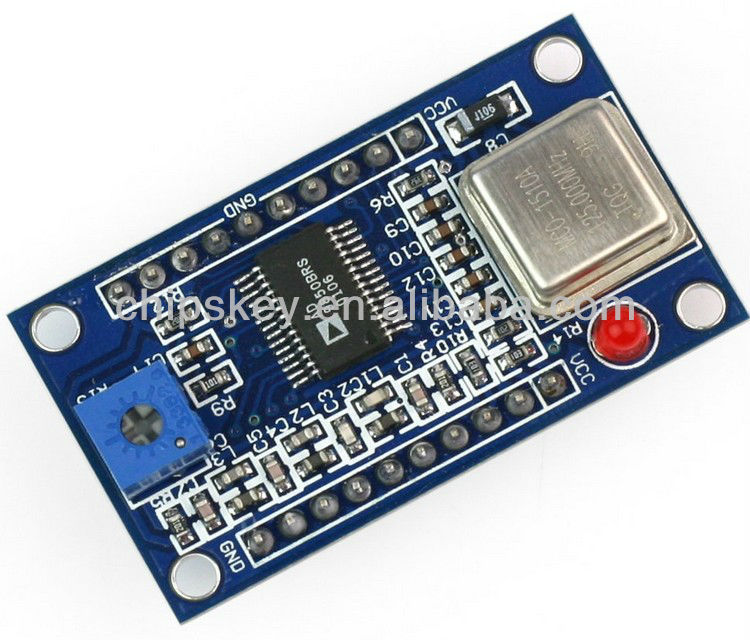

AD9850 DDS Signal Generator Module 0-40MHz Test Equipment
Main features:
* Modules can output sine and square wave 2 sine wave and 2 square wave output.
AD9850: 0-40MHz
AD9851: 0-70MHz
After 20-30MHz frequency harmonics, the waveform will be less and less clean.
Square Wave: 0-1MHz
* 70MHz low-pass filter, so that the waveform of the SN ratio is better
* Parallel port and serial data input can be selected by a jump cap
* Produce DA benchmark pin (PIN12) leads to the amplitude of the output waveform, easy to do conditioning applications.
* Comparator reference input voltage is generated by a variable resistor, to adjust the resistance can be a different duty cycle square wave
* AD9850 module 125MHz active crystal, AD9851 module 30MHZ active crystal
The main difference of the AD9850 and AD9851
* AD9850's highest clock frequency of 125MHz, AD9851 the highest clock frequency of 180MHz. The maximum output frequency AD9851 than AD9850 high.
* AD9850 no 6 octave, AD9851
Product Description
2 sine wave and 2 square wave output.
After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
Square Wave: 0-1MHz.
Low-pass filter with 70MHz, so the waveform better than SN.
Parallel and serial data input can be selected via a jumper.
DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application.
Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different.
Active AD9850 125MHz crystal oscillator modules.
Dimension:4.5cm x 2.6cm

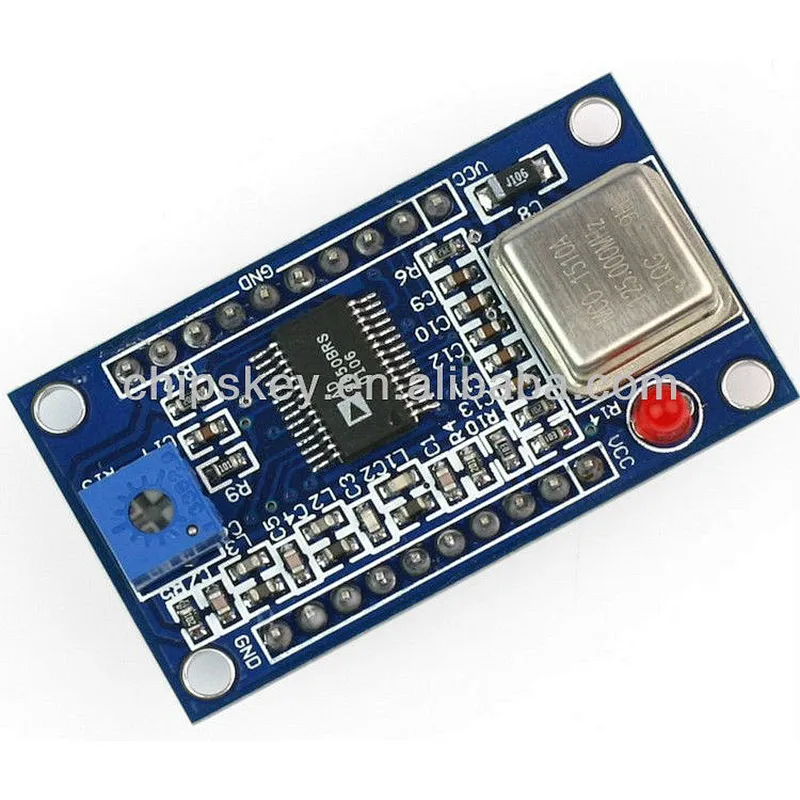

AD9850 DDS Signal Generator Module 0-40MHz Test Equipment
