- Model Number:13D016
- Type:integrated circuit, Drive IC
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- SKU:13D016
- Stock:In Stock ,Can Ship out Immedicate

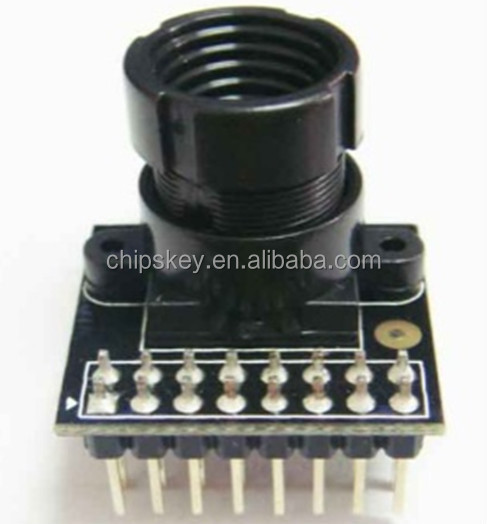

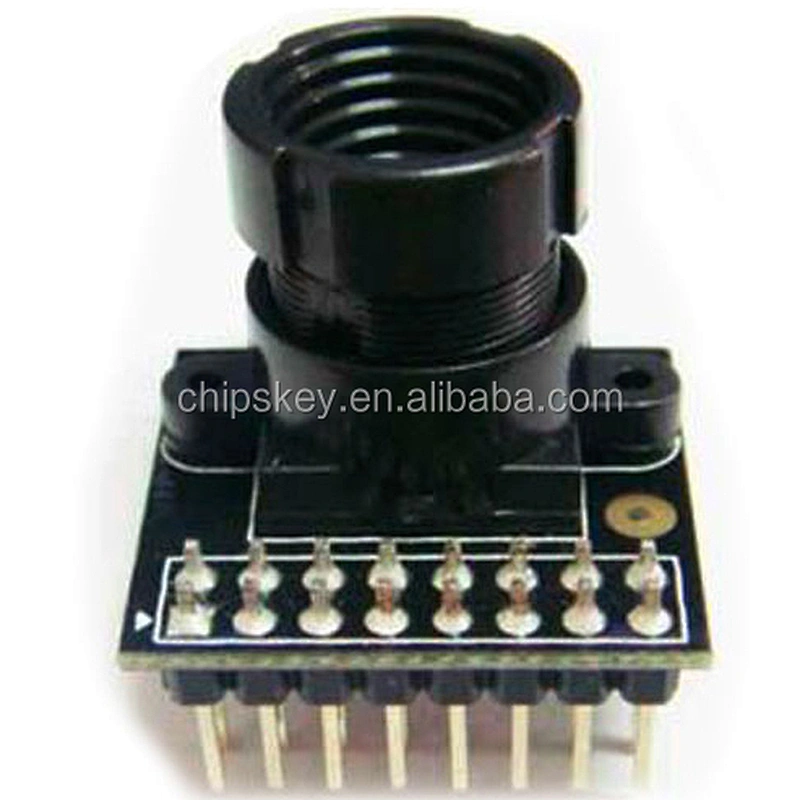

640x480 CMOS Camera Module OV7670 VGA YUV SNR 46 dB with High Quality Lens
Description: The OV7670 is one of the smallest VGA sensors in mass production.which based on a 3.6 μm pixel architecture,the OV7670 enables ultra thin camera modules of just 6×6×4.1mm.This is a critical characteristic for slim camera phonebook notebook applications since the camera modules can to be no thicker than the LCD housing. Operating at a low voltage.the OV7670 image sensor provides the full functionality of a single chip VGA camera and image processor in a small footprint package.This includes full-frame,sub-sampled through a serial camera control bus(SCCB) interface.
Product Features: 1.High sensitivity for low-light operation
2.Low operating voltage for embedded portable apps
3.Automatic image control functions including:AEC,AGC,AWB,ABF and ABLC
4.Image quality controls including color saturation,hue,gamma,sharpness(edge enhancement),and anti-blooming
5.ISP includes noise reduction and defect correction
6.Supports flash strobe mode and scaling
7.Lens shading correction
8.Flicker(50/60Hz)auto detection
9.Edge enhancement level auto adjust
10.De-noise level auto adjust
Applications: Cellular and camera phones Toys PC multimedia Digital still cameras
