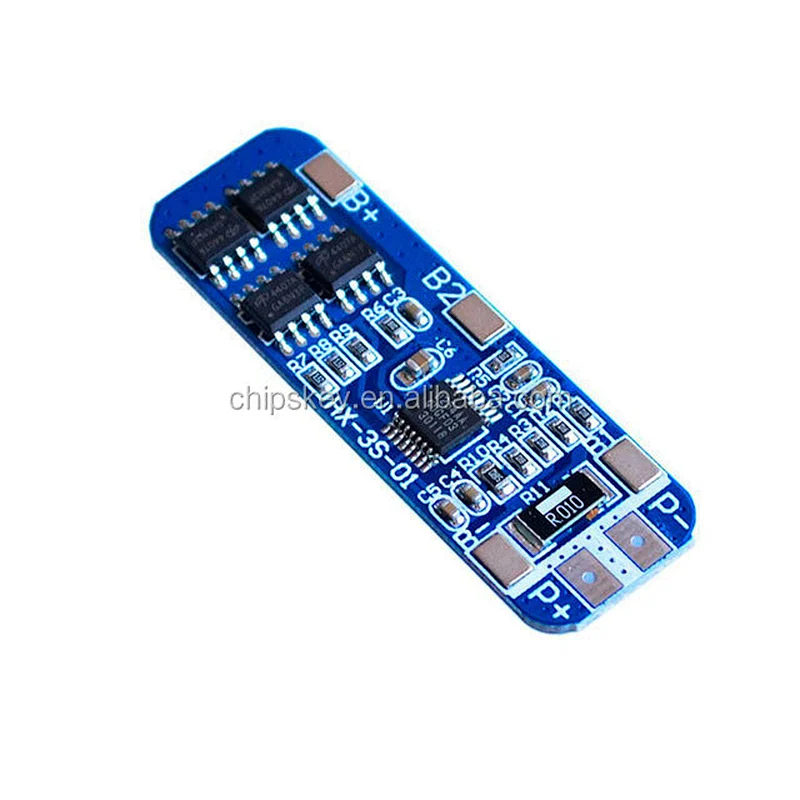

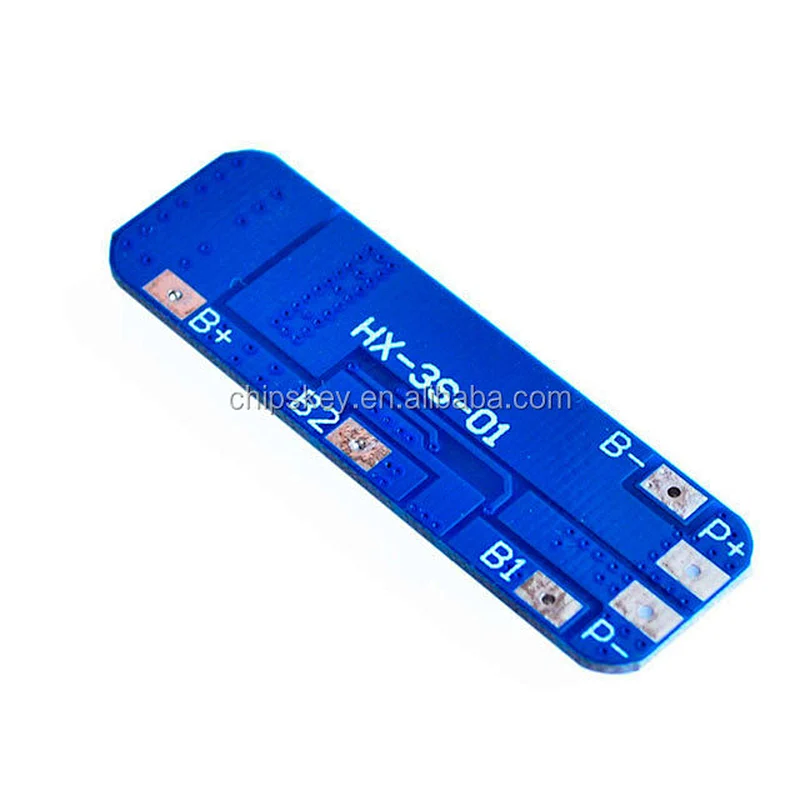

50 x 21 x 1 mm 10A 3 18650 Li ion lithium battery cell
"product description
50x21x1mm 10A BMS Charger Protector for 3-Cell 18650 Li-Ion Lithium Battery Price
characteristic:
Size: 50x21x1mm
The maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V? 0.05V
Over discharge detection voltage: 2.3-3.0V? 0.05V
Maximum operating current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40 ~ 50
℃ Storage temperature: -40 ~ 80 ℃
Quiescent current: <6uA
Resistance:<60m
Life:> 30,000 hours
Short circuit protection.
Overcharge protection.
Over discharge protection.
Overcurrent protection.
Can be applied to a variety of 3.7V lithium batteries.
Small size, light weight.
Make sure the battery pack is safe."
50x21x1mm 10A BMS Charger Protector for 3-Cell 18650 Li-Ion Lithium Battery Price
characteristic:
Size: 50x21x1mm
The maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V? 0.05V
Over discharge detection voltage: 2.3-3.0V? 0.05V
Maximum operating current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40 ~ 50
℃ Storage temperature: -40 ~ 80 ℃
Quiescent current: <6uA
Resistance:<60m
Life:> 30,000 hours
Short circuit protection.
Overcharge protection.
Over discharge protection.
Overcurrent protection.
Can be applied to a variety of 3.7V lithium batteries.
Small size, light weight.
Make sure the battery pack is safe."
