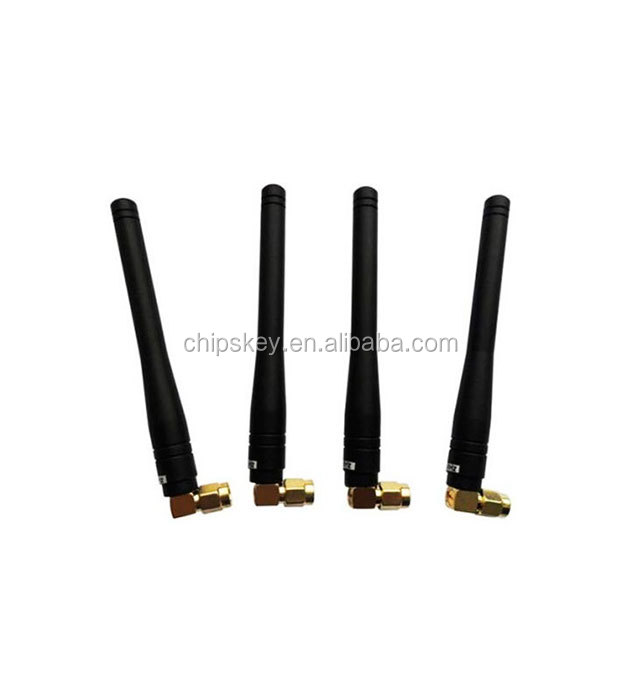

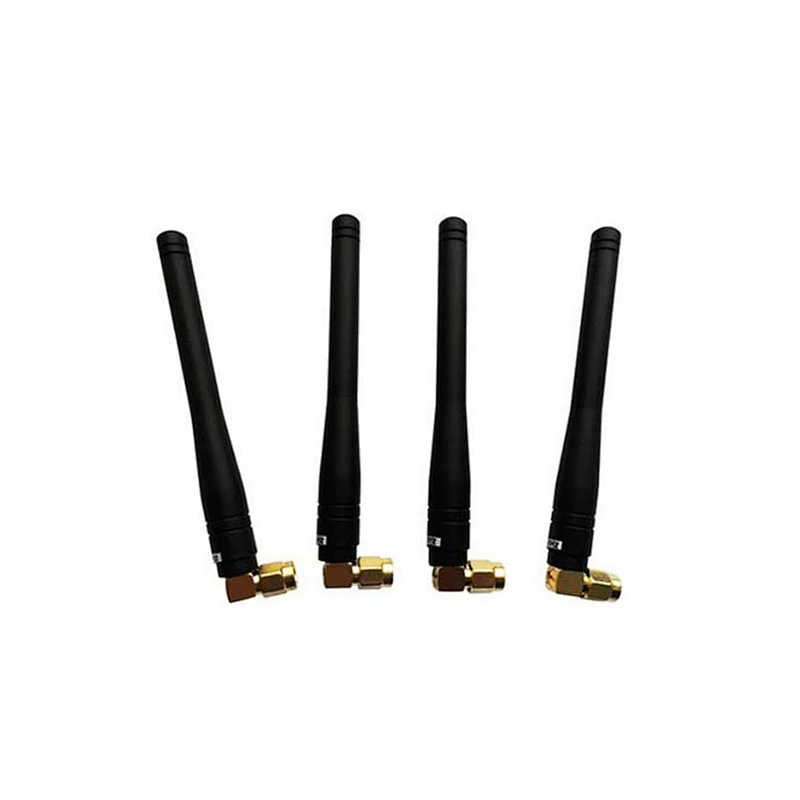

433MHz Elbow rod antenna SW433 WT100

• Model Number:25041, 25041
• Place of Origin:Guangdong, China
• Brand Name:Chipskey, Chipskey
• Part number:28135
• Brand:chipskey

"433MHz Elbow rod antenna SW433-WT100
product description
SW433-WT100 is a right angle rubber antenna. It is designed for wireless communication system (433MHz) designed for a dedicated antenna, with a good standing wave ratio, smart structure, easy installation, stable performance, with good anti-vibration and aging capabilities.

feature:
* Frequency Range: 433 MHz (+ / -5)
* VSWR: <= 1.5
* Input impedance: 50Ω
* Maximum power: 10 watts
* Gain: 3.0 dBi
* Polarization: vertical polarization
* Height: 100 mm
 wire: None
* Interface: SMA-JW"
