- Model Number:9054
- Type:integrated circuit, Drive IC
- Place of Origin:Guangdong, China, CN
- Brand Name:Chipskey
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

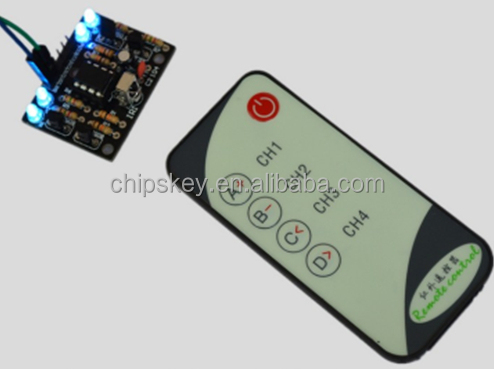

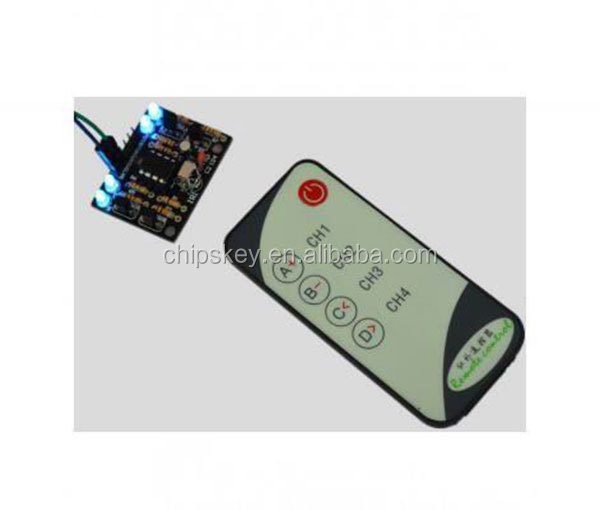

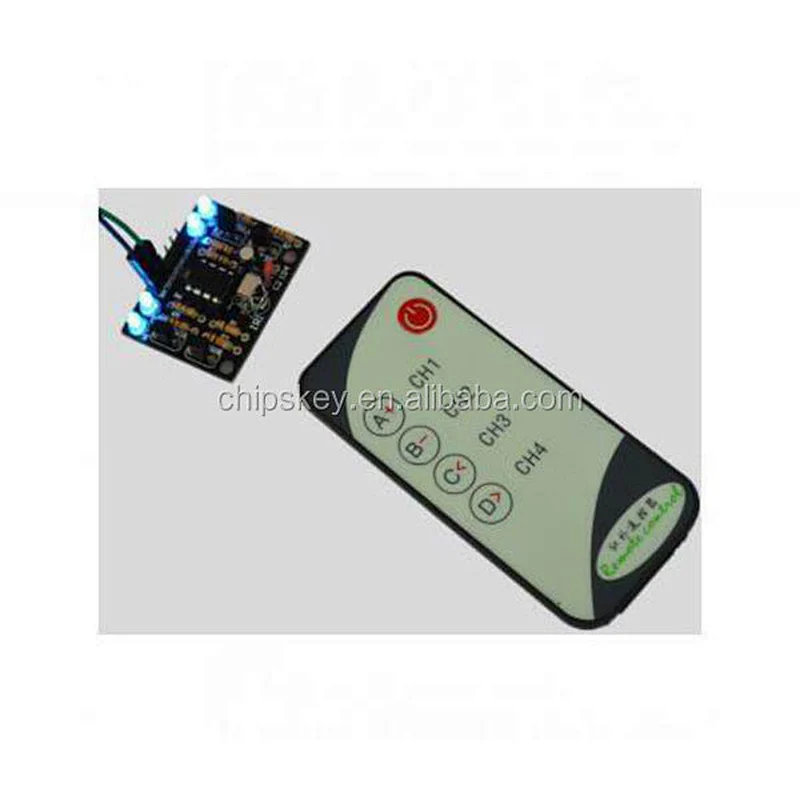

4-Channels IR receiver module
This module is a single-chip decoder to receive, such as inconsistent with the restaurant encoded key value coding remote control , the receiver module key will not be controlled
Product Name: 4-way jog infrared remote control receiver module ( jog type )
Receive board size : L3.8XW2.9cm with three mounting holes ( easy fixed )
:3-5V voltage range
Receiving distance :5- 8 m
Interface Output : VCC ( positive power ) GND ( negative power ) OUT1, OUT2, OUT3, OUT4 representing four output interface
Indicator : H1, H2, H3, H4 representing OUT1, OUT2, OUT3, OUT4 four outputs of the indicator
5 keys on the remote control as follows :
a, the power output of the receiver module default is low ; press the 5 key on the top right corner of the remote control buttons ( power button ) , receiver module OUT1, OUT2, OUT3, OUT4 while high output, while the corresponding indicator H1, H2, H3, H4 lights ; immediately release the key output goes low ; indicator goes
b, press the CH1 button on the remote control , OUT1 output goes high , while H1 indicator lights ; send button to open the output goes low ; light goes out ;
c, press the button on the remote control CH2 , OUT2 output goes high , while H2 indicator lights ; release the key output goes low ; light goes out ;
d, press the button on the remote control CH3 , OUT3 output goes high , while H3 indicator lights ; release the key output goes low ; light goes out ;
e, press the button on the remote control CH4 , OUT4 output goes high , while H4 indicator lights ; send open output goes low ; light goes out ;
