- Model Number:3G USB Module
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Weight:12KG
- Size:660*270*110mm
3G USB Module
Product Information
Name: 3G Module
Property: Software open source, Hardware open, Production materials closed
Owner: CubieTech Limited
Target: Developer, Geek, Maker, Scholar…and finished products Manufacturer
Product Introduction

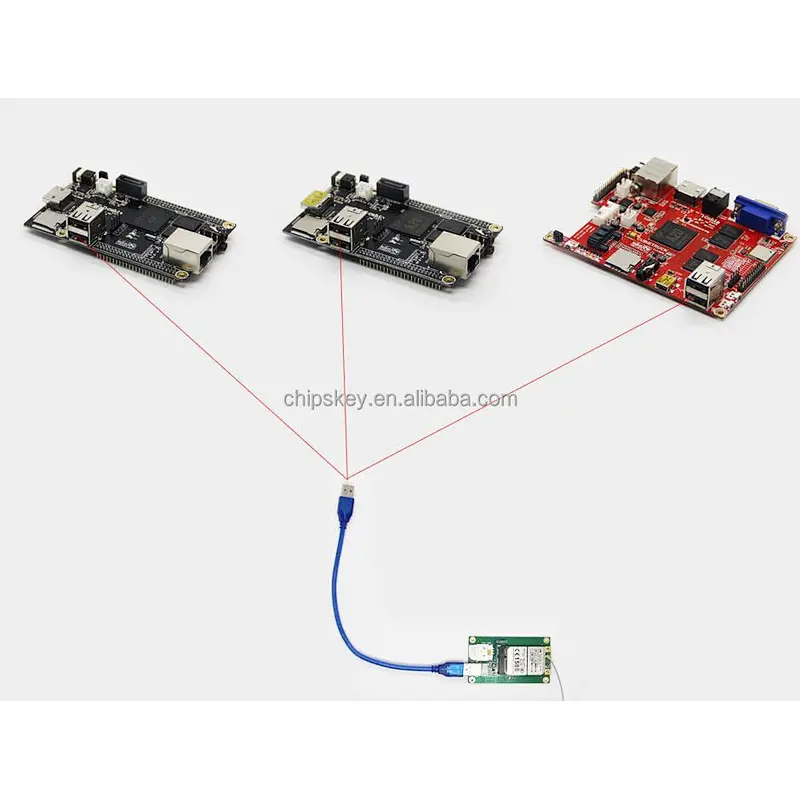

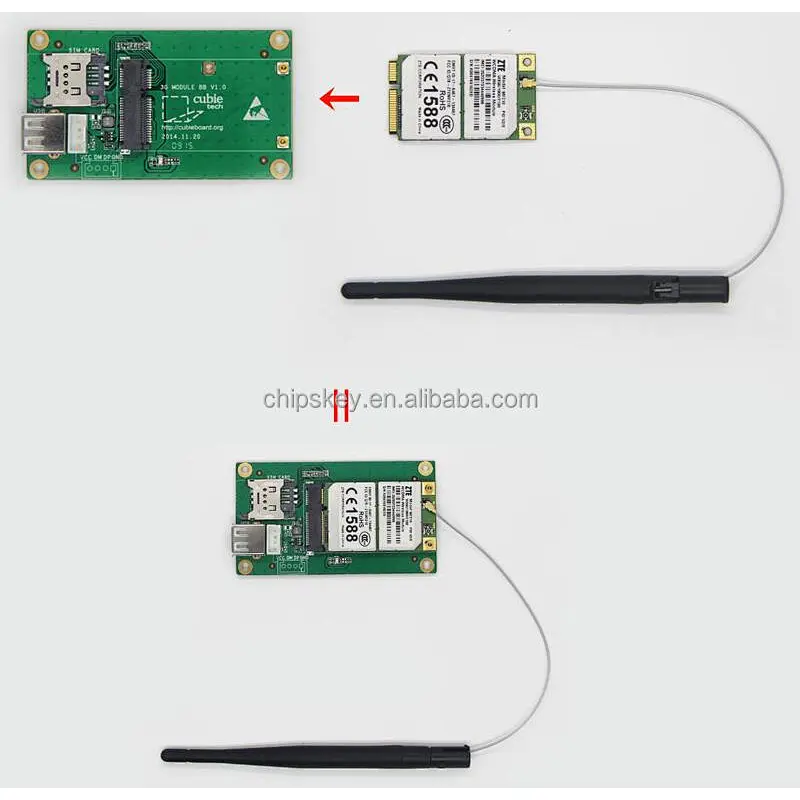

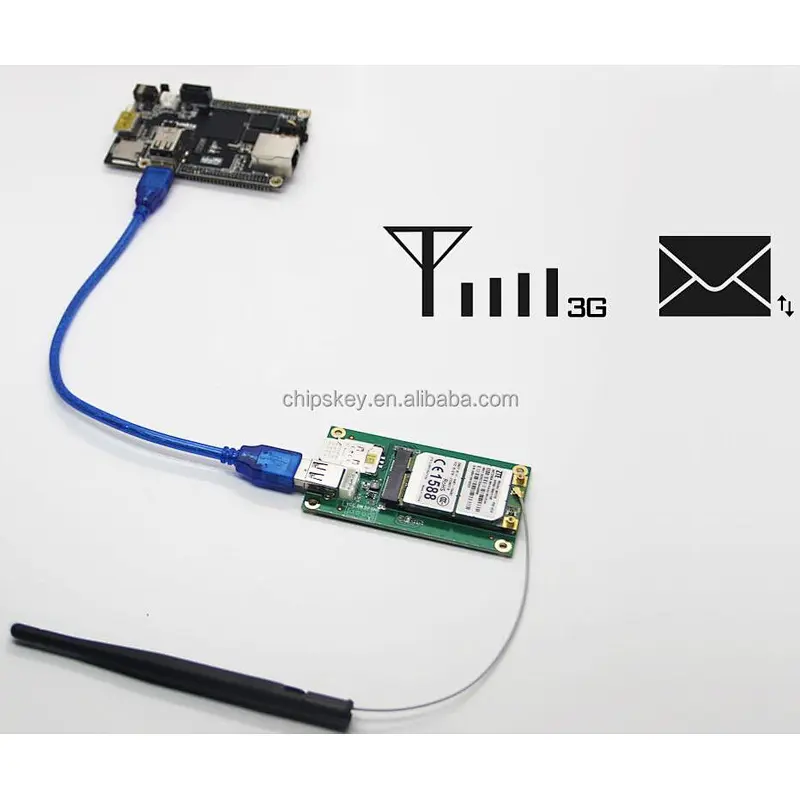

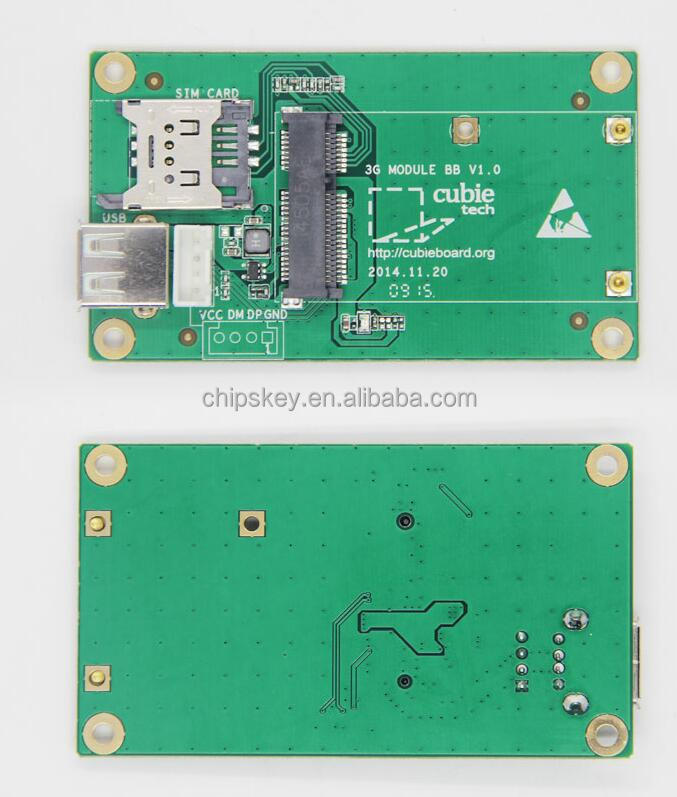

3G module is a 3G module based on MF210 mini PCIE card that adopts standard. It’s a USB interface add-on board for Cubieboards, and can bring data connection service for it. Because of its easy to use and easy to assembly, this board can used in development together with Cubieboards and also can be used in finished products.

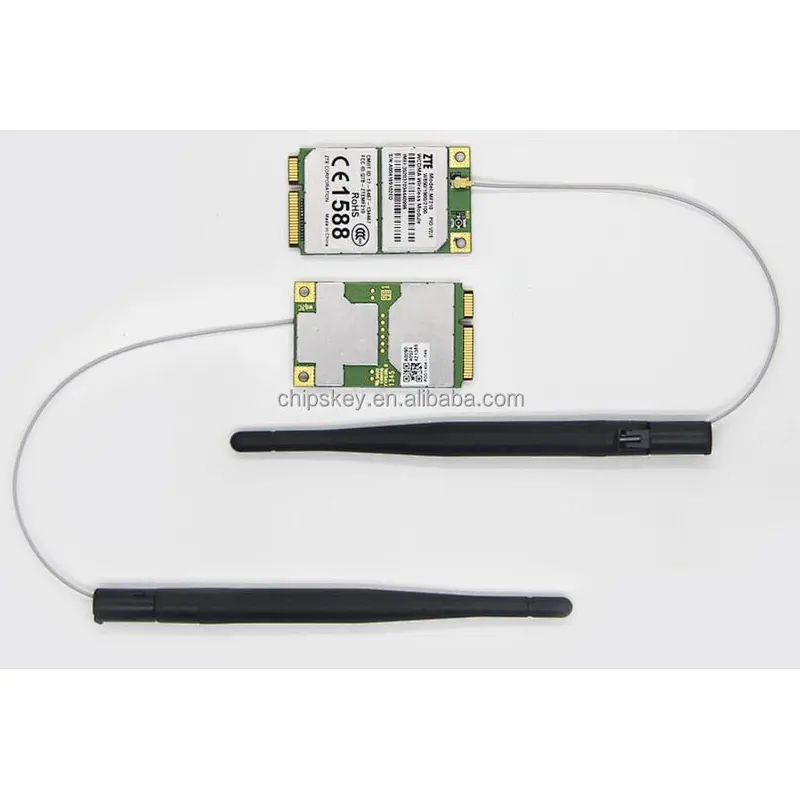

MF210 can support GSM, EDGE, and network, and the transmit speed is HSDPA 7.2Mb/s, HSUPA 5.75Mb/s at maximum. It supports 2100, 1900, 1800, 900, 850MHz Frequency Band. More MF210 details refer to this link.

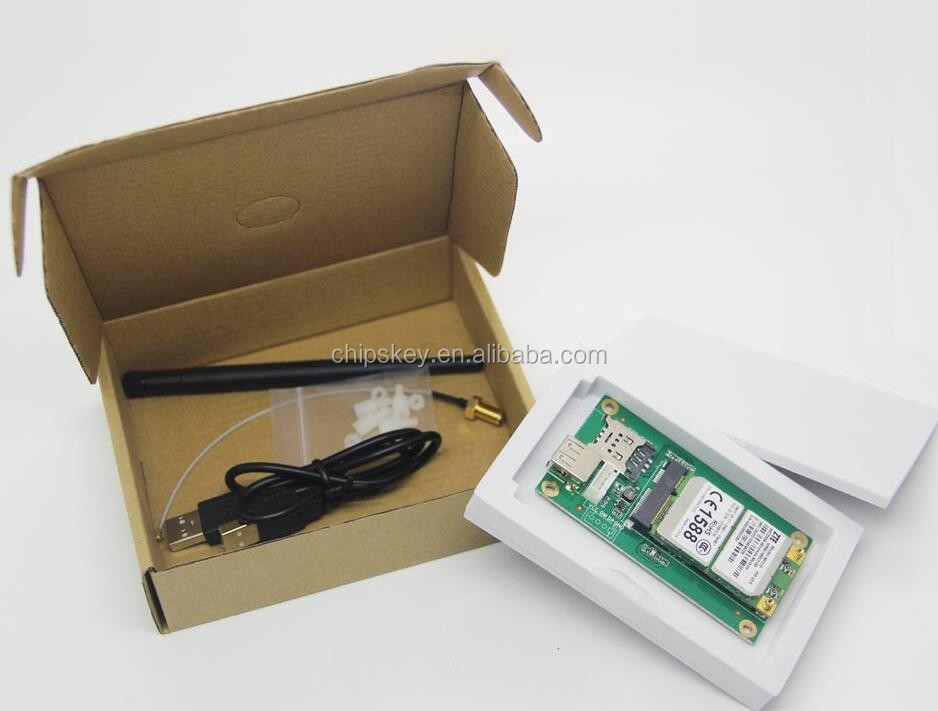

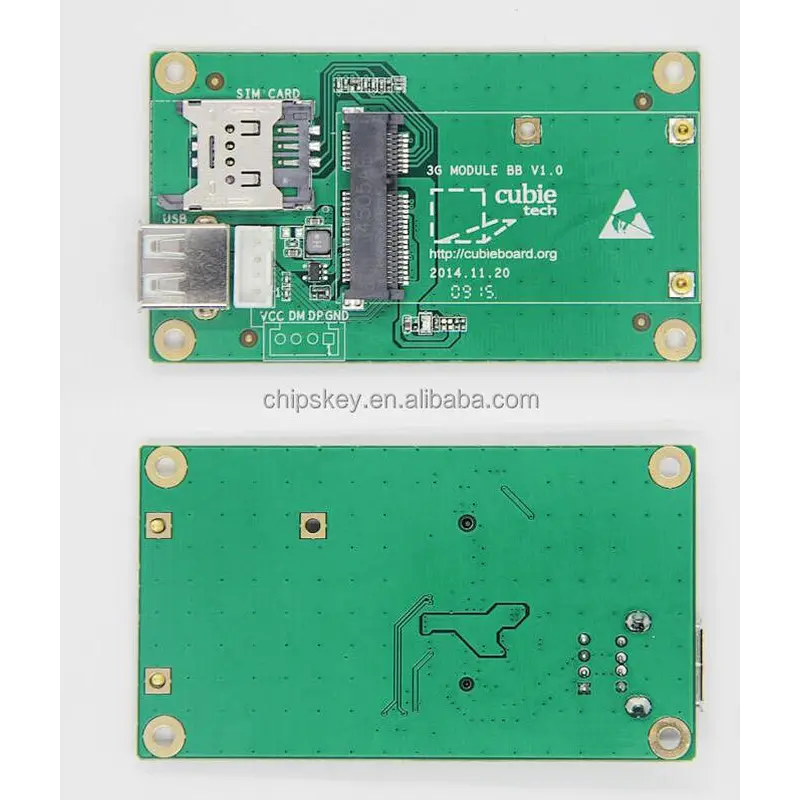

In the shipping package, we supply the USB cable and the external antenna to obtain the best signal. If you don’t like the USB cable and antenna in finished products, you can do some modifications. The USB signal can use header pins to connect and the antenna also can be replaced after some signal matching and test.
Product Features
· Sotution: MF210 from ZTE Welink
· USB: USB Female Type A
· SIM: Standard SIM card

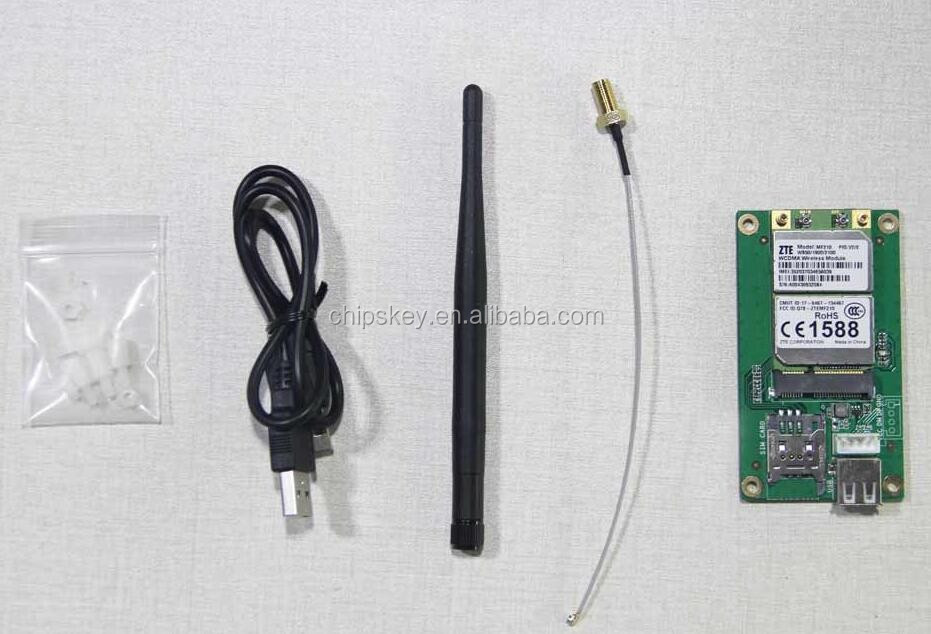

· Contents: MF210, Converter board, USB cable, Antenna, packaging

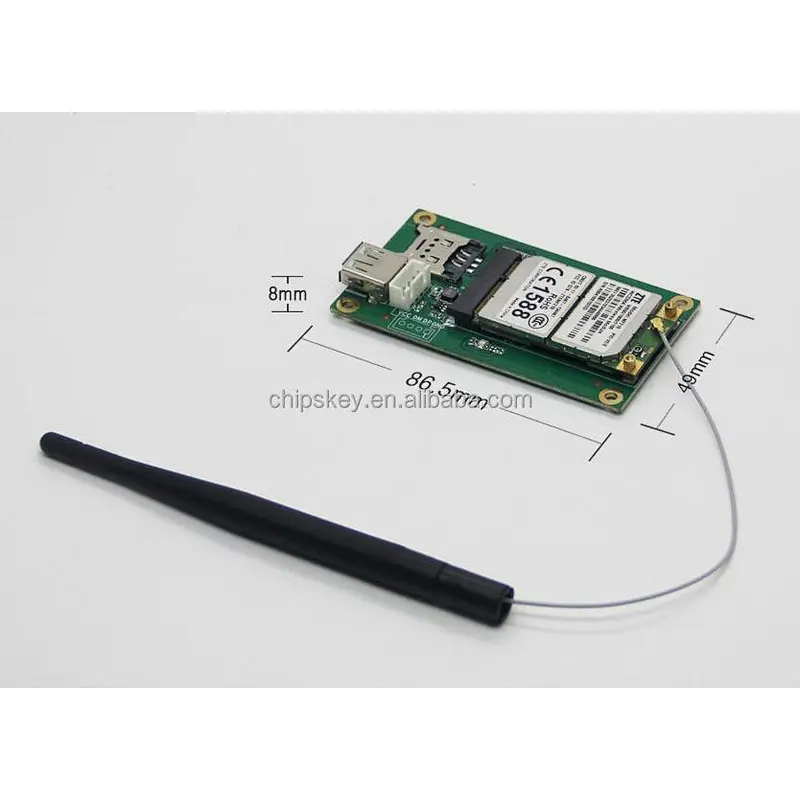

· Size: 86.5mm*49mm*8mm
Other Specification
Operating Temperature: -25℃~60℃
Environment Friendly: RoHS
Radio Standard: Fcc & CE compatible
Packing Weight: 100g
