3 In 1 time temperature voltage 0.56
3 In 1 time temperature voltage 0.56

3 In 1 time temperature voltage 0.56" Digital Panel DC 200V LED Digital Meter

Model NO.
6095
Minimum order quantity
1 piece
Country of Origin
HK/Shenzhen
Quantity:
  • Model Number:6095
  • Type:integrated circuit, Drive IC
  • Place of Origin:Guangdong, China
  • Brand Name:Chipskey
  • Part number:3 In 1 time temperature voltage 0.56 Digital Panel
  • Lead Free Status:Lead free / RoHS Compliant
  • Condition:Brand New With Original Manufacturer
  • Packaging:Reel Tray Tube
  • Maximum Operating Temperature:-40C ~ 125C
  • Warranty:360days
  • Dissipation Power:1W-6W
  • Application:Watch
  • Supply Voltage:1.5V-6V

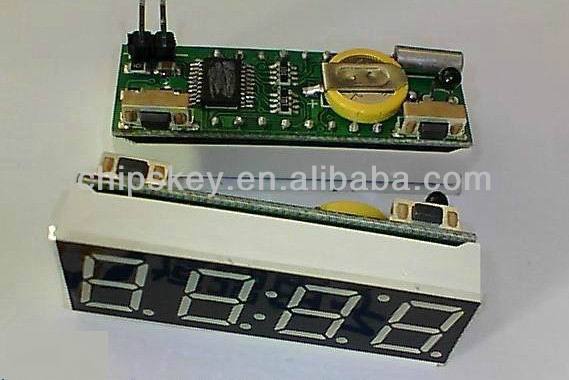

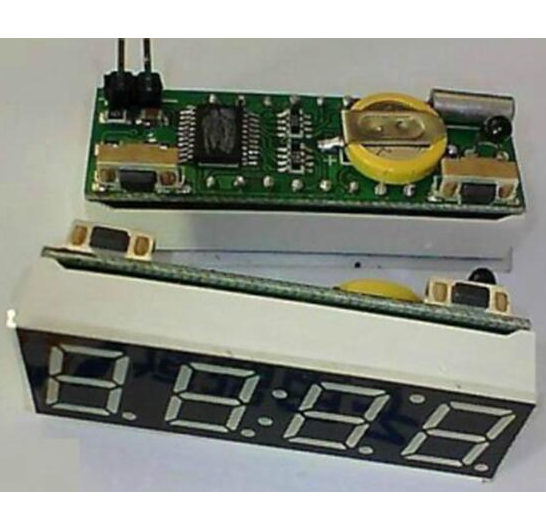

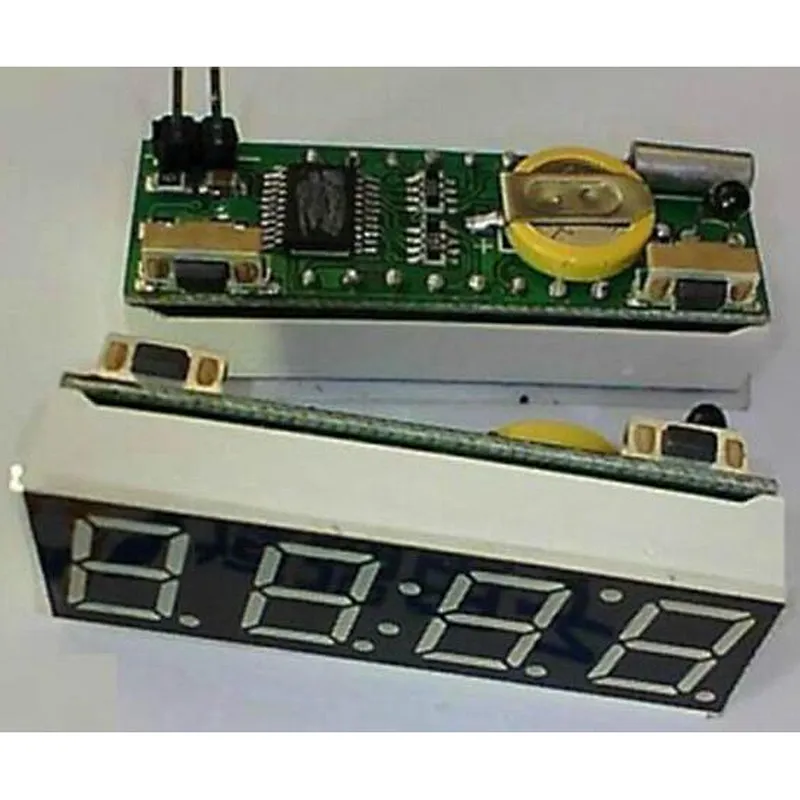

 3 In 1 time temperature voltage 0.56"Digital Panel DC 200V LED Digital Meter













  • LED digital voltage meter
  • Car voltage meter
  • The size of the volume of goods have SMD process, reversed does not burn, the numbers do not jitter,Display Size: 61mm*29mm*17.5mm, Installation dimensions: 58mm*26mm*17.5mm, Power supply: 7-30V, bright LED digital tube, red, blue, green and yellow colors optional, Four display modes: ¢Ù only time ¢Ú Show only temperature ¢Û only display the voltage ¢Ü time temperature voltage alternating display
  • Voltage: Voltage Range: 0-33v, error of ± 0.02V, Range: 0-200v, error of ± 0.1V,Power 7-30v. Two kinds of ranges





Product Description





Features:
Temperature -50 ¡æ ~ 125 ¡æ, the United States imported DS18B20 probe, 1 meter extension cord, waterproof.
Accuracy of 0.0625 without calibration!
Time 24-hour clock, the clock chip American original, precision 15ppm, power and memory function, accurate
travel time. The battery backup is available 3-4 years
Color just as the picture show
Instructions for use:
After power-on, multi-function meter to enter time display mode: display the current time

There are two buttons:
Buttons One: Mode key
Short press to select the clock, seconds, voltage, temperature display mode
Enter the time - voltage temperature cycling of significant modes --- Press show ALL interval of 5 seconds. Again
the button a short press to exit this mode
Buttons Two: Tune when key
Short press to adjust the hours, minutes (flashing), an adjustment buttons. Short press button two again to exit
the adjustment mode

Note: Adjust the"points", after exiting clock stop and go, short press the button the get-go
Notice:
1. Default one meter, triple surface temperature sensor line
2. Different colors, different prices to shoot what color, the company issued what color
There are special requirements please Remarks. If no notes, we will randomly shipped
Package Included:
1 x 0.56"Digital Panel 3 in 8 meter
