- Model Number:11B157
- Type:RF/Wireless Development Boards and Kits
- Place of Origin:China, CN
- Category:IC
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C

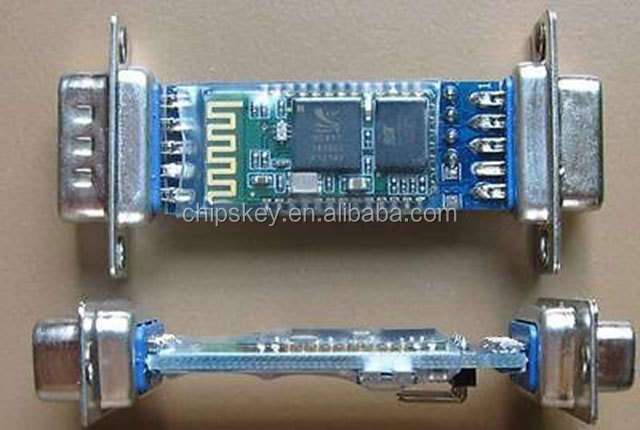

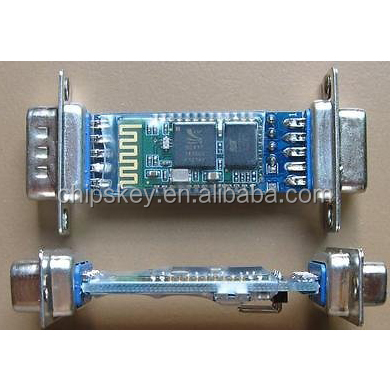

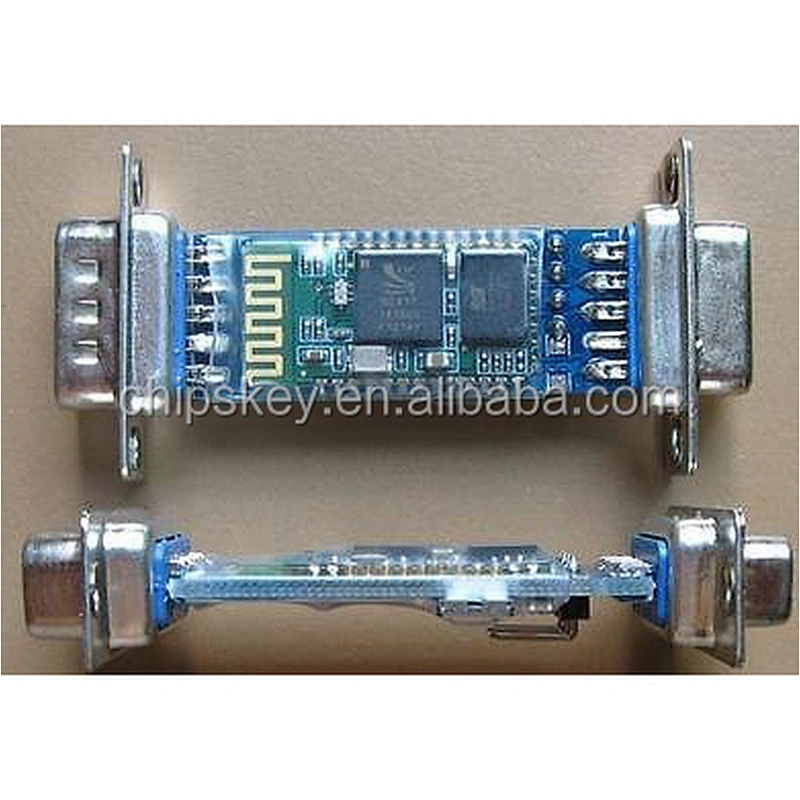

3.6V-6V DB9 Male Female RS232 Wireless HC-06 Module Slave Serial Port
1, the module type for the Department of commitment from the HC06 module
2, led pin indicates the status of the connection, the output pulse indicates no connectivity, high output indicates that is connected and open ports
3, the power supply voltage 3.3V, when unpaired current of about 30mA, 10mA after about pairing, the absolute prohibition of reverse power! Power absolute prohibition exceeds 3.6V!
4, the interface level 3.3V, can be directly connected to various SCM (51, AVR, PIC, MSP430, etc.), 5V microcontroller can also be directly connected, it can not pass without MAX232 MAX232!
5, open to the effective distance of 10 meters, over 10 meters are possible, but do not do this to ensure the quality of the connection distance
6, after the pair when full-duplex serial port to use, without having to know any protocol, but only supports 8 data bits, 1 stop bit, no parity communication format, which is the most common form of communication, not support other formats .
7. Set up a connection when not support setting the baud rate, name, passkey through AT commands, power-down save parameter settings. After the connection is automatically switched to transparent mode
8, small size (2.7cm * 1.3cm), factory chip production, quality assurance patch.
9, the link from the machine, computer, with function from the host with a variety of functions, most phones, PDA, PSP and other intelligent terminal pairing between slaves can not be paired.
