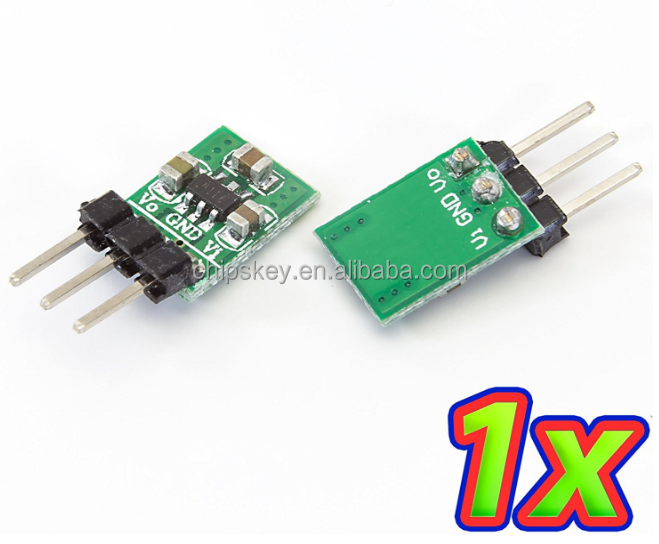

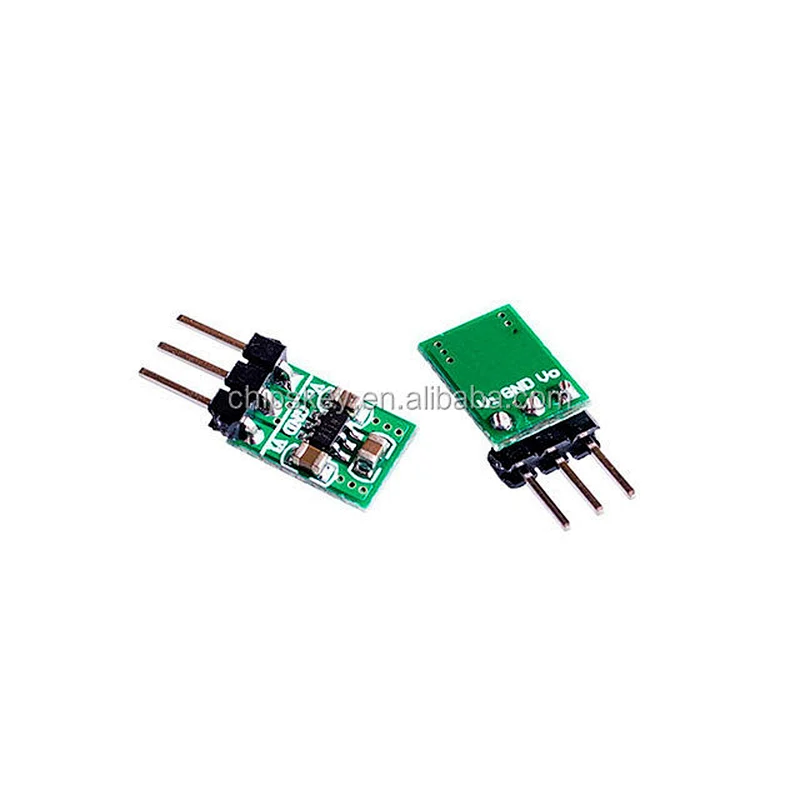

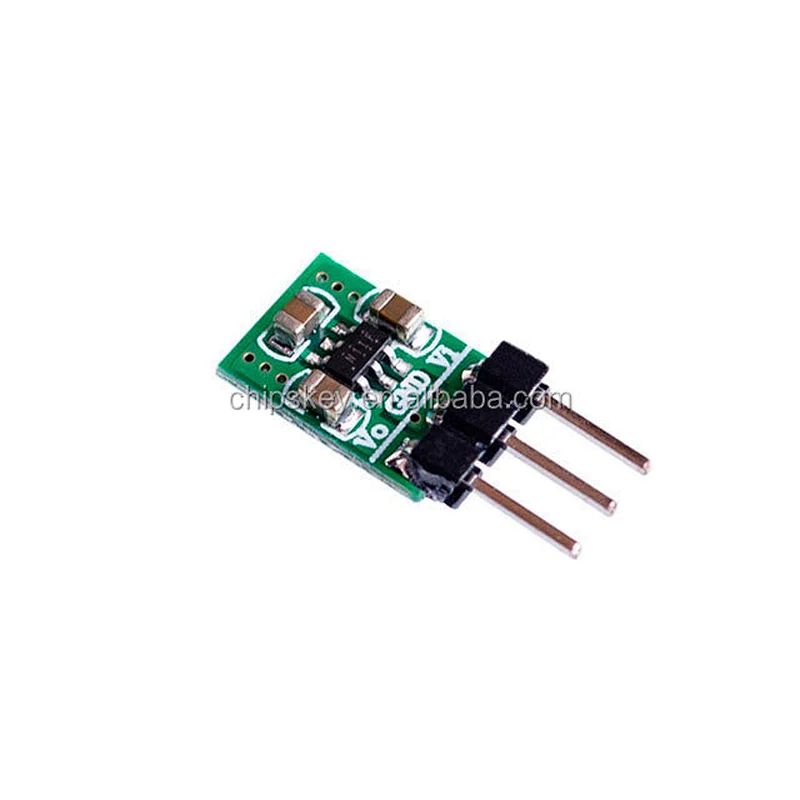

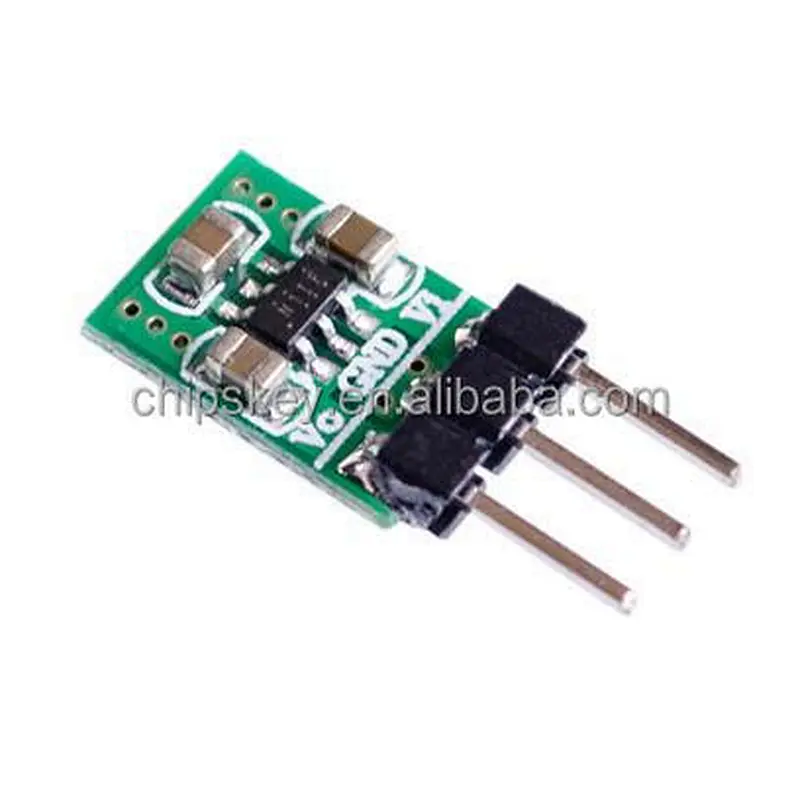

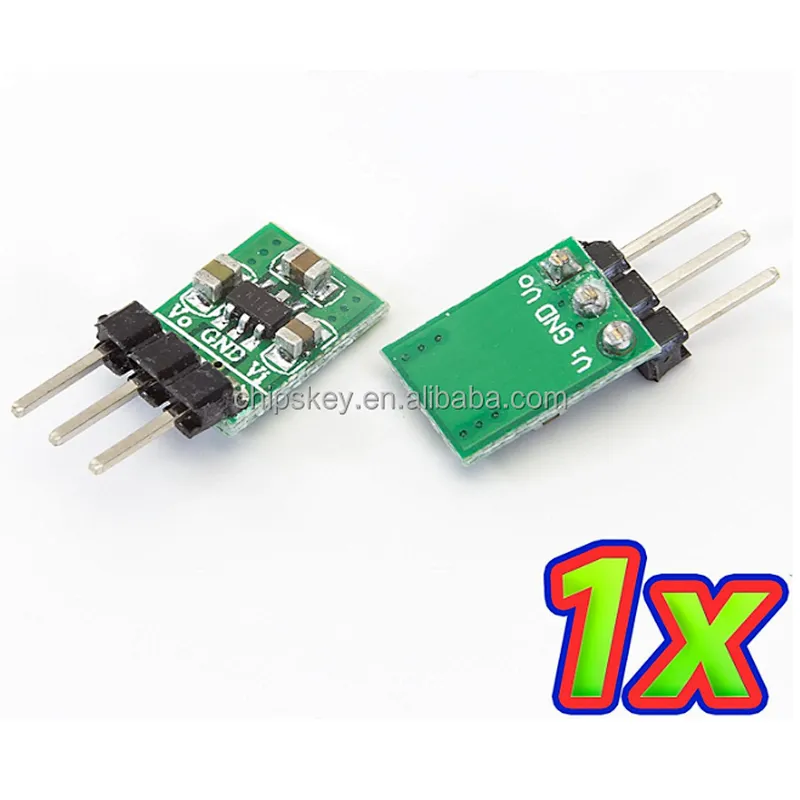

Product Name: 2 in 1 DC DC Step-Down & Step-Up Converter 1.8V-5V 3V 3.7V to 3.3V Power Modul
Module No.: CE021
Packing list:
1 PCS 100MA 2 in 1 DC-DC Step-Down & Step-Up Converter 1.8V-5V to 3.3V module
This is a micro-power(only 150MA) DC-DC Step-Down & Step-Up Converter module
Description:

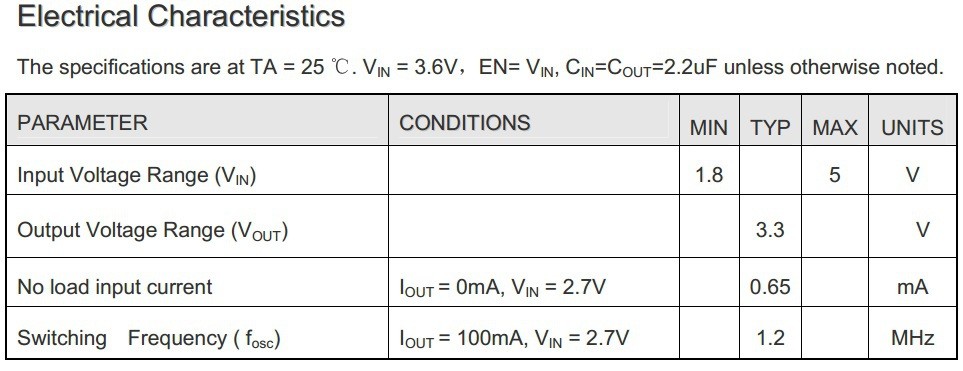

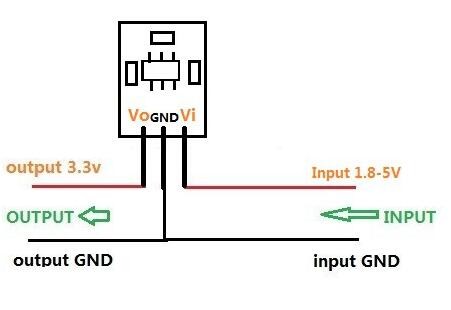

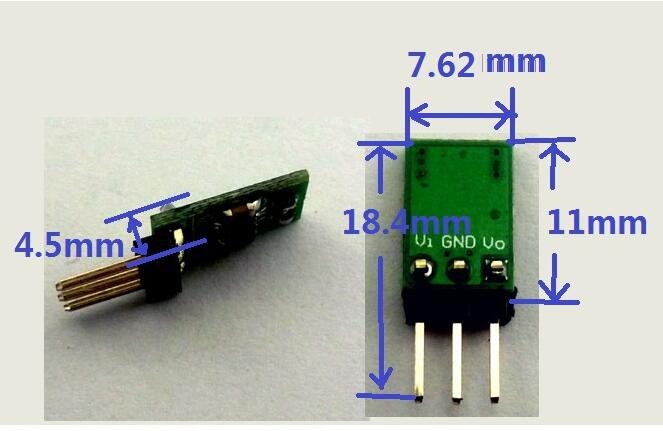

Low Noise, Regulated Charge Pump DC/DC Converter 2 in 1 DC-DC Step-Down & Step-Up Converter module Fixed 3.3V+-4% Output Voltage Input Range: 1.8~5V Long time maximum output current 100mA Short time maximum output current 150mA working frequency 1.2MHz. Short-Circuit Protection No load input current : 0.65mA 2.54mm pin pitch, Arduinos Breadboard MCU Development Board friendly Excluding Pin Size 11mm x 7.62mm x 4.5mm(small)
Weight : about 0.5g(Very very light)
Attention :
This is a DC-DC voltage converter module,Must be noted when using:

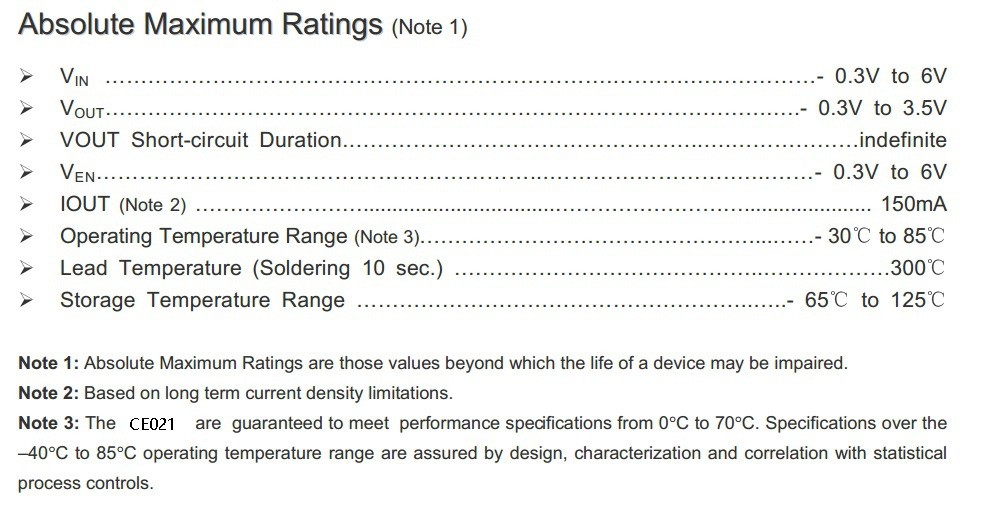

1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself
