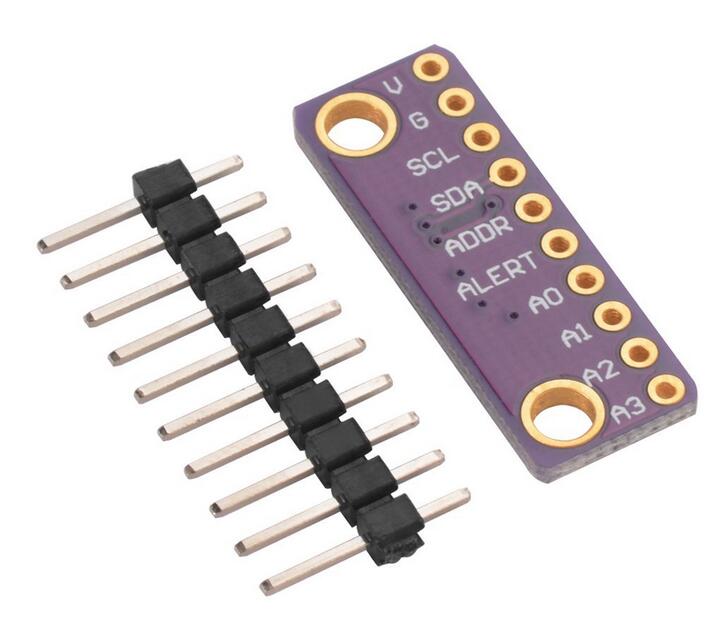

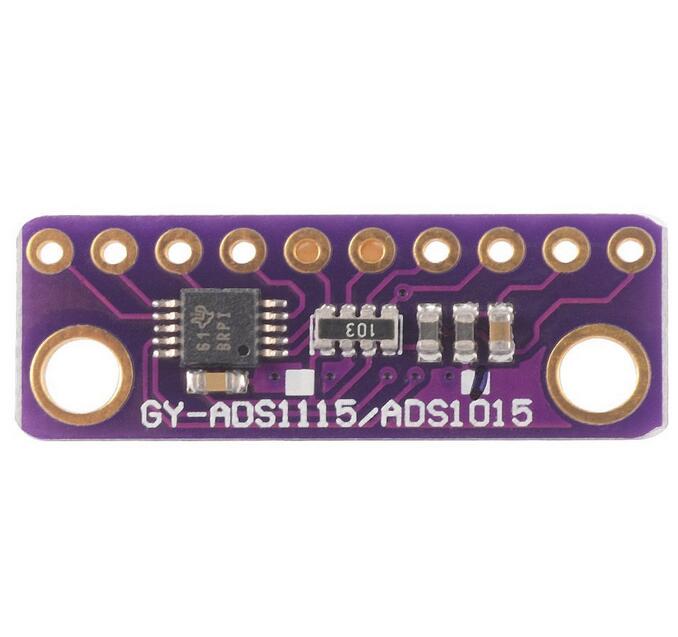

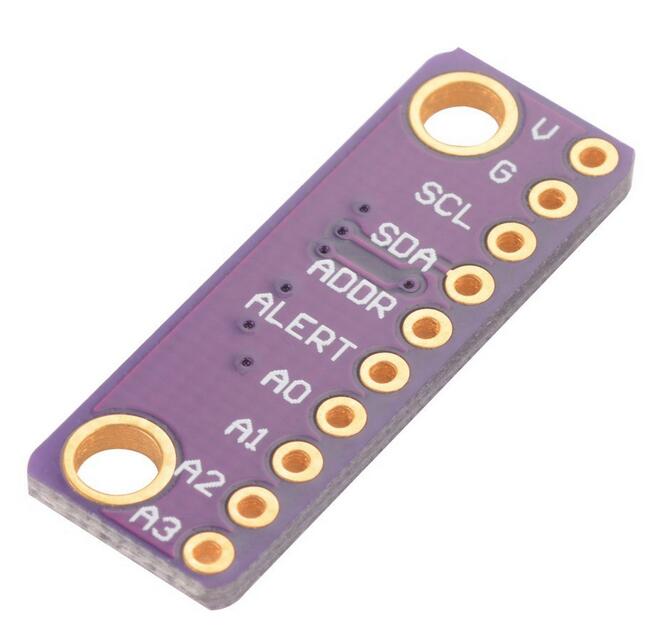

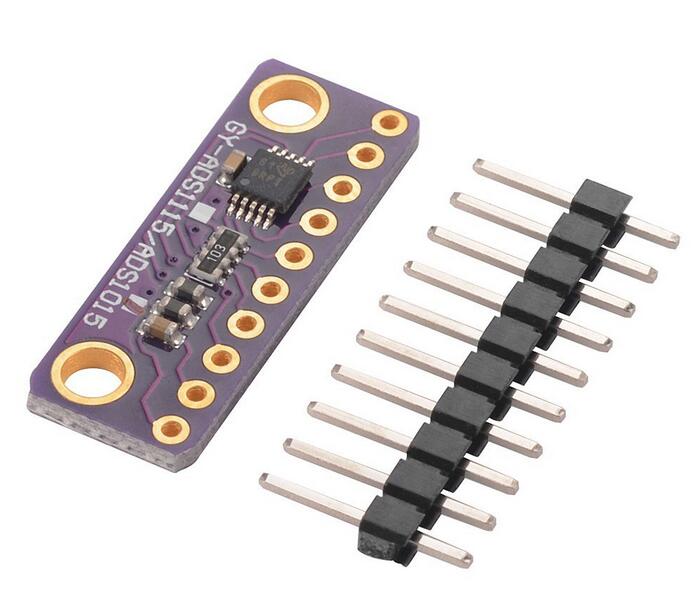

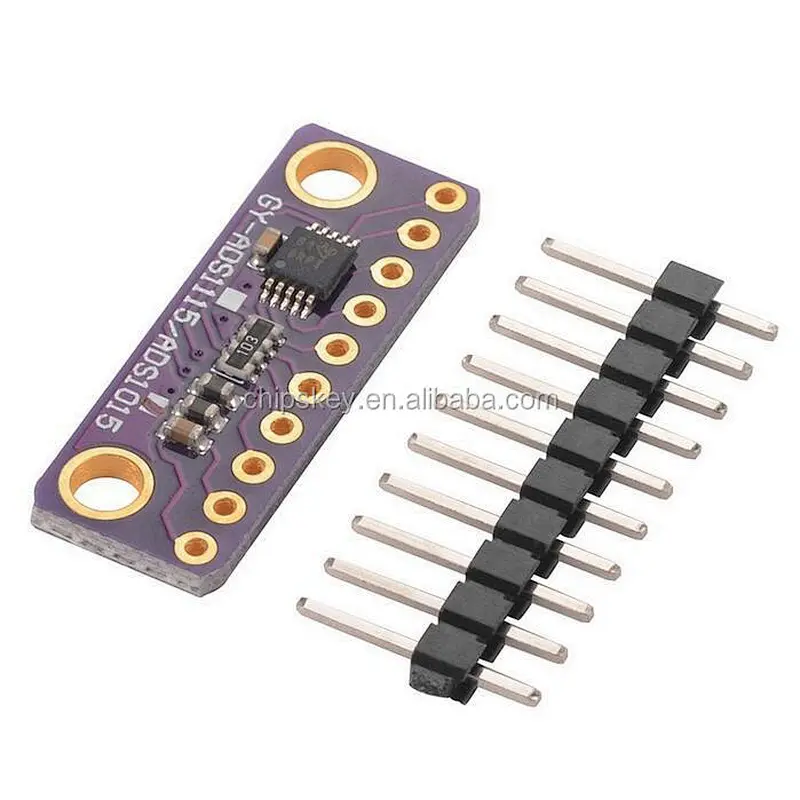

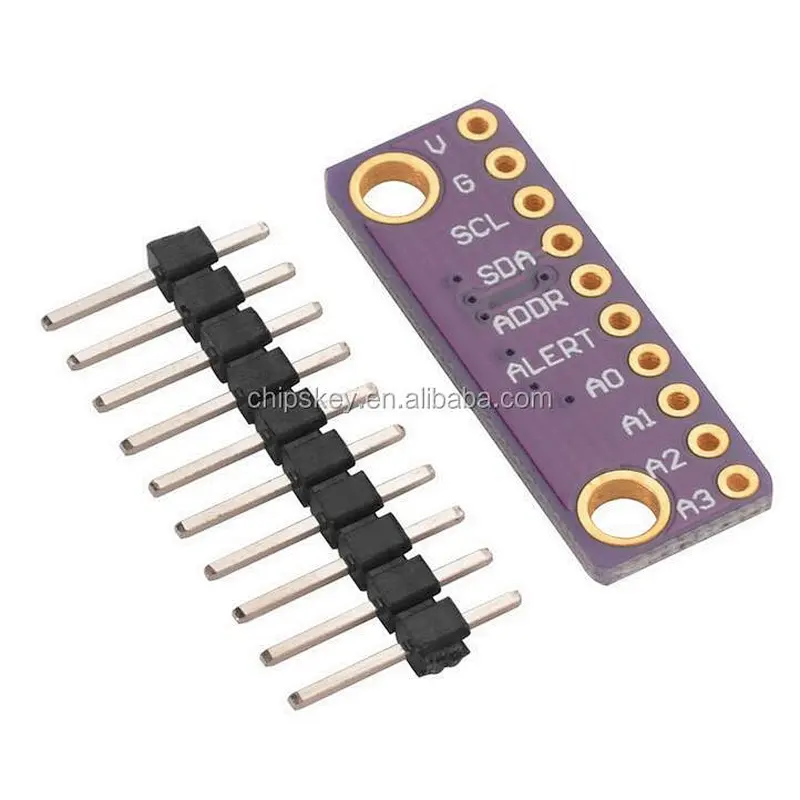

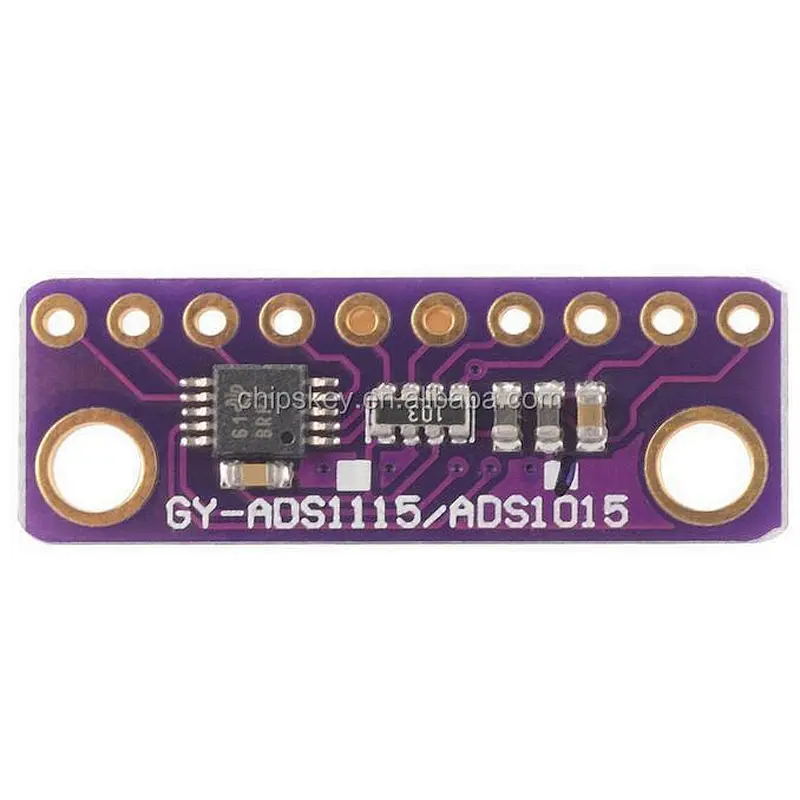

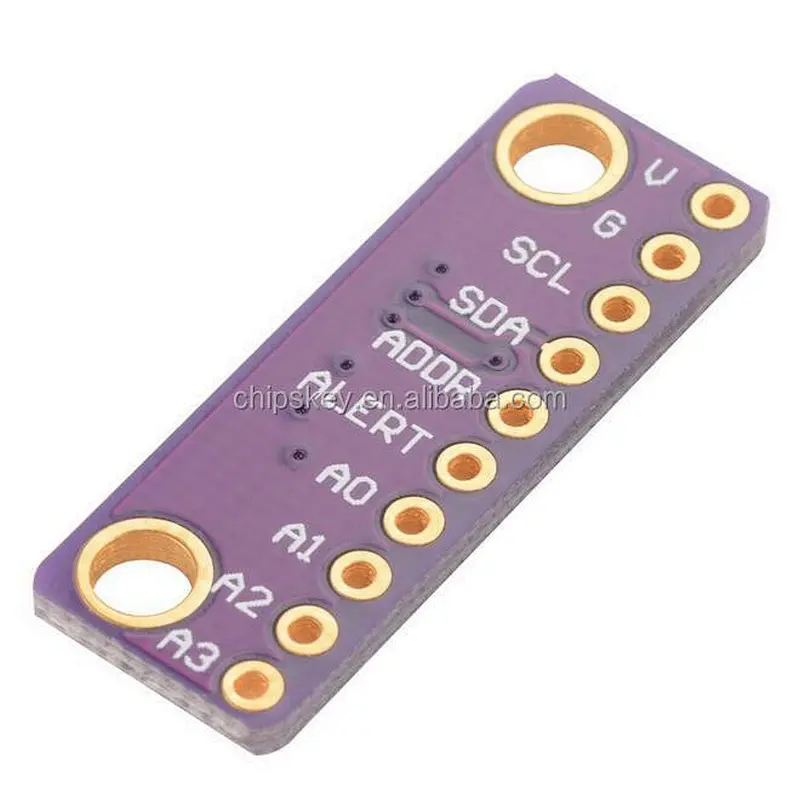

16Bit I2C ADS1115 Module ADC 4 channel

• Model Number:29113
• Type:Data Conversion Development Boards and Kits
• Place of Origin:China
• SKU:29113
• Delivery Time:24hours
• Quality:New&Original
• Application:Great for DIY project

16Bit I2C ADS1115 Module ADC 4 channel

Specifications:
Wide supply range: 2.0V to 5.5V
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
Programmable data rate: 128 to 3300 Samples/Second
Internal low-drift voltage reference
Internal oscillator
Internal PGA
I2C interface: 4-Pin-Selectable Addresses
Four single-ended or two differential inputs
Programmable comparator
This board chip uses I2C 7-bit addresses between 0x48-0x4B
PCB size: 2.55 x 0.90cm / 1.00""x 0.35""(L*W)
